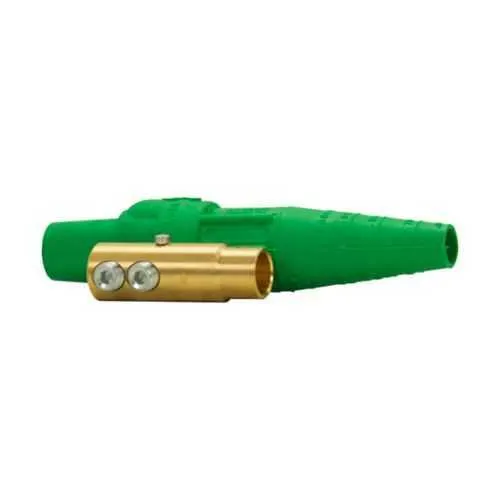

Eaton E1016-8392 Cam-Lok plug - 600 Vac/dc, 3R rating
Part Number: E1016-8392
Quick Summary
Eaton E1016-8392 Cam-Lok plug is a high-current connector for industrial power distribution in demanding environments. This design addresses the challenge of loose, moisture-prone terminations that trigger downtime and safety concerns. Certified for NEC/CEC compliance, with a 3R enclosure rating and suitability for ordinary/non-hazardous locations, it delivers reliable performance across diverse sites. With 2/0-4/0 AWG compatibility and brass contacts, it ensures efficient, secure installations while reducing maintenance costs and downtime for your power distribution infrastructure.
Product Information
Extended Description
E1016-8392 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, White, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8392
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275131928
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
Eaton Specification Sheet - E1016-8392
Feature: Up to 400 A continuous rating. Business Impact: Enables reliable handling of heavy loads without overheating, reducing unnecessary parallel connections. Application: Large motors and welding equipment in manufacturing lines. Feature: Cable size compatibility 2/0-4/0 AWG. Business Impact: Broad cable compatibility minimizes rework and stock requirements. Application: Power distribution to multi-motor drives and heavy-duty machinery. Feature: Voltage rating 600 Vac/dc. Business Impact: Supports multi-voltage equipment with a single connector family, simplifying procurement and training. Application: Industrial control panels and outdoor equipment. Feature: Material Thermoplastic Elastomer (TPE), non-vulcanized. Business Impact: Durable, resilient housing with weather resistance reduces field failures. Application: Outdoor installations and workshop environments. Feature: Connection type Double set screw. Business Impact: Provides a secure, vibration-resistant connection that maintains continuity under shock and vibration. Application: Conveyors, fluid pumps, and high-vibration rigs. Feature: Contact material Brass. Business Impact: Low resistance and long life improve overall efficiency and reduce contact wear. Application: High-current power paths in harsh environments. Feature: NEMA Rating 3R, Area Classification Ordinary/Non-Hazardous Locations. Business Impact: Weather-resistant, compliant performance across indoor/outdoor sites without special enclosures. Application: Outdoor control cabinets and field installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8392
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8392?
Enquire Now
FAQs
Yes. The E1016-8392 is specifically designed to accommodate 2/0-4/0 AWG conductors and uses a double-set-screw connection to secure the cable, ensuring a reliable, vibration-resistant termination.
The connector is rated for up to 400 A continuous current and supports 600 Vac/dc, suitable for high-power industrial equipment and mixed-voltage installations.
It is intended for ordinary/non-hazardous locations with NEMA 3R protection, making it suitable for outdoor and rugged industrial settings where moisture and vibration are present.
The E1016-8392 adheres to NEC/CEC standards, with an area classification suitable for Ordinary/Non-Hazardous Locations, supporting compliant system design.
The combination of brass contacts, a durable TPE housing, non-vulcanized construction, and a double set screw connection reduces maintenance, improves reliability, and lowers downtime in high-current power networks.
