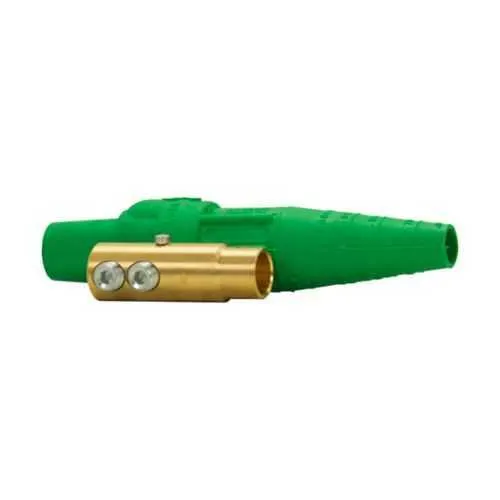

Eaton Crouse-Hinds E1016-8393 Cam-Lok plug - 3R
Part Number: E1016-8393
Quick Summary
Eaton Crouse-Hinds Cam-Lok E1016-8393 plug delivers high-current power connections for industrial equipment. In demanding environments, mismatched connectors or unreliable terminations can trigger downtime and safety concerns. This plug complies with NEC/CEC, carries a NEMA 3R rating, and is suitable for Ordinary/Non-Hazardous locations, giving you regulatory alignment and safe outdoor performance. With a 2/0-4/0 AWG range and up to 400A continuous at 600 Vac/dc, it pairs with Cam-Lok J Series receptacles for reliable, field-ready power distribution in automation and manufacturing settings. The blue, thermoplastic elastomer housing enhances visibility and handling in busy plant environments, supporting efficient maintenance and rapid service turnaround.
Product Information
Extended Description
E1016-8393 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Blue, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8393
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275131935
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
Eaton Specification Sheet - E1016-8393
Cable size compatibility and high-current capability simplify installation and reduce termination time, enabling direct 2/0-4/0 AWG connections without splices. This lowers terminal resistance under heavy load and minimizes voltage drop along feeders, improving overall system efficiency in motors, robotics, and power distribution panels. Rated up to 400A continuous at 600 Vac/dc, the E1016-8393 provides ample headroom for startup surges and peak demand without compromising reliability. Brass contact material offers consistent conductivity and wear resistance, while the Thermoplastic Elastomer (TPE) housing provides durable, non-vulcanized construction that withstands industrial temperature variations. The double set screw termination ensures secure, vibration-resistant connections, reducing maintenance cycles and rework. Color coding in blue aids quick identification in complex panel layouts and multi-circuit installations. Compatibility with Cam-Lok J Series receptacles ensures fast, error-free mating and standardized power distribution. This design also aligns with NEC/CEC requirements and 3R enclosure protection for outdoor or damp environments, delivering compliant performance in ordinary locations while supporting scalable automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8393
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8393?
Enquire Now
FAQs
The E1016-8393 Cam-Lok J Series plug accepts 2/0-4/0 AWG conductors and mates with standard Cam-Lok J Series receptacles. It uses a double-set screw termination with brass contacts for high conductivity, housed in a blue Thermoplastic Elastomer (TPE) body. Rated up to 400A continuous at 600 Vac/dc, this configuration supports secure, field-ready power connections in industrial environments.
Follow the IM 1004 installation instructions for Cam-Lok E1016 and E1018 Double Set Screw assemblies. Terminate 2/0-4/0 AWG conductors using the double-set screws, ensure proper stripping and seating of conductors into brass contacts, and verify correct mating with a Cam-Lok J Series receptacle. After installation, test continuity and insulation performance to confirm a safe 600 Vac/dc rating in service.
Yes. The E1016-8393 is rated for Ordinary/Non-Hazardous locations and carries a NEMA 3R enclosure rating, making it appropriate for outdoor and damp environments where weather resistance is required. It complies with NEC/CEC standards, providing reliable performance in non-hazardous industrial settings while maintaining safe operation in routine outdoor applications.
Key specs include 2/0-4/0 AWG cable size, up to 400A continuous current, 600 Vac/dc voltage rating, brass contact material, and a blue Thermoplastic Elastomer (TPE) housing. The connector is non-vulcanized, uses a double set screw, and is female in gender. These features combine to deliver durable conductivity, secure terminations, and robust field performance in demanding automation environments.
