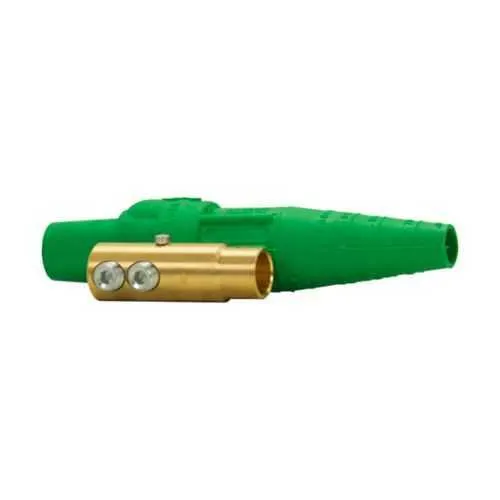

Eaton E1016-8393K Cam-Lok J Series Plug - 3R
Part Number: E1016-8393K
Quick Summary
Eaton E1016-8393K Cam-Lok J Series plug enables high-current power connections for industrial equipment and panel assemblies. It addresses the common pain point of securing rugged, large-conductor links quickly to minimize installation and downtime. Certified for NEC/CEC compliance, it carries a NEMA 3R rating and is classified for Ordinary/Non-Hazardous Locations to support safe operation. Beyond the specs, the blue housing with brass contacts and double set screws delivers reliable current transfer, while 2/0-4/0 AWG compatibility and a 600 Vac/dc rating simplify field wiring and maintenance planning.
Product Information
Extended Description
E1016-8393K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Blue, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8393K
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275870797
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Blue
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
Eaton Specification Sheet - E1016-8393K
Feature: Up to 400A continuous amperage rating → Business Impact: Enables reliable power delivery to large equipment without frequent connector upgrades, reducing downtime and rework → Application: Feeding motors, drives, and heavy machinery within controlled environments. Feature: Cable size compatibility 2/0-4/0 AWG → Business Impact: Supports wide conductor ranges for flexible installation layouts, lowering inventory diversity and conversion costs → Application: Main feeders and high-current branch circuits in industrial facilities. Feature: Double set screw connection → Business Impact: Provides secure, vibration-resistant mating with low contact resistance → Application: Equipment subject to mechanical vibration or rotating loads in manufacturing plants. Feature: Brass contact material → Business Impact: Improves current transfer efficiency and durability, extending service life in harsh conditions → Application: Long-term power interconnections in harsh, industrial environments. Feature: Thermoplastic elastomer (TPE) body, blue color → Business Impact: Durable insulation with quick visual identification, aiding installation accuracy and safety checks → Application: Field terminations and service panels where quick identification matters. Feature: 600 Vac/dc rating and 3R/NEMA compatibility → Business Impact: Meets critical safety and regulatory expectations, reducing compliance risk and enabling outdoor or recessed installations → Application: Equipment rooms, outdoor plants, and hazardous-location-adjacent environments where ordinary/non-hazardous classifications apply.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8393K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8393K?
Enquire Now
FAQs
The E1016-8393K is a female Cam-Lok J Series plug designed to mate with standard Cam-Lok J Series receptacles. With a double set screw connection and brass contacts, it installs using common torque values and fits typical 2/0-4/0 AWG conductors. Ensure the mating receptacle is the correct J Series size and that mounting hardware or panels provide adequate clearance for the 7.18 in length.
Key specs include a continuous amperage rating up to 400A and a voltage rating of 600 Vac/dc. It accommodates 2/0-4/0 AWG cables, uses brass contacts for efficient current transfer, and employs a thermoplastic elastomer (TPE) housing. These attributes support reliable operation in standard industrial environments with basic PPE and safe handling practices.
Yes. The plug is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It carries a NEMA 3R designation, enabling safe outdoor or recessed installations when installed per the manufacturer’s instructions. This makes it appropriate for general industrial plants and non-hazard locations without specialized enclosure requirements.
Double set screws ensure a secure, vibration-resistant connection that minimizes loosening under dynamic loads, reducing contact resistance fluctuations. Brass contacts offer low contact resistance and good conductivity, delivering stable power transfer over time. Together, they support longer service life, fewer maintenance cycles, and lower risk of intermittent failures in demanding environments.
By supporting large conductors (2/0-4/0 AWG) and delivering a robust 400A capability with a 600 Vac/dc rating, this plug reduces the need for frequent connector replacements and simplifies field wiring. The single packaged unit design, brass contacts, and straightforward installation help cut installation time, minimize downtime, and lower lifecycle costs for motor systems and power distribution assemblies.
