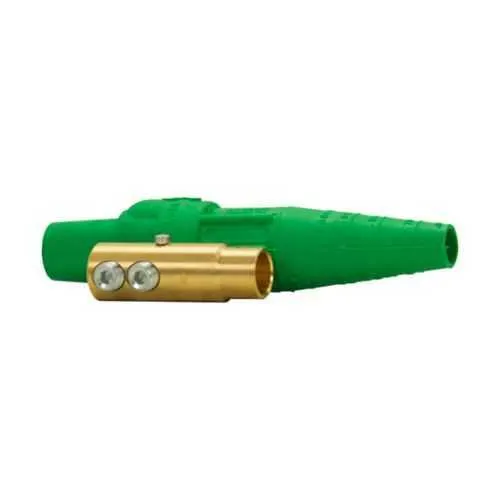

Eaton Crouse-Hinds E1016-8394 Cam-Lok J Plug - 3R
Part Number: E1016-8394
Quick Summary
The Eaton Cam-Lok J Series E1016 plug is a high-current power connector designed for industrial equipment power distribution. In demanding environments, unreliable connections lead to downtime, arcing, and failed safety checks; this plug addresses those pain points with robust construction and proven performance. It carries NEC/CEC compliance and a NEMA 3R rating, making it suitable for outdoor and damp locations. With a 2/0–4/0 AWG conductor range and an up-to 400 A continuous rating at 600 Vac/dc, it delivers reliable power transfer while minimizing maintenance. This solution fits into broader industrial power networks and integrates smoothly with Cam-Lok receptacles, delivering value across manufacturing, mining, and processing facilities.
Product Information
Extended Description
E1016-8394 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Brown, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8394
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275131942
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
Eaton Specification Sheet - E1016-8394
Feature: Up to 400 A continuous amperage rating enables handling of high-load equipment without frequent recabling or plug replacements. Business Impact: Reduces downtime and maintenance costs while supporting peak demand events. Application: Heavy motors, welders, and power distribution panels in factories. Feature: Cable size compatibility of 2/0-4/0 AWG ensures broad conductor options. Business Impact: Improves compatibility with existing feeders and reduces the need for bulky adapters. Application: Plant-wide power distribution and feeder assemblies. Feature: Double set screw connection provides a secure, vibration-resistant interface. Business Impact: Minimizes loose connections and arcing in high-vibration environments. Application: Mobile machinery and outdoor installations. Feature: Brass contact material delivers superior conductivity and durability. Business Impact: Lower contact resistance over service life translates to energy efficiency. Application: Connection interface in industrial connectors. Feature: Thermoplastic elastomer (TPE) housing with non-vulcanized design offers chemical resistance and flexibility. Business Impact: Extends service life in oily or harsh environments while simplifying field maintenance. Application: Marine, mining, and plant floors. Feature: Brown color and female gender align with standard Cam-Lok J Series components for consistent mating. Business Impact: Reduces mis-mating risk and speeds assembly. Application: Receptacle pairing in multi-port systems. Feature: 600 Vac/dc voltage rating supports diverse power systems. Business Impact: Confident operation across AC and DC applications, reducing component counts. Application: Conveyor drives, heat-treat lines, and process control. Feature: NEMA Rating 3R and Ordinary/Non-Hazardous Locations classification inform install planning. Business Impact: Ensures code compliance and appropriate weather exposure management. Application: Outdoor enclosures and non-hazardous plant areas. Feature: Product length/depth of 7.18 in and width 1.5 in with 0.6 lb weight provide compact integration. Business Impact: Easier field routing and lower enclosure fill. Application: Tight spaces in control panels and power racks. Feature: Brass contacts and non-vulcanized contact surfaces support reliable mating and long-term performance. Business Impact: Reduces maintenance cycles and improves overall system availability. Application: High-cycle installations where connectors mate frequently.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8394
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8394?
Enquire Now
FAQs
The E1016-8394 supports 2/0–4/0 AWG conductors. Prepare conductors by following standard stripping guidelines to expose sufficient copper for the brass contacts while avoiding nicking insulation. Use the double set screws to secure each conductor, ensuring solid torque without over-tightening. Proper conductor preparation minimizes resistance and prevents overheating at the contact points.
The E1016-8394 is rated up to 400 A continuous and supports 600 Vac/dc. This makes it ideal for high-current industrial applications such as motor drives, welding power feeds, and heavy equipment power distribution where reliable, high-current, multi-conductor connections are required.
Yes. The plug carries a NEMA 3R rating and is intended for Ordinary/Non-Hazardous locations, which supports outdoor and damp locations. When planning installations, ensure enclosures and mating receptacles align with Cam-Lok J Series specifications and follow appropriate weatherproofing practices.
The E1016-8394 adheres to NEC/CEC standards and carries a NEMA 3R rating. This alignment helps ensure compliance for non-hazardous industrial environments, supports safe outdoor installations, and simplifies regulatory approvals for power distribution equipment in manufacturing and process facilities.
The plug’s double set screws and robust brass contacts deliver secure mating with low resistance and reduced arcing, lowering maintenance needs. The TPE housing resists oils and chemicals, enhancing longevity. Together, these factors reduce downtime, extend service life, and lower long-term ownership costs in high-cycle or outdoor installations.
