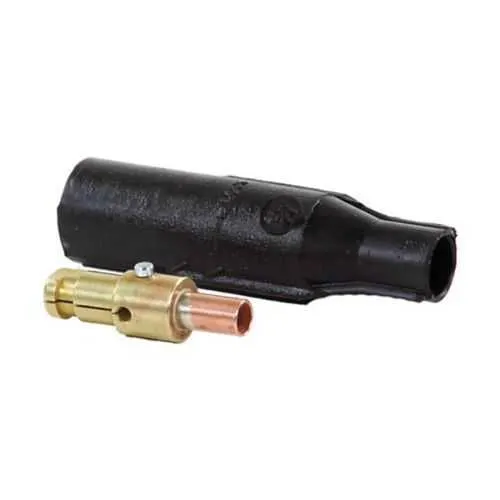

Eaton Crouse-Hinds E1016-9 Cam-Lok plug - NEMA 4
Part Number: E1016-9
Quick Summary
Eaton Cam-Lok E1016-9 plug is a rugged, high-current connector designed for industrial power distribution. Engineers often face unreliable field connections in vibration, moisture, and harsh environments, leading to downtime and maintenance challenges. This Cam-Lok J Series plug meets NEC/CEC standards, carries a NEMA 4 rating for protection against dust, water, and wash-down, and supports ordinary/non-hazardous locations. By combining a 190A continuous rating with a crimp brass contact in red vulcanized rubber, it delivers secure, repeatable connections that speed assemblies, reduce maintenance costs, and improve installation efficiency for control panels, welding carts, and outdoor equipment. It also aligns with the broader Cam-Lok ecosystem for rapid, scalable power distribution.
Product Information
Extended Description
E1016-9 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 190A continuous, #2-#1 AWG, Red, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-9
Product Length/Depth
5.5 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275132093
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
#2-#1 AWG
Amperage Rating
Up to 190A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Red
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 9 - Cam-Lok E1016 and E1018 Connectors
EB 9 - Cam-Lok E1016 and E1018 Connectors
EB 9 - Cam-Lok E1016 and E1018 Connectors
Eaton Specification Sheet - E1016-9
Feature: Up to 190A continuous rating with #2-#1 AWG conductors → Business Impact: Enables high-current loads with margin, reducing overheating risk and downtime in demanding applications. Application: Ideal for heavy machinery, welding carts, and distribution panels where robust, fast field wiring is essential. Feature: 600 Vac/dc voltage rating → Business Impact: Adapts to both AC and DC systems, supporting versatile power distribution without multiple connectors. Application: Welding, generators, and mixed-voltage environments where consolidation saves space and cost. Feature: Crimp connection with brass contacts → Business Impact: Ensures low contact resistance, durable mating, and faster installation, cutting field labor time. Application: Quick-connect installations in panel wiring and temporary power setups. Feature: Rubber vulcanized housing in red → Business Impact: Delivers superior environmental resistance and high visibility, reducing damage risk in cluttered or outdoor sites. Application: Outdoor machinery, wash-down areas, and non-hazardous industrial environments. Feature: J Series Cam-Lok compatibility with male E1016-9 plug → Business Impact: Standardized mating with compatible receptacles, enabling modular, scalable power layouts. Application: New builds and retrofit projects where a reliable, repeatable power connector is needed across multiple stations.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-9?
Enquire Now
FAQs
To install the E1016-9, prepare clean strand ends, select the correct crimp contacts for #2-#1 AWG conductors, and use a compatible crimping tool to achieve the manufacturer-recommended compression. Ensure the rubber housing is clean and seated, then mate with the corresponding Cam-Lok receptacle. Verify continuity and insulation resistance after installation to confirm a reliable, vibration-resistant connection.
The E1016-9 Cam-Lok plug is rated up to 190A continuous and supports 600 Vac/dc. This enables safe operation across high-current industrial loads and both AC and DC power systems, reducing the need for multiple adapters and simplifying safe, crews-friendly maintenance.
Yes. The E1016-9 is designed for ordinary/non-hazardous locations and carries a NEMA 4 rating, providing protection against dust, water, and wash-down exposure. The vulcanized rubber body and brass contacts enhance durability in outdoor or harsh industrial settings while maintaining reliable electrical performance.
The E1016-9 adheres to NEC/CEC standards and is compatible with NEMA 4 enclosures. It is designed for ordinary/non-hazardous locations, ensuring compliant performance in standard industrial facilities and equipment assemblies without special hazard classifications.
The crimp brass contact design paired with vulcanized rubber housing provides durable, low-resistance connections with minimal exposure to the conductors. This reduces corrosion risk, lowers maintenance intervals, and supports longer service life in challenging environments, contributing to a favorable total cost of ownership (TCO) for power distribution systems.
