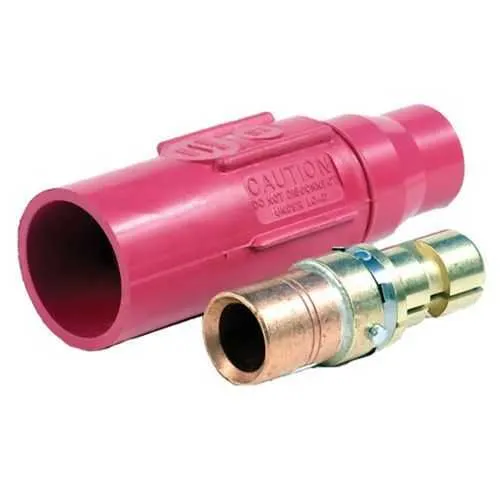

Eaton E1017-10 Cam-Lok J Series Plug - 600 Vac
Part Number: E1017-10
Quick Summary
The E1017-10 Cam-Lok J Series plug from Eaton delivers rugged, high-current power connections for industrial equipment in harsh environments. For technicians and buyers, field wiring can stall projects when current paths loosen, corrode, or fail in demanding settings. This version supports NEC/CEC compliance, a NEMA 4 enclosure rating, and exposure to ordinary/non-hazardous locations, reducing risk and installation delays. With a durable rubber vulcanized body and brass contacts, it offers reliable, long-lasting performance; a crimp connection simplifies installation, while the up-to-545A capacity supports large motors and feeders. Engineers rely on Cam-Lok J Series for safer, faster maintenance and lower total cost of ownership, especially when wiring up 500 kcmil cables.
Product Information
Extended Description
E1017-10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 500 kcmil, Orange, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-10
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275901644
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Orange
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-10
High current capability: The plug supports up to 545A continuous with 500 kcmil cable, enabling a single robust connection for large motors and feeders. Business impact: reduces parts complexity and downtime, improving line uptime in heavy machinery applications such as conveyors and pumps. Application: large industrial motors and feeders. Durable construction: Rubber vulcanized housing in bright orange offers resilience to vibration, moisture, and harsh environments, while enhancing visibility. Business impact: minimizes replacement cycles and maintenance costs; improves safety through clear identification. Application: factory floors, outdoor enclosures, and hazardous-free locations. Brass contact material and crimp connection: Provides low contact resistance, secure mating, and rapid field assembly without soldering. Business impact: faster installations, guaranteed conduction, and reduced maintenance. Application: panel wiring and field terminations where reliability matters. Compliance and protection: NEC/CEC standards alignment with a NEMA 4 rating ensures suitability for ordinary/non-hazardous locations. Business impact: easier regulatory acceptance and fewer planning bottlenecks. Application: control cabinets and outdoor equipment. Compatibility and installation efficiency: Designed for Cam-Lok J Series receptacles, enabling quick pairing and consistent performance across assemblies. Business impact: lowers total cost of ownership through standardized components and reduced downtime. Application: maintenance outages and multi-site installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-10?
Enquire Now
FAQs
Use the approved crimp method with 500 kcmil conductors, following the EB94 installation sheet guidelines. Ensure proper crimp terminals on brass contact interfaces, verify insulation integrity, and inspect the rubber vulcanized housing for any signs of wear after mating. This approach delivers a secure, vibration-resistant connection ideal for high-current industrial applications.
Yes. The E1017-10 is rated NEMA 4 and is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. This makes it suitable for both protected indoor panels and outdoor installations where exposure to dust, moisture, and mild environmental conditions is expected, reducing protection concerns during integration.
The plug accommodates up to 500 kcmil conductors with an amperage rating up to 545A continuous. This combination supports high-load feeders and large-motor connections, enabling fewer components and streamlined wiring in heavy-duty power distribution systems.
The E1017-10 adheres to NEC/CEC standards and carries a NEMA 4 rating, suitable for ordinary/non-hazardous locations. Its rugged design also reflects compliance with industry practices for safe, reliable power connections in industrial automation and electrical distribution.
Regular inspection of the brass contacts for signs of wear or corrosion, verification of the rubber vulcanized body for cracking or deterioration, and periodic testing of the crimp connections are recommended. Keeping connectors clean and properly mated reduces resistance, heat buildup, and potential downtime in service.
