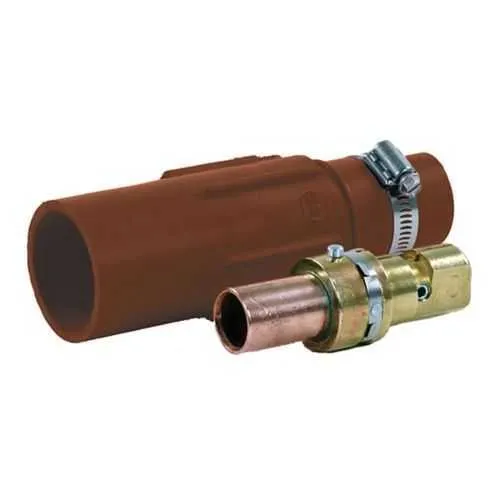

Eaton E1017-109 Cam-Lok Plug - 600 Vac/dc, Up to 340A
Part Number: E1017-109
Quick Summary
The Eaton Cam-Lok E1017-109 plug delivers high-current power connections for industrial equipment and process lines. Engineers struggle with downtime and unreliable field connections; this plug offers a rugged rubber vulcanized housing, brass contacts, and a robust crimp termination to minimize maintenance. It carries a NEMA 4 rating and NEC/CEC compliance for ordinary/non-hazardous locations, ensuring safe operation in typical industrial settings. With compatibility for 250 kcmil cables and a clear visibility orange housing, it provides tangible business value by accelerating installation and reducing changes due to connector failures. The combination of reliability, safety, and ease of use supports efficient electrical distribution in automation and power systems.
Product Information
Extended Description
E1017-109 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, Orange, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-109
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275913265
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Orange
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-109
Amperage handling up to 340A continuous and a 600 Vac/dc rating deliver dependable power to motors, feeders, and automation devices, improving uptime and reducing unplanned outages. The 250 kcmil cable compatibility expands your wiring options for high-current feeds, enabling you to consolidate connectors and simplify spares inventory. The crimp connection paired with brass contacts ensures low contact resistance and durable mating, translating to consistent performance in vibration-prone environments and lower maintenance costs. Rubber vulcanized housing provides environmental resistance and long service life in factory floors or outdoor panels, while the orange color enhances connector visibility for quick identification during maintenance. With 7 in length and compact 2.69 in dimensions, the unit fits standard junction boxes and equipment enclosures, reducing space penalties in control panels. Compliance to NEC/CEC and NEMA 4 underlines suitability for ordinary locations and rugged installations, streamlining procurement and reducing compliance risk. The J Series design simplifies mating with receptacles and offers military-grade reliability for critical automation assets, making it easy to standardize on a single high-performance connector family across projects.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-109?
Enquire Now
FAQs
The E1017-109 uses a crimp connection designed for 250 kcmil conductors. Verify the receptacle is compatible with Cam-Lok J Series plugs, prepare the cable with the correct crimp terminals, and follow the manufacturer’s installation sheet EB 94 for proper termination. The rugged housing supports reliable mating even in damp or weeded environments, reducing rework from improper terminations.
This plug supports up to 340A continuous current and is rated for 600 Vac/dc. It accepts 250 kcmil cables, with brass contact material providing low contact resistance and durable performance in industrial environments.
The connector is rated for Ordinary/Non-Hazardous Locations with a NEMA 4 enclosure rating, making it appropriate for general industrial settings and weather-resilient applications. It is not intended for hazardous locations where specialized certifications and protective enclosures are required.
Key materials include rubber housing with vulcanized construction and brass contacts, designed for crimp termination. The orange housing improves visibility in busy environments, while the rubber vulcanized body provides environmental resistance and durability in factory and field wiring.
The E1017-109 offers a high-current, high-reliability connection with a compact form factor and standardization within the Cam-Lok J Series. Its combination of 340A capability, 600 Vac/dc rating, and 250 kcmil compatibility streamlines motor and feeder wiring, reduces maintenance, and supports faster, safer installations in automation and power distribution systems.
