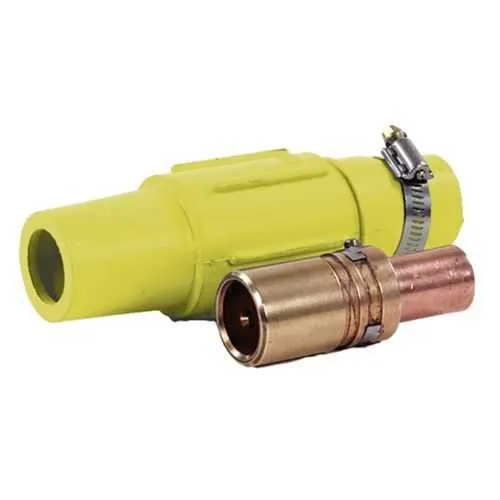

Eaton Crouse-Hinds E1017-111 Cam-Lok J Plug - 600 Vac/dc
Part Number: E1017-111
Quick Summary
Eaton Crouse-Hinds E1017-111 Cam-Lok J Series plug provides high-current power connections for industrial equipment. Engineers often struggle with field-installable connectors that tolerate large cables, deliver reliable performance, and stay code-compliant in harsh environments. This design meets NEC/CEC standards, NEMA 4 enclosure requirements, and ordinary/non-hazardous area classifications to support safe, compliant installations. In addition, the vulcanized rubber body and brass contacts enable fast, secure crimp connections that minimize downtime. This plug enables efficient power distribution in mining, manufacturing, and heavy equipment applications while supporting up to 250 kcmil cables. By leveraging Cam-Lok compatibility and documented installation instructions, procurement and maintenance teams can streamline projects and achieve faster ROI.
Product Information
Extended Description
E1017-111 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, Brown, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-111
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275913289
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-111
Feature → Business Impact → Application: Amperage and voltage rating up to 340A continuous and 600 Vac/dc enables reliable power delivery for heavy equipment like conveyors and motors, reducing the risk of overloads and unplanned downtime in industrial facilities. This supports safer, code-compliant operation in mining, metal fabrication, and large-scale manufacturing environments. Feature → Business Impact → Application: 250 kcmil cable compatibility minimizes termination steps and reduces field wiring complexity, lowering installation time and improving site productivity on rugged projects. Feature → Business Impact → Application: Vulcanized rubber housing with brass contacts and a crimp connection delivers durable, moisture-resistant performance, enhancing life-cycle reliability in wet or dusty shop floors and outdoor installations. Feature → Business Impact → Application: NEMA 4 enclosure rating and NEC/CEC compliance provide clear regulatory alignment, accelerating procurement and installation approvals for critical power-distribution points in industrial plants. Feature → Business Impact → Application: Cam-Lok J-Series compatibility offers modular, fast-mate connections, enabling scalable layouts for evolving machinery fleets while maintaining equipment uptime and reducing maintenance costs. Feature → Business Impact → Application: Precise dimensions and documented installation references (EB 94, spec sheets) streamline kit provisioning and on-site training, supporting faster project start-up and predictable ROI.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-111?
Enquire Now
FAQs
For field installations, ensure the cable is terminated with 250 kcmil crimp contacts designed for Cam-Lok J-Series connectors, then crimpsecurely attach the brass contact to the 250 kcmil conductor. Follow the EB 94 installation sheet for E1017, E1019, and E1023 connectors, guaranteeing a proper seal and correct mating with the receptacle. Verify 600 Vac/dc rating and ensure the assembly is compliant with NEC/CEC and NEMA 4 requirements.
The E1017-111 plug is rated for up to 340A continuous and supports 250 kcmil conductors. It is specified for 600 Vac/dc operation, enabling use across both AC and DC power distribution in industrial settings. These ratings underpin safe, high-current power delivery to heavy equipment while maintaining compliance with NEC/CEC standards.
This connector carries an Ordinary/Non-Hazardous area classification and a NEMA 4 enclosure rating, indicating suitability for non-hazardous environments and rugged conditions. It is not specified for hazardous locations, so applications requiring explosion-proof or intrinsically safe configurations should consider alternative certified components.
Key documents include the Cam-Lok catalog and J-Series catalog pages, the EB 94 installation instruction for Cam-Lok E1017/E1019/E1023 connectors, and the Eaton Specification Sheet for E1017-111. These resources provide detailed installation steps, dimensional data, and electrical ratings to assist purchasing, engineering approvals, and field technicians.
Industries such as mining, metal fabrication, material handling, and heavy machinery rely on Cam-Lok J-Series plugs to connect large power cables efficiently. The combination of up to 340A continuous current, 250 kcmil cable compatibility, and 600 Vac/dc capability supports high-load equipment, minimizes downtime with quick field connections, and ensures code-compliant, durable installations in tough environments.
