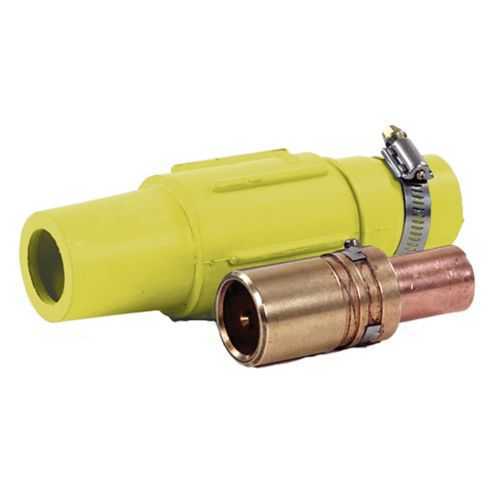

Eaton Crouse-Hinds E1017-113 Cam-Lok J Series plug - NEMA 4
Part Number: E1017-113
Quick Summary
Cam-Lok J Series E1017-113 plug delivers rugged, high-current power connections for industrial equipment and electrical enclosures. In field installs, downtime often stems from mismatched parts, brittle housings, and labor-intensive crimping—this plug is designed to reduce those frictions. NEC/CEC compliance and a NEMA 4 rating support reliable operation in ordinary/non-hazardous locations, even in challenging environments. With compatibility for 250 kcmil conductors and a continuous current rating up to 340 A at 600 V, it handles demanding loads without frequent replacement. The rugged rubber vulcanized housing, brass contacts, and distinctive yellow color enhance durability, safety, and inventory management for industrial projects.
Product Information
Extended Description
E1017-113 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, Yellow, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-113
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275913302
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Yellow
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-113
Feature: Amperage rating up to 340A continuous. Business Impact: Reduces the number of joints and enables the use of larger conductors in a single connector, accelerating installation and lowering failure points. Application: Heavy machinery, conveyors, and power distribution panels in manufacturing plants. Feature: Cable size compatibility of 250 kcmil. Business Impact: Supports large feeders, enabling fewer terminations and streamlined panel design. Application: Main feeders and sub-feed lines in process industries. Feature: Voltage rating of 600 Vac/dc. Business Impact: Enables dual AC/DC systems without adapters, simplifying design and stocking. Application: Mixed-power equipment and automation cabinets. Feature: Crimp connection with brass contacts. Business Impact: Provides low contact resistance, vibration resistance, and durable mating over time. Application: Field assemblies subject to movement and shock. Feature: Rubber vulcanized housing, color yellow. Business Impact: Improves chemical and environmental resilience while increasing visibility on dense racks. Application: Harsh factory floors, outdoor installations, and maintenance access points. Feature: Female contact gender. Business Impact: Ensures reliable, secure mating with Cam-Lok J Series receptacles, reducing misconnection risk. Application: Quick-connect panels and distribution hubs. Feature: NEMA 4 enclosure protection. Business Impact: Protects critical connections from dust and moisture, lowering maintenance costs. Application: Enclosures in ordinary/non-hazardous locations. Feature: 7.38 in length, 2.69 in width, 2.69 in height, 4.16 lb weight. Business Impact: Manageable size and mass for on-site handling and tool-free installation, reducing labor time. Application: Field retrofits and new equipment installations. Feature: Brass contact material. Business Impact: Corrosion resistance and durable conductivity for long service life. Application: Industrial environments with exposure to contaminants. Feature: UPC 662275913302. Business Impact: Facilitates asset tagging, inventory control, and procurement accuracy. Application: Asset management and maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-113?
Enquire Now
FAQs
The E1017-113 is designed to mate with Cam-Lok J Series single-pole plugs and receptacles. It supports 250 kcmil conductors and provides a secure crimp connection suitable for up to 340 A continuous at 600 V, ensuring alignment and reliable electrical performance in demanding industrial applications.
E1017-113 provides up to 340 A continuous current and a voltage rating of 600 Vac/dc. It is specified for 250 kcmil conductors and uses brass contacts in a crimp configuration, with a vulcanized rubber housing suitable for industrial environments.
No. The E1017-113 is classified for Ordinary/Non-Hazardous Locations under NEC/CEC standards and carries a NEMA 4 rating for protection against moisture and dust in non-hazardous settings. For hazardous locations, select an alternative connector rated for that environment.
Helpful resources include the EB 94 installation sheet for Cam-Lok E1017 and related connectors, the Cam-Lok J Series catalog page, and the official Eaton specification sheet for E1017-113. These documents provide crimp procedures, torque/pressure guidelines, and compatibility notes to ensure correct installation.
Using the E1017-113 in a panel upgrade offers several ROI drivers: high current capability reduces connector count and potential points of failure; quick-mate design lowers installation time; rugged rubber housing and brass contacts improve durability and uptime; and standardized NEC/CEC compliance supports faster approvals and reduced risk in general industrial environments.
