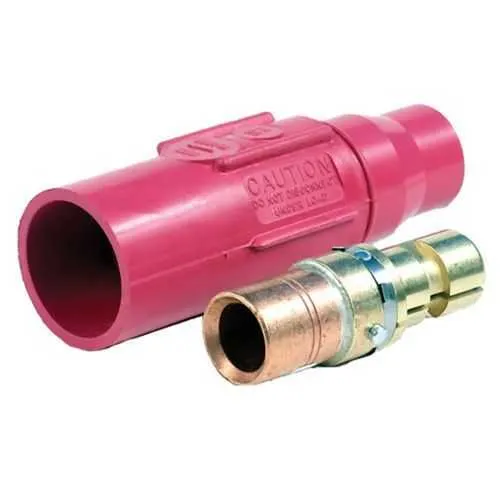

Eaton Crouse-Hinds E1017-12 Cam-Lok Plug - NEMA 4
Part Number: E1017-12
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1017-12 plug delivers rugged, high-current power connections for industrial equipment. Engineers often wrestle with connectors that loosen, corrode, or fail under vibration and washdown cycles. This J Series plug carries NEC/CEC compliance and a NEMA 4 rating, suitable for ordinary/non-hazardous locations, with a durable vulcanized rubber body and brass contacts. With a crimp termination and compatibility to up to 500 kcmil cables, it offers faster installations and predictable performance, reducing downtime and maintenance costs. This supports scalable power distribution in manufacturing, mining, and utility settings.
Product Information
Extended Description
E1017-12 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 500 kcmil, White, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-12
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275132604
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-12
Feature: High current capability up to 545A continuous. Benefit: Enables reliable power delivery for demanding equipment without frequent connector changes. Application: Heavy automation lines and machineries in manufacturing facilities. Feature: 500 kcmil cable compatibility. Benefit: Supports large, power-dense feeders, reducing the need for multiple terminations. Application: Main feeders and distribution boards in plants. Feature: 600 Vac/dc rating. Benefit: Versatile use across AC and DC systems with a single connector family. Application: Process control and motor drive applications. Feature: Vulcanized rubber construction with brass contacts. Benefit: Superior durability and corrosion resistance in harsh environments. Application: Outdoor installations and washdown areas. Feature: Crimp termination. Benefit: Faster, more repeatable installations with robust electrical contact. Application: Field and shop terminations for quick turnarounds. Feature: White color coding for visibility. Benefit: Improves safety and identification in complex panel layouts. Application: Electrical rooms and control cabinets to minimize mis-mating.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-12?
Enquire Now
FAQs
Power must be disconnected before any work. Verify cable preparation to 500 kcmil, inspect the crimp contacts for damage, and select the matching Cam-Lok receptacle. Use the recommended crimp termination to secure the brass contacts, then mate with the compatible J Series receptacle. Perform a continuity check and insulation resistance test after assembly to confirm a secure, low-resistance connection.
The E1017-12 is rated up to 545A continuous and supports 600 Vac/dc, with compatibility for 500 kcmil conductors. These specs enable dependable power delivery for high-powered equipment while maintaining safe, robust performance across AC and DC systems. Properly matching to a compliant receptacle and correct cable size minimizes voltage drop and heating under load.
This plug is ideal for non-hazardous, ordinary locations requiring high-current, durable connectors. Common use cases include manufacturing automation lines, mining equipment power feeds, water treatment and processing plants, and outdoor installations where resistance to dust, moisture, and washdown is essential. Its NEMA 4 rating supports rugged outdoor or harsh indoor environments.
The E1017-12 Cam-Lok plug complies with NEC/CEC standards and carries a NEMA 4 enclosure rating for protection against dust and water ingress. It is intended for ordinary/non-hazardous locations, with a 600 Vac/dc rating and a 500 kcmil cable compatibility, aligning with typical industrial power distribution requirements.
Durable vulcanized rubber construction and brass contacts resist corrosion and wear, reducing maintenance frequency. The crimp termination provides a secure, repeatable connection, shortening installation time and minimizing rework. These attributes translate to lower downtime, longer service life, and improved reliability for high-current power feeds in demanding facilities.
