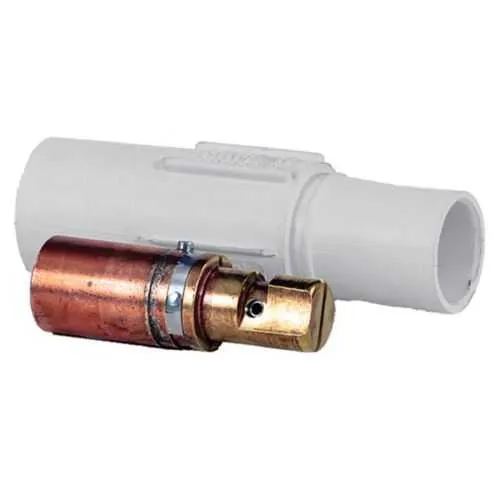

Eaton Crouse-Hinds E1017-13 Plug - 690A, 600V, NEMA 4
Part Number: E1017-13
Quick Summary
Eaton Crouse-Hinds Cam-Lok J Series E1017-13 plug is a high-current, quick-connect power interface designed for industrial equipment. Engineers often contend with connectors that loosen under vibration or fail in harsh environments, causing downtime and costly rework. With a NEMA 4 rating and NEC/CEC compliance for ordinary/non-hazardous locations, this plug delivers reliable service in demanding facilities. The rugged rubber vulcanized body and brass contacts support long-term operation, while the crimp connection enables fast, repeatable terminations. When paired with Cam-Lok J Series receptacles, the E1017-13 minimizes maintenance costs and accelerates power distribution for motors, machines, and process equipment.
Product Information
Extended Description
E1017-13 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 750 kcmil, Black, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-13
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275132611
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
750 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Black
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-13
Feature: High-current capability up to 690A continuous. Business Impact: Reduces the need for multiple parallel connectors and minimizes fault points, improving uptime. Application: Heavy-duty motors and equipment feeds in manufacturing floors. Feature: Large cable size support up to 750 kcmil. Business Impact: Enables a single, robust feeder for high-load applications, lowering installation complexity and material costs. Application: Power distribution panels and switchgear connections. Feature: Voltage rating of 600 Vac/dc. Business Impact: Compatible with both AC and DC systems, simplifying design and stocking for mixed electrical environments. Application: Power distribution, motors, and industrial drives. Feature: Vulcanized rubber housing with brass contacts. Business Impact: Superior sealing, vibration resistance, and durable contact performance in harsh settings. Application: Wet, dusty, or vibration-prone plants. Feature: Crimp connection. Business Impact: Fast, repeatable terminations with reliable current transfer and reduced field labor. Application: On-site installations where speed matters. Feature: NEMA 4 rated, Ordinary/Non-Hazardous Locations. Business Impact: Compliance with standard facility classifications reduces risk of non-conformance and accelerates commissioning. Application: Industrial facilities requiring rugged, weather-resistant connectors.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-13?
Enquire Now
FAQs
For the E1017-13, use the crimp connection method compatible with 750 kcmil cables. Ensure proper crimp tooling and terminals, follow the manufacturer’s installation instructions, and verify the brass contacts number and polarity. Pre-inspect insulation, mechanical fit, and locking features to ensure vibration resistance in industrial environments.
The E1017-13 plug is rated for up to 690A continuous and supports 600 Vac/dc. This makes it suitable for high-current, mixed-AC/DC applications in Cam-Lok J Series assemblies, with robust performance across standard industrial power distributions.
The product is specified for Ordinary/Non-Hazardous Locations with a NEMA 4 rating. It is not described as certified for hazardous (e.g., Class I/II) environments, so use in non-hazardous industrial settings or where standard environmental protections apply.
The E1017-13 features a vulcanized rubber housing and brass contacts in a black, durable design. This combination provides moisture sealing, vibration resistance, and reliable electrical contact under demanding operating conditions, helping minimize maintenance and downtime.
Key documents include the Cam-Lok catalog pages, EB 94 installation sheets for E1017/E1019/E1023 connectors, and the Eaton specification sheet for E1017-13. These resources cover installation steps, wiring recommendations, and performance specifications to support compliant, efficient deployments.
