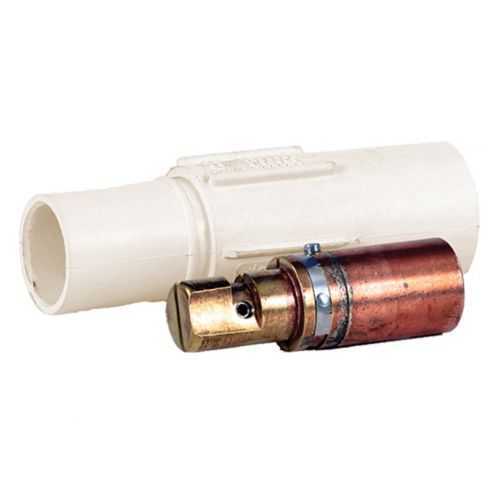

Eaton E1017-21 Cam-Lok J Series Plug - NEMA 4
Part Number: E1017-21
Quick Summary
Eaton Cam-Lok J Series E1017-21 plug is a high-current power connector for industrial equipment in harsh environments. In demanding installations, you need secure, rugged connections that resist vibration, moisture, and downtime. This plug meets NEC/CEC standards and carries a NEMA 4 enclosure rating with Ordinary/Non-Hazardous location classification, ensuring safe operation. For OEMs and service teams, it delivers reliable crimp termination with brass contacts and vulcanized rubber insulation, enabling reduced maintenance costs and improved uptime across critical power distribution tasks.
Product Information
Extended Description
E1017-21 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 800 kcmil, Red, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-21
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275923783
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
800 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Red
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-21
Feature: 800 kcmil cable capability supports large feeders and high-current runs. Business Impact: Enables scalable power delivery with fewer terminations and reduced labor time. Application: Heavy machinery, mining, and large industrial feeders where large conductors are required. Application: 690A continuous rating ensures reliable operation under peak loads. Why it matters: minimizes overheating risk and supports long service life in demanding environments. Feature: Crimp connection with brass contacts provides low contact resistance and robust mating. Business Impact: Faster field terminations with consistent electrical performance. Application: Quick installations on equipment panels and portable power units. Feature: Vulcanized rubber housing in red offers durable insulation and high visibility. Business Impact: Enhanced durability against abrasion and environmental exposure with clear identification on the plant floor. Application: Outdoor or workshop settings where protection and visibility matter. Feature: J Series compatibility with 800 kcmil cables and 600 Vac/dc rating ensures standardized, safe interconnects. Business Impact: Reduces part diversity and stocking costs while improving interchangeability. Application: New builds and retrofits across power distribution and industrial automation landscapes.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-21
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-21?
Enquire Now
FAQs
The E1017-21 uses a crimp termination to secure 800 kcmil conductors, requiring proper crimp tooling and copper-to-brass contact alignment. Begin by preparing the cable, stripping to the specified length, and inserting into the brass contact. Use the recommended crimp die to ensure a gas-tight, low-resistance joint, then mate with the corresponding receptacle. Always follow Eaton EB 94 installation guidance for torque values, sealing, and inspection to guarantee NEMA 4 integrity and continuous performance.
The E1017-21 is certified for Ordinary/Non-Hazardous Locations with NEC/CEC standards and a NEMA 4 rating. It is not intended for use in hazardous (classified) environments unless specifically approved by the manufacturer. For facilities requiring hazardous-area compliance, evaluate alternative Cam-Lok configurations or enclosure ratings that meet your exact zone requirements and safety procedures.
This plug supports up to 690A continuous current and a voltage rating of 600 Vac/dc. It is designed for 800 kcmil conductors, making it suitable for high-current feeders and heavy machinery connections. In practice, verify your cable terminations and enclosure clearance to ensure full performance within the NEC/CEC framework and maintain a safe operating window.
The E1017-21 aligns with NEC/CEC standards and carries a NEMA 4 rating for weather-resistant enclosures. It is intended for Ordinary/Non-Hazardous locations, reducing risk in standard industrial settings. Always confirm your installation site compliance and refer to the Cam-Lok catalog pages and spec sheets for the latest certification notes and compatibility guidance.
Refer to Eaton’s installation sheets EB 94 for Cam-Lok E1017, E1019, and E1023 connectors, the Cam-Lok J Series catalog page, and the E1017-21 specification sheet. These documents provide step-by-step installation, mating procedures, rated capabilities, and maintenance considerations, enabling predictable performance, reduced downtime, and a clear basis for total cost of ownership calculations.
