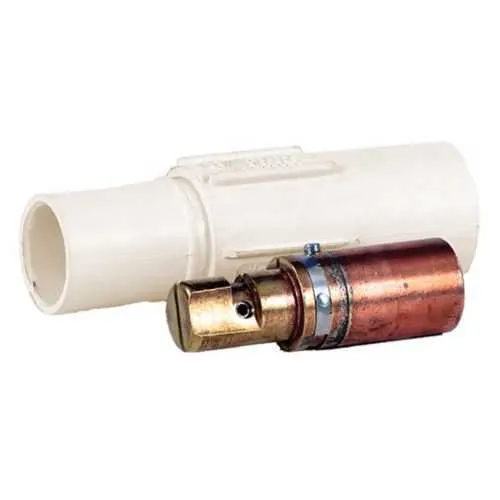

Eaton E1017-23 Cam-Lok Plug - 600 Vac/dc
Part Number: E1017-23
Quick Summary
The Eaton E1017-23 Cam-Lok Plug delivers a high-current, reliable connection for industrial power distribution. In harsh environments, installers face terminations that fail under moisture, vibration, or wear, risking downtime. It is engineered to meet NEC/CEC standards and is rated for NEMA 4 enclosures in Ordinary/Non-Hazardous Locations, ensuring safety and compliance. This plug supports up to 690 A continuous with 800 kcmil cable, using a crimp connection and brass contacts inside a vulcanized rubber body. By combining rugged construction with fast, secure terminations, it reduces installation time, minimizes maintenance, and improves overall equipment uptime for large-motor and process-control applications.
Product Information
Extended Description
E1017-23 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 800 kcmil, Green, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-23
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275923806
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
800 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Green
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-23
High-current capability up to 690 A continuous with 800 kcmil cable enables direct feeder connections to large motors and equipment, reducing wiring complexity and potential voltage drop. This translates to shorter installation times and fewer joints, improving reliability for heavy industry motor drives and process lines. The crimp termination provides fast, repeatable connections with consistent torque, lowering field rework costs and ensuring a solid bond in challenging environments. A vulcanized rubber body with brass contacts delivers durable electrical performance and environmental resistance, reducing maintenance cycles in damp, dusty, or wash-down areas. Green coloration aids quick identification and compatibility within Cam-Lok assemblies, streamlining inventory management and installation planning in multi-site projects. The unit’s NEMA 4 rating and NEC/CEC compliance support safe, code-conforming power distribution in ordinary locations across mining, water treatment, and manufacturing facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-23
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-23?
Enquire Now
FAQs
The E1017-23 is designed for 800 kcmil cables terminated with a crimp connection. This enables high-current, low-resistance feeder runs up to 690 A continuous, suitable for large motors and feeders in heavy industrial environments. Always confirm exact crimp tooling and connector compatibility per Eaton documentation before field use.
Yes. The E1017-23 Cam-Lok plug is specified to meet NEC/CEC standards and carries a NEMA Rating of 4. It is intended for Ordinary/Non-Hazardous Locations, providing code-compliant protection against dust and water ingress in typical industrial settings such as manufacturing floors and service bays.
Termination is performed via a crimp process using the appropriate crimp contacts designed for 800 kcmil conductors. Follow Eaton’s EB 94 installation guidance and use the recommended crimping tooling to ensure a secure, code-compliant connection. After crimping, inspect for proper contact displacement and insulation integrity to prevent arcing or moisture ingress.
The E1017-23 excels in high-current feeder connections for large motors, panel power distribution, and equipment hookups in non-hazardous industrial environments. Typical industries include mining, water/wastewater treatment, metal processing, and heavy manufacturing where robust, reliable terminations are critical for uptime and safety.
Official resources are available from Eaton’s Cam-Lok catalog and data pages. Look for the Cam-Lok Single Pole Plugs and Receptacles catalog, the Cam-Lok J Series catalog page, EB 94 installation sheets for E1017 series, and the E1017-23 specification sheet. These documents provide wiring, crimp specifications, installation steps, and safety guidance.
