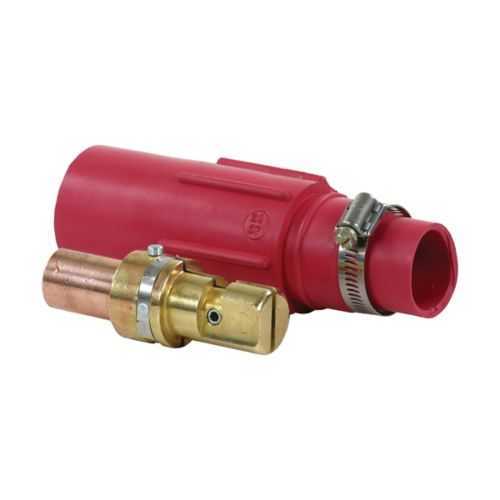

Eaton Crouse-Hinds E1017-26 Cam-Lok J Plug - 600 Vac/dc
Part Number: E1017-26
Quick Summary
Eaton Crouse-Hinds Cam-Lok E1017-26 plug is a high-current power connector engineered for industrial distribution. It delivers reliable, secure connections for demanding equipment where downtime is costly. A common challenge is maintaining vibration-resistant terminations in harsh environments, which can lead to costly outages and maintenance. This plug meets NEC/CEC standards and carries a NEMA 4 rating for use in ordinary, non-hazardous locations, providing confidence across installation, commissioning, and field maintenance. Designed for crimp terminations with a rubber vulcanized housing and brass contacts, it enables quicker installs and longer service life. By prioritizing rugged construction and compatibility with Cam-Lok receptacles, it supports faster installations while reducing spare-part inventories and lifecycle costs.
Product Information
Extended Description
E1017-26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Blue, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-26
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275132918
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-26
The E1017-26 delivers a high current rating up to 445A continuous with support for 350 kcmil conductors, enabling large motor loads and high-capacity feeders without multiple terminations. This reduces panel density and installation time while improving reliability in heavy-duty applications such as manufacturing lines and material-handling systems. The 600 Vac/dc rating provides flexibility across AC and DC systems, allowing engineers to standardize on a single connector family for mixed electrical environments and simplifying maintenance planning. The blue vulcanized rubber housing paired with brass contacts delivers ruggedness and superior environmental resistance, enabling long service life in dusty, damp, or vibratory plant floors. The crimp termination option minimizes field wiring errors and speeds up installation, reducing labor costs and rework. Compliance with NEC/CEC and NEMA 4 ensures predictable performance in ordinary/non-hazardous locations, easing procurement and approval processes in regulated industries. Compatibility with Cam-Lok J Series receptacles enables plug-and-play upgrades and scalable power distribution, while the color coding and robust construction support safer, faster replacements and service continuity for OEMs and end users alike.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-26?
Enquire Now
FAQs
The E1017-26 is designed for Cam-Lok J Series single-pole plugs and receptacles, using a crimp termination with 350 kcmil conductors. It mates with standard Cam-Lok J Series components to form a secure, high-current connection.
It is rated up to 445A continuous and supports 600 Vac/dc, making it suitable for heavy motor loads and mixed AC/DC systems within ordinary locations.
Yes. The unit carries a NEMA 4 rating and an area classification of Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards for reliable indoor or protected outdoor use.
It uses a crimp connection on a 350 kcmil conductor, paired with a vulcanized rubber housing and brass contacts for durable, quick-term installations that reduce field errors and rework while maintaining vibration resistance.
You can consult the Eaton Cam-Lok J Series catalog page, the Cam-Lok Single Pole Plugs and Receptacles catalog, EB 94 installation sheet, and the E1017-26 specification sheet for detailed wiring, dimensions, and compliance information.
