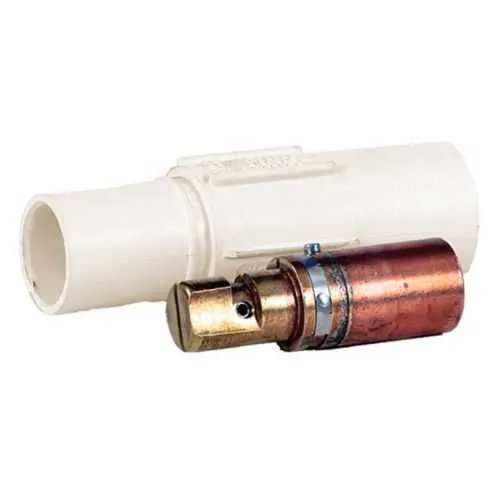

Eaton Crouse-Hinds E1017-29 Cam-Lok Plug - NEMA 4
Part Number: E1017-29
Quick Summary
E1017-29 Cam-Lok plug from Eaton Crouse-Hinds is a high-current connector designed for rugged industrial power networks. When heavy cables and frequent mating cycles are required, installers often struggle with reliability and sealing; this plug addresses those pains with a robust crimp connection and a vulcanized rubber housing. It carries a NEMA 4 rating for outdoor and damp environments and complies with NEC/CEC standards, supporting safe operation in non-hazardous locations. For procurement teams and engineers, this solution translates into fewer spares, easier maintenance, and consistent performance in harsh settings, while complementary Cam-Lok accessories and installation resources streamline deployment and reduce total cost of ownership.
Product Information
Extended Description
E1017-29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 800 kcmil, Blue, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-29
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275956927
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
800 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-29
Feature: Up to 690A continuous amperage rating. Business Impact: Supports large motor drives and heavy equipment without frequent re-termination, reducing downtime and maintenance costs. Application: Conveyor belts, pumping stations, and large industrial feeders require reliable current delivery with long service life. Feature: Cable size compatibility up to 800 kcmil with a crimp connection. Business Impact: Enables high-power distribution with secure, vibration-resistant terminations, lowering repair frequency and ensuring consistent voltage delivery in dynamic environments. Application: Wind-down areas, hoisting systems, and heavy machinery installations. Feature: 600 Vac/dc voltage rating in a vulcanized rubber housing with brass contacts. Business Impact: Delivers durable insulation and low contact resistance for stable performance across AC and DC circuits, improving electrical safety margins. Application: Outdoor equipment and damp locations where environmental resilience matters. Feature: J Series plug with blue rubber body and robust enclosure. Business Impact: Improves handling, identification, and environmental sealing, reducing installation errors and warranty calls. Application: Field assemblies in harsh industrial environments. Feature: NEMA 4, NEC/CEC compliant, Ordinary/Non-Hazardous Location suitability. Business Impact: Ensures regulatory alignment and peace of mind for safety and commissioning, simplifying approvals. Application: Controls, motor control centers, and equipment racks in non-hazardous facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-29?
Enquire Now
FAQs
Yes. The E1017-29 is specified to accept up to 800 kcmil conductors with a crimp connection. Ensure the correct crimp contacts and tooling per the manufacturer’s installation sheets, such as the EB 94 instruction sheet, and follow the recommended cable preparation lengths to maintain electrical integrity and environmental sealing.
The NEMA 4 rating means the plug is suitable for indoor or outdoor installations exposed to rain, windblown dust, splash, and other non-hazardous environments. It provides a weather-resistant enclosure that helps protect the brass contacts and rubber housing, reducing corrosion risk and maintaining reliable performance in non-hazardous locations.
Ideal applications include high-current motor drives, pumps, conveyors, and industrial machinery where rapid, secure mating is required and up to 690A continuous current is needed. Its rugged rubber body and brass contacts ensure durable connections in outdoor and damp locations, aligning with NEC/CEC controls and power distribution needs.
This connector adheres to NEC/CEC standards, carries a NEMA 4 rating for protection against dust and water ingress, and is intended for Ordinary/Non-Hazardous Locations. Compliance supports safer installation, easier approvals, and predictable performance in standard industrial environments.
Long-term maintenance benefits come from a durable vulcanized rubber housing and secure brass contacts that resist wear and corrosion, reducing re-termination events. The rugged construction minimizes field failures, lowers spare parts costs, and shortens downtime during maintenance windows, providing a favorable total cost of ownership in demanding industrial settings.
