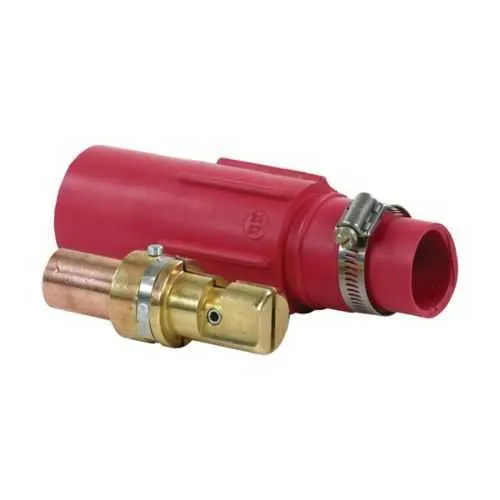

Eaton Crouse-Hinds E1017-31 Cam-Lok plug - NEMA 4
Part Number: E1017-31
Quick Summary
The E1017-31 Cam-Lok plug is a high-current power connector designed for rugged industrial installations. It provides reliable, quick-connect power for heavy equipment and motor feeds in manufacturing and processing facilities. Many teams struggle with connectors that fail under vibration, moisture, or repeated mating cycles, leading to costly downtime. This Cam-Lok J Series plug delivers a NEMA 4-rated enclosure solution with 600 Vac/dc capability and up to 445 A continuous current, using vulcanized rubber housing and brass contacts for long life. Compatibility with Cam-Lok receptacles, NEC/CEC compliance, and ordinary-location operation reduce QA gaps and installation time, while sustaining performance in harsh environments. Such robustness translates to lower maintenance costs and faster deployment for plant expansion or capital projects.
Product Information
Extended Description
E1017-31 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Brown, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-31
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275901675
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-31
High-current capability translates to improved equipment uptime and reduced wiring complexity. Feature → Business Impact → Application: Amperage up to 445A continuous enables large motor feeds and heavy-duty powered lines, lowering conductor counts and simplifying protection schemes in manufacturing plants. Application-wise, it suits cranes, conveyors, and presses where reliable power transfer is essential. Feature → 350 kcmil cable size supports large conductors for reduced voltage drop and robust termination in power distribution trunks, improving feeder reliability across production lines. Feature → 600 Vac/dc voltage rating offers versatility for mixed voltage systems, enabling a single connector family to support AC and DC drives, in both processing and packaging environments. Feature → Vulcanized rubber housing provides resistance to vibration, moisture, and thermal cycling, delivering extended service life and reduced maintenance costs in harsh environments. Feature → Brass contact material delivers durable conductivity and corrosion resistance, ensuring consistent performance through frequent mating cycles and enabling longer replacement intervals. Feature → Crimp connection simplifies field installation, reducing labor time and error rates while meeting NEC/CEC installation practices. Feature → Cam-Lok J Series compatibility ensures rapid mating with approved receptacles, supporting fast changeovers and scalable plant-upgrades. These attributes collectively deliver measurable ROI through faster installations, lower downtime, and improved regulatory compliance in industrial automation settings.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-31
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-31?
Enquire Now
FAQs
Installers should use the appropriate Cam-Lok J Series mating receptacle and a compatible crimp tool to terminate 350 kcmil conductors. Follow the EB 94 installation instructions for Cam-Lok E1017, E1019, and E1023 connectors to ensure correct crimp sizing, insulation seating, and strain relief. Verify voltage rating of 600 Vac/dc and confirm a secure, vibration-resistant connection before energizing the circuit.
The E1017-31 supports up to 445 A continuous current and uses a 350 kcmil conductor, enabling large motor feeds and power distribution with minimal voltage drop. The brass contacts provide reliable conductivity, while the vulcanized rubber housing offers rugged, weather-resistive performance in harsh environments. Its NEC/CEC compliance and NEMA 4 rating make it a dependable choice for industrial automation and material handling.
Yes. The E1017-31 is designed to meet NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, balancing regulatory compliance with practical utility in typical plant environments. The NEMA 4 enclosure rating further supports use in environments with dust, moisture, and wash-down conditions common in manufacturing and processing facilities.
Regular inspection should focus on mating surfaces, connector seals, and the crimp integrity of the conductors. Check for wear, corrosion on brass contacts, and any signs of moisture ingress. Maintain clean, dry connectors and replace damaged components promptly. Refer to the CAM-Lok installation literature for recommended torque values and re-crimp guidelines if life-cycle tests indicate wear.
Comprehensive documentation includes the Cam-Lok catalog pages for J Series, the Cam-Lok catalog for single pole plugs and receptacles, the EB 94 installation sheet for E1017/E1019/E1023 connectors, and the E1017-31 specification sheet. These resources provide electrical characteristics, wiring diagrams, mating instructions, and recommended installation practices to help engineers and technicians ensure compliant, repeatable results.
