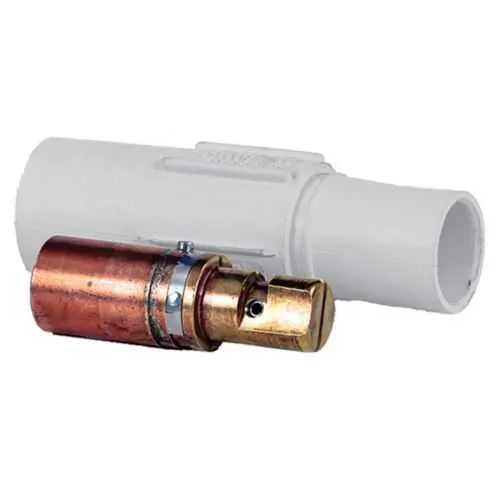

Eaton E1017-33 Cam-Lok J Series plug - NEMA 4
Part Number: E1017-33
Quick Summary
The Eaton Cam-Lok J Series E1017-33 plug is a high-current electrical connector designed for fast, secure power distribution in demanding industrial environments. Engineers often struggle with bulky cable assemblies that resist proper mating or cause downtime during maintenance. This plug is rated up to 690A continuous and accepts up to 750 kcmil cables, with 600 Vac/dc operation, and features a vulcanized rubber body for rugged outdoor use. Certified for NEC/CEC standards, with NEMA 4 protection and ordinary/non-hazardous location suitability, it supports reliable performance in non-hazardous settings. By combining brass contact materials with a crimp connection and brown vulcanized rubber, it delivers fast installation and long-term durability, aligning with procurement goals for uptime and safety.
Product Information
Extended Description
E1017-33 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 750 kcmil, Brown, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-33
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275901699
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
750 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-33
Feature: High-current capability enables up to 690A continuous service, reducing the number of parallel connectors and simplifying wiring schemes. Business impact: improves system reliability and reduces total part count in large motor and feeder installations. Application: suitable for 750 kcmil cables in industrial power distribution. Long-tail keywords: Cam-Lok J Series, 750 kcmil, 690A, crimp contact, brass contacts. Feature → Business Impact → Application: The plug uses a crimp connection with brass contacts to ensure a secure, low-resistance path, reducing maintenance intervals and thermal stress in high-load applications. It integrates with standard Cam-Lok mating interfaces for quick field replacement and scalable expansion.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-33
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-33?
Enquire Now
FAQs
The E1017-33 plug supports up to 750 kcmil cable sizes and uses a crimp connection with brass contacts. Its rubber vulcanized body offers durable sealing, with a 7 inch length that facilitates straightforward field termination and alignment. This design minimizes mis-mating risk and speeds up installation in panel boards and power distribution blocks.
The E1017-33 provides up to 690A continuous current rating and a voltage rating of 600 Vac/dc. It is designed for rugged industrial use with brass contacts in a male configuration and a 750 kcmil cable size, enabling high-power connections in motor feeders, distribution centers, and heavy-duty machinery.
Yes. The connector is rated for Ordinary/Non-Hazardous Locations with a NEMA 4 enclosure rating, providing weather resistance and protection against ingress in non-hazardous environments. It’s well-suited to exposed equipment bays, outdoor switchgear, and rugged factory floors where reliable environmental performance is required.
The plug uses a robust vulcanized rubber body and brass contact material with a crimp connection, delivering low contact resistance and durable mating. The male configuration ensures quick disconnection and reassembly, reducing downtime during maintenance. Its compatibility with Cam-Lok J Series mating interfaces supports scalable replacements across multi-cable assemblies.
Official literature, including the Cam-Lok catalog pages, installation sheets EB 94, and the E1017-33 specification sheet, is available from Eaton. Access the Cam-Lok J Series catalog page and the E1017-33 datasheet to verify ratings, cable sizes, installation guidelines, and compatibility with 750 kcmil cables for your project.
