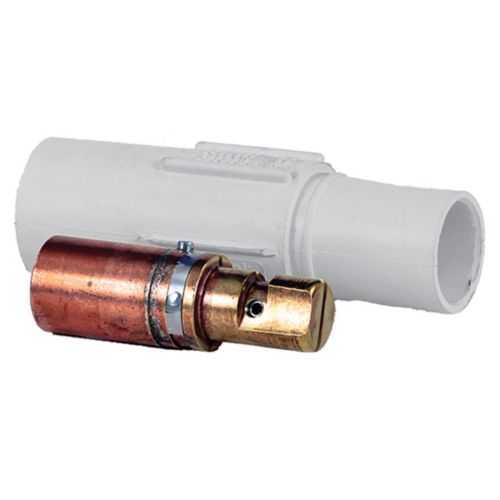

Eaton Cam-Lok J Series E1017-33K Plug - 690A, 600V, NEMA 4
Part Number: E1017-33K
Quick Summary
The Eaton Cam-Lok J Series E1017 plug is a high-current power connector designed for heavy-duty industrial equipment. Engineers often face downtime and unsafe field terminations when mating large cables in harsh environments. This plug delivers NEMA 4 enclosure protection, NEC/CEC compliance, and ordinary/non-hazardous location suitability for outdoor and washdown use. Coupled with a 690A continuous rating, 750 kcmil cable capacity, and 600 Vac/dc, it offers reliable performance with minimal maintenance and faster installation for procurement teams. This combination supports scalable power distribution in manufacturing lines, data centers, and process facilities. With easy sourcing of Cam-Lok compatible receptacles, the E1017-33K reduces the risk of mis-matched connectors and accelerates maintenance scheduling.
Product Information
Extended Description
E1017-33K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 750 kcmil, Brown, Crimp, Brass contacts, Male, Rubber, Single packaged unit, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-33K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275988058
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
750 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Brown
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-33K
High current capability and large cable support translate to fewer connections and simplified power distribution, enabling operations to run closer to peak capacity while reducing voltage drop over long runs. This directly lowers wiring complexity, labor costs, and commissioning time for large motors and heavy machinery. The vulcanized rubber body, brass contacts, and crimp connection deliver robust, weather-resistant terminations that withstand outdoor and washdown environments, improving reliability and reducing corrective maintenance in ordinary/non-hazardous locations. The compact yet sturdy package—7 inches in length, 2.69 inches in width and height, and 4.16 pounds—facilitates easy handling, quick mating, and stable alignment during installation and servicing. Compliance with NEC/CEC and a NEMA 4 rating ensures regulatory alignment and safe outdoor use. The single packaged unit design simplifies procurement and inventory, lowering total cost of ownership for OEMs and MRO teams. Compatibility with Cam-Lok receptacles enables fast replacements and streamlined field service, while supporting long-term lifecycle cost reductions in demanding facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-33K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-33K?
Enquire Now
FAQs
Use only Cam-Lok J Series receptacles that match the E1017-33K plug. Crimp the 750 kcmil conductors with the correct tooling and torque as specified in the EB 94 installation sheet. Verify correct polarity, secure brass contacts, and ensure a full, clean engage during mating to prevent arcing and ensure reliable current transfer up to 690A.
The E1017-33K is rated for up to 690A continuous and supports 750 kcmil cables, with a 600 Vac/dc rating. It uses a vulcanized rubber body, brass contacts, a crimp connection, and is male by design. This configuration provides robust power transfer in ordinary/non-hazardous locations while aligning with NEC/CEC standards.
It is well-suited for large motors, heavy machinery, and outdoor power distribution panels in manufacturing, mining, and process industries. The J Series plug handles high current with 750 kcmil cables and offers a single packaged unit for convenience, making it ideal for OEMs and maintenance teams requiring durable, ready-to-mate connections in demanding environments.
The E1017-33K features NEC/CEC compliance and a NEMA 4 rating, with an area classification of Ordinary/Non-Hazardous Locations. This combination supports safe outdoor use and washdown environments, reducing regulatory overhead and simplifying acceptance testing for industrial installations.
Adopting this single packaged Cam-Lok plug reduces assembly time, minimizes field terminations, and lowers downtime during equipment changes. With up to 690A capability and 600 Vac/dc rating, the system delivers reliable performance over longer maintenance intervals, lowering labor costs and improving uptime in continuous-run facilities.
