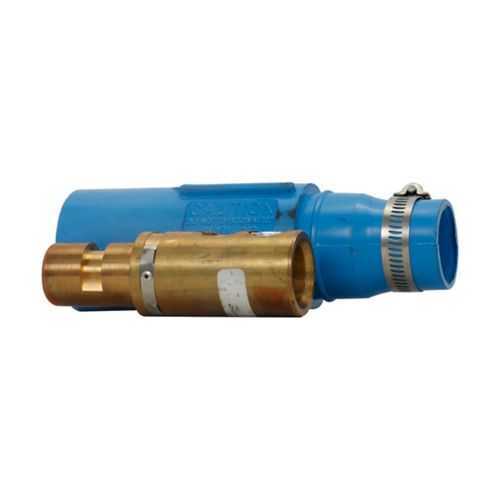

Eaton Cam-Lok E1017-350K plug - 545A, 600 Vac/dc
Part Number: E1017-350K
Quick Summary
The Eaton Cam-Lok E1017-350K plug provides robust high-current connections for heavy electrical feeders in industrial environments. In field installations, mismatched components and difficult terminations can trigger costly downtime and unsafe connections. This plug meets NEC/CEC standards and carries a NEMA 3R rating for reliable performance in ordinary and non-hazardous locations, while its rubber body and brass contacts withstand vibration and corrosion. It presents a durable, field-ready solution for Cam-Lok J Series systems, and supports large power cables without sacrificing ease of installation. By combining rugged construction with precise termination options, it helps equipment builders and maintenance teams reduce wrench time and improve overall wiring and connectivity reliability.
Product Information
Extended Description
E1017-350K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Black, Double set screw, Brass contacts, Male, Rubber, Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-350K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275882608
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Black
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-350K
Feature: High current capability up to 545A continuous with a cable size of 350-500 kcmil. Business Impact: Enables fewer parallel connections and simplifies large-gear motor feeds, reducing panel complexity and installation time. Application: Heavy machinery, pumping stations, and plant-wide power distribution. Feature: 600 Vac/dc voltage rating. Business Impact: Broad compatibility with AC and DC systems, minimizing the need for multiple connector types and accelerating commissioning. Application: Industrial automation and process control networks. Feature: Rubber non-vulcanized body with brass contacts and double set screws. Business Impact: Superior vibration resistance and secure termination to maintain low-resistance, fault-free connections. Application: Harsh plant environments and outdoor installations. Feature: Compact J Series form factor with 7 in length and 2.69 in height/width. Business Impact: Easy handling and predictable clearance in restricted dashboards and cable trays. Application: Retrofit projects and new builds with limited space. Feature: Single packaged unit with color coding in black. Business Impact: Simplifies inventory management and minimizes field assembly steps, improving reliability and reducing mis-wiring risk. Application: Standardized component kits for wiring & connectivity assemblies. Certification/Compliance Context: NEC/CEC conformity, NEMA 3R rating, and Ordinary/Non-Hazardous Locations classification provide safety and regulatory alignment for industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-350K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-350K?
Enquire Now
FAQs
The E1017-350K male plug is designed to mate with Cam-Lok J Series receptacles intended for 350-500 kcmil cables. Use identical voltage and amperage ratings, and tighten the double set screws to ensure a secure, vibration-resistant connection. This pairing supports straightforward field termination and consistent electrical performance in industrial wiring.
The E1017-350K is rated up to 545A continuous and supports a voltage rating of 600 Vac/dc. This combination makes it suitable for heavy feeders and mixed AC/DC installations, enabling reliable power delivery without the need for multiple connector types in many industrial layouts.
Yes. The connector carries a NEMA 3R rating and is intended for Ordinary/Non-Hazardous Locations. This helps ensure safe operation in typical plant environments, with outdoor-friendly performance when properly installed and protected from direct exposure to harsh conditions.
Plan for 350-500 kcmil cables and a 7 in long mating profile. Use the double set screws to secure brass contacts and ensure correct torque on each fastener. The unit is a single packaged plug, which simplifies inventory and reduces assembly steps, contributing to faster commissioning and easier maintenance.
The plug’s high-current capability, rugged rubber body, and brass contacts minimize fault rates and downtime in heavy-duty power feeds. With fewer components to inventory and simpler terminations, maintenance teams experience quicker service, improved reliability, and lower total cost of ownership in large-scale electrical distribution.
