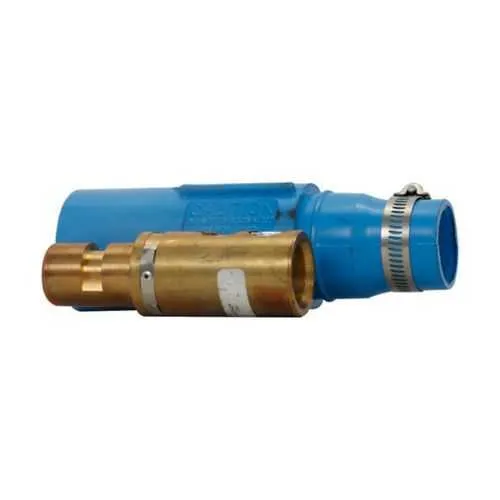

Eaton Cam-Lok J Series E1017 plug - 3R NEMA rated
Part Number: E1017-351K
Quick Summary
The Eaton Cam-Lok J Series E1017 plug provides high-current power connections for industrial equipment. Manufacturers and integrators struggle with reliable connectors that resist vibration while handling up to 545A and 350–500 kcmil cables. It complies with NEC/CEC standards and uses a NEMA 3R enclosure for ordinary/non-hazardous locations, providing safe, durable operation. With rugged brass contacts, double-set-screw termination, and rubber housing, it reduces downtime and simplifies installation across harsh industrial environments. Design decisions such as color-coding (yellow) and single packaged unit availability support field identification and streamlined stock management. This makes procurement faster for OEMs and service teams, while ensuring a robust, field-installable solution for factory automation and mobile power distribution.
Product Information
Extended Description
E1017-351K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Yellow, Double set screw, Brass contacts, Male, Rubber, Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-351K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275883414
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Yellow
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-351K
Feature: High current capability up to 545A continuous and support for 350-500 kcmil cables. Business Impact: Enables direct connections to large motors and feeders, minimizing splices and reducing overall installation time. Application: Heavy industrial setups such as conveyor lines, pumps, and mining equipment where high amperage and large conductor sizes are required. Feature: 600 Vac/dc voltage rating. Business Impact: Provides safe, versatile operation across AC and DC power rails, lowering protection and insulation concerns. Application: Power distribution panels and outdoor electrical installations in factories and outdoor facilities. Feature: Double set screw connection. Business Impact: Delivers a secure, vibration-resistant termination that stays tight under harsh conditions, reducing maintenance cycles. Application: Environments with motor start/stop transients or heavy equipment vibrations. Feature: Brass contact material. Business Impact: Improves conductivity and long-term durability, delivering reliable current transfer over the life of the connector. Application: High-current assemblies in automation and process industries. Feature: NEMA 3R enclosure (Ordinary/Non-Hazardous). Business Impact: Enables outdoor and protected indoor use with compliant protection against rain and dust ingress. Application: Outdoor plant floors, remote equipment pads, and unprotected industrial interiors. Feature: Non-vulcanized rubber body. Business Impact: Offers flexibility and resistance to field wear, easing installation and reconfiguration. Application: Reconfigurable power distribution with frequent maintenance access. Feature: Color-coded yellow and single packaged unit. Business Impact: Improves field identification, reduces mis-mating, and simplifies stocking across warehouse and job sites. Application: Quick-look asset management and standardized spares for OEMs and service teams.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-351K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-351K?
Enquire Now
FAQs
The E1017-351K is designed to mate with Eaton Cam-Lok J Series single-pole plugs and their corresponding receptacles. It uses a secure double-set-screw connection and brass contacts to ensure a reliable, vibration-resistant fit. When pairing, verify cable size (350-500 kcmil) and voltage rating (600 Vac/dc) to ensure a proper match for your installation.
This plug supports up to 545A continuous current and is rated for 350-500 kcmil cables. The combination of high amperage and large conductor size makes it suitable for feeding large motors and heavy equipment in industrial settings, reducing the need for intermediate splices and simplifying power distribution.
It adheres to NEC/CEC standards and features a NEMA 3R enclosure, suitable for Ordinary/Non-Hazardous Locations. The 600 Vac/dc rating adds versatility for mixed AC/DC systems, while the rubber housing provides environmental resilience in factory floors and outdoor installations.
Ensure mating receptacles are compatible with the J Series E1017 plug and that the conductor size is within 350-500 kcmil. Use the double-set-screw termination as specified and verify enclosure protection (NEMA 3R) for the installation environment. The rubber body aids field flexibility during assembly, and color-coding (yellow) assists in quick identification.
Brass contacts provide low contact resistance and durability, while a non-vulcanized rubber body accommodates field flex and temperature variations. The single packaged unit simplifies stocking and replacement, reducing downtime during maintenance and replacements in automation, power distribution, and mobile power setups.
