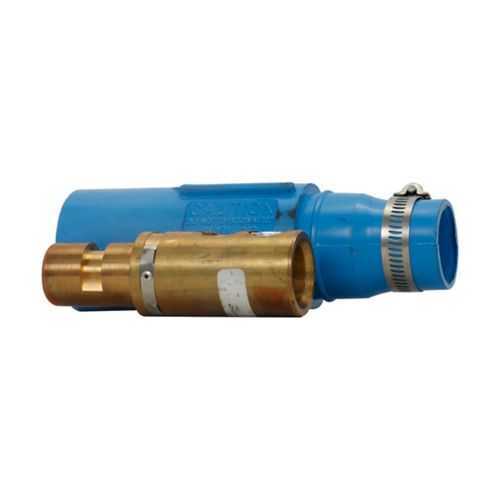

Eaton Cam-Lok J Series E1017-353K Plug - 600 Vac/dc
Part Number: E1017-353K
Quick Summary
The Eaton Cam-Lok J Series E1017-353K plug provides high-current, reliable power connections for heavy equipment in industrial settings. A common challenge is selecting connectors that endure vibration, moisture, and mis-mating without downtime. It is designed to meet NEC/CEC standards and carries a NEMA 3R rating for outdoor use, with ordinary/non-hazardous location suitability. The E1017-353K delivers compatibility with Cam-Lok J Series receptacles and is suitable for both new installations and retrofits, helping shorten lead times. Engineers will appreciate the orange housing for quick visual identification and the rugged, field-friendly assembly that supports large conductor sizes and tight installation tolerances.
Product Information
Extended Description
E1017-353K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Orange, Double set screw, Brass contacts, Male, Rubber, Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-353K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275883438
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Orange
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-353K
Feature: 350-500 kcmil cable compatibility and 600 Vac/dc rating enables large motor feeders to be served with a single, reliable plug. The business impact is reduced part counts and fewer connection failures, improving uptime in critical production lines. This is ideal for motor control centers and heavy equipment distribution where space is constrained and reliability is non-negotiable. Feature: Rubber housing with non-vulcanized design, orange color, double set screw, brass contacts, and a single packaged unit enhances durability and visibility. The business impact is safer, more secure mating in harsh environments and easier field servicing. This supports outdoor installations, reduces maintenance cycles, and improves first-pass installation quality. Feature: NEC/CEC compliance and a NEMA 3R rating ensure regulatory alignment and weather resistance for ordinary/non-hazardous locations. The business impact is lower compliance risk and greater flexibility across plant/yard environments. Feature: Dimensional stability and weight—7 in length, 2.69 in width and height, 4.16 lb weight—facilitate space planning and screw-tight, repeatable connections in dense panels. The business impact is faster, more repeatable assembly and streamlined spare-part planning. Feature: Compatibility with Cam-Lok J Series receptacles and color-coding for quick identification supports rapid MRO workflows and reduced downtime during maintenance or expansion.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-353K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-353K?
Enquire Now
FAQs
Power should be de-energized before installation. Verify compatibility with Cam-Lok J Series; strip conductors to the correct size for 350-500 kcmil, insert into the double set screw contacts, and tighten screws evenly to ensure a secure, vibration-resistant connection. Confirm the orange housing is properly seated and that brass contacts are fully seated for reliable current transfer. Finally, perform a test mating with the corresponding receptacle to verify proper alignment and seating.
Yes. The plug is designed for ordinary/non-hazardous locations and carries a NEMA 3R rating, enabling reliable operation in outdoor environments. The rubber housing provides weather resistance, and the orange color aids visibility during outdoor installation and maintenance. Ensure mating components are compatible with Cam-Lok J Series to maintain environmental protection and electrical performance.
The E1017-353K complies with NEC/CEC standards and features a NEMA 3R rating for protection against rain and outdoor conditions. It is intended for ordinary/non-hazardous locations, ensuring regulatory alignment for both indoor and outdoor power distribution within industrial facilities.
The plug measures 7 inches in length with cross-sectional dimensions of 2.69 inches in height and 2.69 inches in width. It weighs 4.16 pounds. These practical dimensions support compact panel layouts and straightforward mounting alongside Cam-Lok J Series receptacles.
For maintenance, inspect the double set screws and brass contacts for tightness and wear during routine preventive maintenance. The single packaged unit design simplifies stock management and quick replacement in the field. Plan for availability of compatible receptacles and ensure mating surfaces remain clean and free of debris to preserve current transfer efficiency and reduce downtime.
