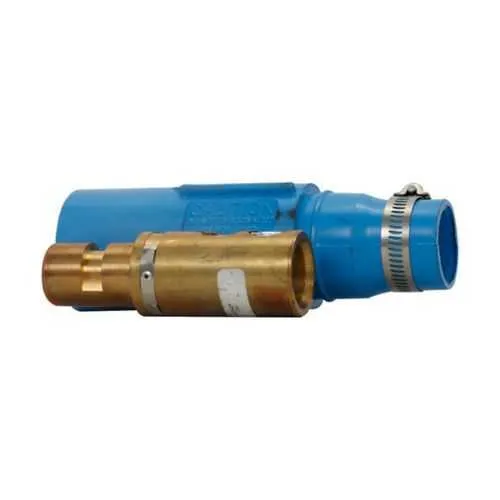

Eaton Crouse-Hinds Cam-Lok E1017-354 plug - 600 Vac/dc
Part Number: E1017-354
Quick Summary
Eaton Crouse-Hinds Cam-Lok E1017-354 plug provides high-current, secure power connections for industrial equipment and control panels. Engineers often confront unreliable connectors in vibrations, moisture, or dirty environments, leading to unplanned downtime and rising maintenance costs. This Cam-Lok J Series solution aligns with NEC/CEC standards, is rated for NEMA 3R enclosures, and is suitable for ordinary/non-hazardous locations. With a rugged rubber body, brass contacts, and double-set-screw termination, it enables faster, safer field installation and a lower total cost of ownership for mission-critical power feeds.
Product Information
Extended Description
E1017-354 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Green, Double set screw, Brass contacts, Male, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-354
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275132994
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Green
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-354
Feature: High current capability. Business Impact: Supports up to 545A continuous, enabling large feeder applications without frequent re-terminations. Application: Heavy motors and main power feeds in industrial plants. The result is reduced downtime and improved uptime when powering high-load equipment. Feature: Large cable compatibility. Business Impact: Accepts 350-500 kcmil cables for flexible, scalable power routing. Application: Mining, water treatment, and processing lines where feeder sizing matters. Feature: Secure mechanical connection. Business Impact: Double set screw design provides robust retention in vibration-prone environments. Application: Outdoor and harsh installations with reliable mating under dynamic conditions. Feature: Durable materials. Business Impact: Brass contacts and rubber housing offer corrosion resistance and long service life, lowering maintenance cycles. Application: Industrial environments with exposure to humidity or dust. Feature: Compliance and protection. Business Impact: NEC/CEC compliance and NEMA 3R rating simplify approval workflows and enclosure protection. Application: Facility-wide standardization and risk mitigation. Feature: Quick reference and installation support. Business Impact: J Series compatibility and EB 94 instructions accelerate commissioning and reduce on-site errors. Application: Field upgrades and rebuilds with minimal downtime.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-354
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-354?
Enquire Now
FAQs
The E1017-354 Cam-Lok plug is designed for 350-500 kcmil feeder cables and uses a double-set-screw connection with brass contacts, ensuring a secure, vibration-resistant mating. It pairs with Cam-Lok J Series receptacles and is specified for installation in ordinary/non-hazardous locations, simplifying panel integration and stocking on industrial jobs.
This plug is rated for up to 545A continuous current and supports a voltage of 600 Vac/dc. These ratings enable direct feeder connections to high-power equipment, reducing the need for multiple smaller connectors and improving overall system efficiency in power-distribution schemes.
Ideal for ordinary/non-hazardous locations requiring robust, high-current connections. With a NEMA 3R enclosure rating and NEC/CEC compliance, it suits indoor and protected outdoor installations such as control panels, mining conveyors, water treatment skids, and large motors where reliable quick-connect power is essential.
The E1017-354 adheres to NEC/CEC standards and features a NEMA 3R rating, making it suitable for non-hazardous environments and protecting against rain or incidental moisture. It is designed for compatibility with CAM-Lok J Series components, facilitating compliance during system design and commissioning.
The plug’s double-set-screw termination, durable brass contacts, and rubber housing simplify installation and improve vibration resistance, reducing re-terminations. Access to installation sheets and catalog pages accelerates field work, lowering labor costs and enabling faster project completion, with long-term savings from fewer maintenance events and extended service life.
