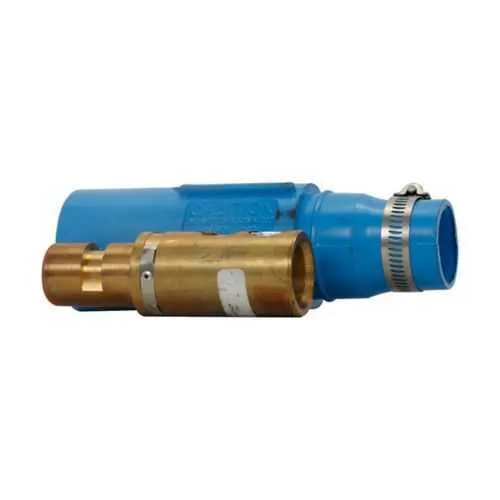

Eaton Cam-Lok J Plug E1017-355K - 3R/600 Vac
Part Number: E1017-355K
Quick Summary
The Eaton Cam-Lok J Plug E1017-355K provides fast, secure power connections for heavy-duty industrial equipment. In practice, installers face downtime from loose contacts and misaligned terminations when handling high-current feeders. This plug combines brass contacts, double set screws, and a rugged rubber housing to deliver reliable performance at 600 Vac/dc. It is NEC/CEC compliant, carries a NEMA 3R rating, and is suitable for ordinary/non-hazardous locations, reducing risk and rework. Designed for Cam-Lok J Series mating receptacles, its single-packaged unit format helps accelerate installation and shrink total cost of ownership. This combination supports safer handling, faster changeovers, and consistent torque when securing 350-500 kcmil cables.
Product Information
Extended Description
E1017-355K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, White, Double set screw, Brass contacts, Male, Rubber, Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-355K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275883452
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
White
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-355K
Feature: Up to 545A continuous amperage. Business impact: Enables large motor loads and feeder circuits with minimal voltage drop, reducing conductor sizing and downtime. Application: Ideal for feeder connections on 350-500 kcmil cables in 600 Vac/dc systems across manufacturing lines and processing plants. Feature: Cable size 350-500 kcmil. Business impact: Directly terminates large conductors, eliminating splice points and weak links. Application: Heavy power distribution panels, motor starters, and bus bar connections in industrial facilities. Feature: Double set screw connection and brass contacts. Business impact: Provides secure, vibration-resistant terminations with reliable conductivity and longer service life. Application: High-vibration environments such as milling, stamping, and outdoor installations. Feature: Non-vulcanized rubber material. Business impact: Flexible, durable housing with good environmental resistance and lifecycle longevity. Application: Versatile use in mixed indoor/outdoor facilities and controlled environments. Feature: NEMA 3R rating and NEC/CEC compliance. Business impact: Supports weather-resistant, code-compliant operation and safer maintenance. Application: Facilities requiring regulatory adherence and safe high-current power distribution in ordinary/non-hazardous locations. Feature: Single packaged unit. Business impact: Reduces stocking complexity and installation steps, lowering maintenance time and on-site labor. Application: OEMs and integrators delivering pre-assembled power-connectivity solutions.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-355K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-355K?
Enquire Now
FAQs
The E1017-355K is designed for Cam-Lok J Series mating receptacles. It uses a double set screw connection and brass contacts to ensure a secure, vibration-resistant termination, delivering reliable power transfer when paired with compatible J Series receptacles.
It supports 350-500 kcmil copper conductors and handles up to 545A continuous with a voltage rating of 600 Vac/dc. This makes it suitable for large motors, feeders, and high-current distribution in industrial facilities.
Yes. The connector carries a NEMA 3R rating and is intended for ordinary/non-hazardous locations. It can be used in weather-protected outdoor installations when properly mated and installed according to applicable codes.
Key factors include using the double set screw terminals for a secure connection, selecting the correct 350-500 kcmil cable, and ensuring proper torque on each screw. The single packaged unit design also reduces assembly time and stocking complexity, improving overall uptime.
The E1017-355K adheres to NEC/CEC standards, has a NEMA 3R rating, and supports ordinary/non-hazardous locations. These certifications help ensure safe operation, regulatory compliance, and reliability in standard industrial environments.
