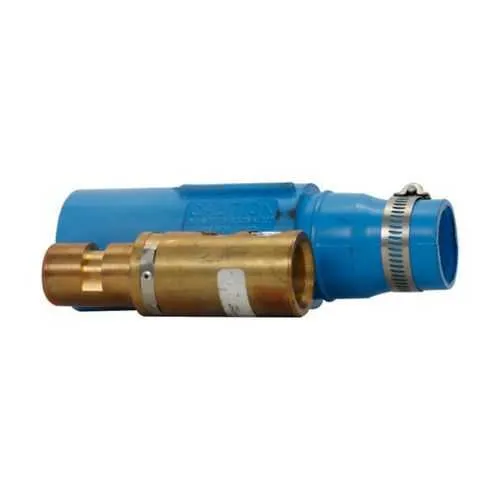

Eaton Crouse-Hinds E1017-356 Cam-Lok J Plug - 545A
Part Number: E1017-356
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1017-356 plug delivers high-current connections for power distribution panels and industrial equipment. Installers often face bulky, difficult-to-terminate connectors that slow commissioning and elevate fault risk in demanding environments. This E1017-356 assembly is rated for Up to 545A continuous and accepts 350-500 kcmil cable, featuring a durable blue rubber housing and brass contacts for long-term reliability. It complies with NEC/CEC standards and carries a NEMA 3R enclosure rating for ordinary/non-hazardous locations. By combining a robust double-set-screw termination with non-vulcanized rubber, it reduces downtime and maintenance while delivering strong value for panel builders and system integrators.
Product Information
Extended Description
E1017-356 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Blue, Double set screw, Brass contacts, Male, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-356
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133014
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-356
Feature: High-current capability up to 545A continuous. Business Impact: Supports large motors and feeders with minimal voltage drop and reduced thermal stress. Application: Ideal for plant power distribution, main feeders, and high-demand equipment. Feature: Cable size compatibility 350-500 kcmil. Business Impact: Enables direct connection of heavy-gauge cables, reducing splice points and inventory needs. Application: Suitable for mining, steel, and processing facilities with demanding feeders. Feature: Double set screw with brass contacts. Business Impact: Provides secure, vibration-resistant connections and corrosion resistance, lowering maintenance costs. Application: Outdoor and vibration-prone installations, Cam-Lok mating with J-series receptacles. Feature: Rubber non-vulcanized housing. Business Impact: Delivers flexibility and durability in varying temps and moisture, simplifying field terminations. Application: Harsh industrial environments with frequent assembly/disassembly. Feature: Voltage rating 600 Vac/dc. Business Impact: Supports mixed AC/DC systems, reducing part proliferation and risk of mis-matching components. Application: Industrial controls, conveyors, and power distribution panels. Feature: Compliance and enclosure performance. Business Impact: NEC/CEC adherence plus NEMA 3R suitability ensures regulatory approval and outdoor reliability. Application: Plant floors, loading docks, and ordinary/non-hazardous locations across industries.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-356
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-356?
Enquire Now
FAQs
The E1017-356 is designed to mate with Cam-Lok J Series receptacles and other compatible Cam-Lok plugs within the same series. Ensure a proper fit by using the matching J-series receptacle, and verify the mating parts support 350-500 kcmil conductors and a double-set-screw termination for secure, vibration-resistant connections.
The E1017-356 is rated for up to 545A continuous current and supports a voltage rating of 600 Vac/dc. This combination enables reliable high-current performance for large feeders and mixed AC/DC systems in industrial applications while maintaining a compact plug design.
Yes. The part carries a NEMA 3R enclosure rating and an area classification of Ordinary/Non-Hazardous Locations, making it appropriate for typical plant floors, outdoor enclosures, and non-hazardous environments where robust environmental tolerance is needed.
The E1017-356 complies with NEC/CEC standards for electrical installations and provides NEMA 3R-rated protection. These certifications support code compliance and reliable operation in ordinary, non-hazardous locations commonly found in industrial facilities.
Use the double-set-screw termination with brass contacts to ensure a secure connection and minimize loosening due to vibration. Mating only with compatible J-series receptacles, selecting 350-500 kcmil conductors, and following torque guidelines reduce maintenance, downtime, and warranty costs while improving system reliability and lifecycle ROI.
