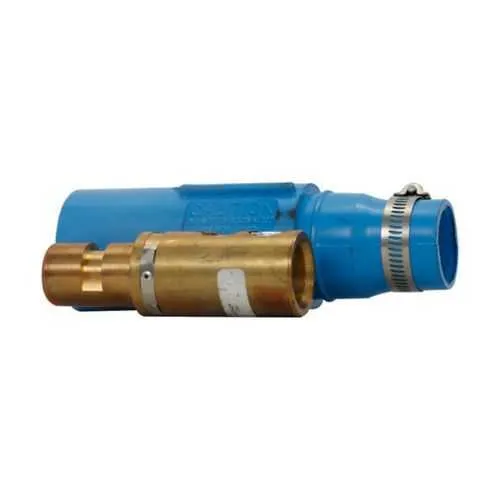

Eaton Crouse-Hinds E1017-356K Cam-Lok J Plug - 600 Vac/dc
Part Number: E1017-356K
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1017-356K plug connects high-current power distribution for industrial equipment with confidence. It is designed to deliver reliable, quick mating in demanding environments where downtime is costly. This plug supports 350–500 kcmil cables and continuous ratings up to 545A, with a rubber, non-vulcanized body and brass contacts for lasting conductivity. In addition to meeting NEC/CEC standards, it carries NEMA 3R compatibility for protected outdoor or damp locations, and its ordinary/non-hazardous area classification helps ensure compliant installation in many facilities. By combining rugged construction with simple installation and a single-packaged format, this connector reduces maintenance cycles and improves overall system uptime while aligning with your procurement goals for robust, scalable power interconnects.
Product Information
Extended Description
E1017-356K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Blue, Double set screw, Brass contacts, Male, Rubber, Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-356K
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275883469
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Blue
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-356K
Feature: High current rating enables up to 545A continuous operation. Business Impact: Reduces the need for multiple parallel connections, minimizes cabinet footprint, and improves reliability for motor feeders in demanding production lines. Application: Ideal for large industrial feeders and high-load equipment in manufacturing and processing facilities. Feature: Cable size compatibility of 350-500 kcmil. Business Impact: Supports large feeders with a single connector, reducing splicing and inventory while speeding up installation. Application: Power distribution runs in facilities with sizable motor loads and high-current needs. Feature: Rubber housing with brass contacts; non-vulcanized; blue color. Business Impact: Delivers durable, corrosion-resistant conductivity and easy visual identification for quick inspections. Application: Harsh environments and damp locations where reliable contact is essential. Feature: Double set screw connection; male gender. Business Impact: Ensures secure mating under vibration and mechanical stress, lowering misalignment risk. Application: Heavy-duty interconnects in mobile or permanently installed equipment. Feature: 600 Vac/dc rating with 3R enclosure compatibility; NEC/CEC compliant; Ordinary/Non-Hazardous Locations. Business Impact: Provides regulatory alignment and safe operation in common facility environments, reducing compliance overhead. Application: Field installs across non-hazardous industrial spaces. Feature: Single packaged unit. Business Impact: Simplifies procurement, stock replenishment, and field maintenance by avoiding assembly steps. Application: Maintenance crews benefit from faster replacements and reduced downtime.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-356K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-356K?
Enquire Now
FAQs
The E1017-356K is designed for 350-500 kcmil copper conductors. Its rubber housing and brass contacts provide reliable performance for high-current power distribution, and the double set screw connection ensures secure mating even in vibration-prone environments.
Install with the connector mated to its Cam-Lok receptacle counterpart, ensuring the double set screws are tightened to secure the cable conductors. Use in non-hazardous locations per NEC/CEC guidelines and within a NEMA 3R enclosure when exposed to moisture or outdoor conditions.
Yes, the E1017-356K supports NEMA 3R enclosures and is intended for Ordinary/Non-Hazardous Locations. This makes it suitable for many outdoor or damp environments where robust protection and reliable interconnection are required.
The E1017-356K adheres to NEC/CEC standards and is compatible with NEMA 3R enclosure requirements. It is designed for ordinary/non-hazardous locations, giving you confidence in compliance for common industrial installations.
With up to 545A continuous rating and 350-500 kcmil cable compatibility, the E1017-356K reduces the need for multiple interconnects, lowers downtime through faster mating, and simplifies maintenance with a single packaged unit. This translates to lower labor costs and more reliable motor and feeder performance over time.
