Eaton Crouse-Hinds E1017-357 plug - 600 Vac/dc
Part Number: E1017-357
Quick Summary

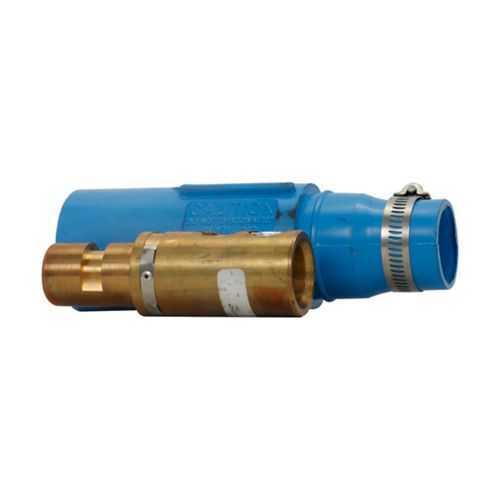

Eaton Crouse-Hinds E1017-357 plug is a Cam-Lok J Series connector for high-current power distribution. Engineers often struggle with secure, vibration‑prone electrical links in rugged industrial environments. This plug aligns with NEC/CEC standards, carries a NEMA 3R rating, and is suitable for ordinary/non-hazardous locations, ensuring compliance and safety. With a 350-500 kcmil cable size and a continuous current rating up to 545A, it supports large motor feeds and heavy equipment connections. The rubber body is non-vulcanized, and brass contacts with double-set screws provide reliable contact and repeatable torque for long service life.
Product Information
Extended Description
E1017-357 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Brown, Double set screw, Brass contacts, Male, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-357
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133021
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Male
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-357
High-current capability translates to fewer terminations and smaller enclosures. Up to 545A continuous rating and 350-500 kcmil cable size reduce the number of parallel connections in large motors and feeders, saving cabinet space and installation time. This is ideal for pump skids, conveyor drives, and large processing equipment. The 600 Vac/dc rating offers versatile use across AC and DC systems, simplifying inventory and cross-application deployment. Brass contacts and double-set screws minimize contact resistance and ensure repeatable, secure torque, improving long-term reliability in vibrating environments. The non-vulcanized rubber body provides rugged durability, while the Cam-Lok mating interface enables fast, dependable field installation and a robust interlock for routine maintenance. Compatibility with J Series receptacles supports scalable power distribution architectures in industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-357
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-357?
Enquire Now
FAQs
The E1017-357 plug supports 350-500 kcmil conductors and a continuous current rating up to 545A, making it suitable for high‑current motor feeds and large equipment connections.
Yes. It features an Ordinary/Non-Hazardous area classification and a NEMA 3R rating, providing weather protection suitable for many indoor/outdoor installations in non-hazardous environments.
Installation uses a double-set screw connection with brass contacts, rubber non-vulcanized housing, and a 7 in length with 2.69 in width and height, aiding secure mating and repeatable torque during field assembly per EB 94 guidance.
The E1017-357 adheres to NEC/CEC standards and carries a NEMA 3R rating, aligning with regulatory requirements for reliable, code-compliant power connections in industrial applications.
Refer to Eaton’s Cam-Lok J Series literature and datasheets, including the Cam-Lok catalog page and the E1017-357 datasheet, plus EB 94 installation instructions for step-by-step guidance.
