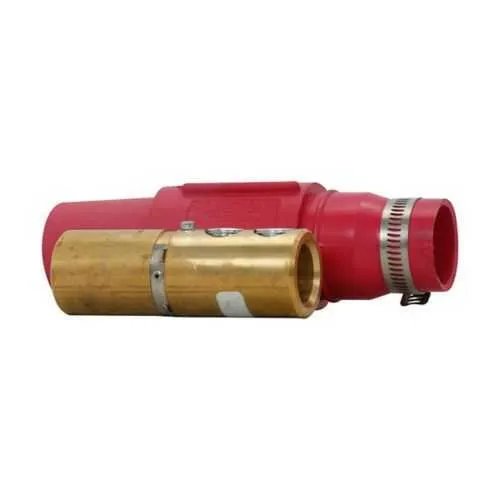

Eaton Crouse-Hinds E1017-375 Cam-Lok J Series Plug - 3R
Part Number: E1017-375
Quick Summary
Eaton Crouse-Hinds Cam-Lok J Series E1017-375 plug securely connects high-current power in industrial equipment. Many engineers struggle to maintain reliable connections under vibration, moisture, and heavy-duty currents. This plug is rated up to 545A continuous, 600 Vac/dc, with a NEMA 3R housing and NEC/CEC conformity. Its rubber, non-vulcanized body, brass contacts, and double-set-screw design deliver robust performance, while 350-500 kcmil cable support. With the J Series, you gain secure, serviceable power connections that minimize downtime and simplify maintenance. Ideal for switchgear, generators, and heavy motors in ordinary locations. Designed for easy field assembly with existing Cam-Lok components. Trusted for consistent performance across industries.
Product Information
Extended Description
E1017-375 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Black, Double set screw, Brass contacts, Female, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-375
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133045
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Black
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-375
Feature → Business Impact → Application: Up to 545A continuous rating reduces the need for multiple parallel connections, delivering cost savings and simplified protection schemes in large feeders and motor drives. Application: Switchgear, motor control centers, and heavy equipment where reliable power delivery is critical. Feature → Business Impact → Application: 350-500 kcmil cable compatibility enables direct termination of large feeders, reducing junction points and potential fault sites. Application: Industrial distribution panels and generator connections. Feature → Business Impact → Application: 600 Vac/dc rating enables cross-system compatibility and safer operation across mixed voltage environments. Application: Hybrid systems and equipment with mixed AC/DC requirements. Feature → Business Impact → Application: Double-set-screw terminals ensure vibration-resistant, secure terminations, minimizing re-termination needs in environments with continuous motion. Application: Portable machinery and outdoor installations. Feature → Business Impact → Application: Brass contact material provides low contact resistance and longevity, improving electrical efficiency and reducing maintenance cycles. Application: High-current power connections. Feature → Business Impact → Application: Rubber non-vulcanized housing delivers field-friendly termination and flexibility, enhancing installer productivity. Application: On-site assemblies and field repairs. Feature → Business Impact → Application: NEMA 3R enclosure suitability and NEC/CEC compliance reduce regulatory risk and support safe operation in ordinary locations. Application: Outdoor and semi-exposed industrial spaces.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-375
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-375?
Enquire Now
FAQs
To install the E1017-375 with 350-500 kcmil conductors, prepare the cable per your facility’s termination practices, insert into the plug ensuring brass contact engagement, tighten both set screws, and verify a secure, low-resistance connection. Use compatible Cam-Lok receptacles and maintain rubber housing integrity. Confirm the assembly resides in ordinary/non-hazardous locations per NEC/CEC and operate within the 600 Vac/dc rating.
The E1017-375 is rated up to 545A continuous and 600 Vac/dc, supports 350-500 kcmil conductors, and features a NEMA 3R enclosure. It complies with NEC/CEC standards and is suitable for ordinary/non-hazardous locations, aligning with typical industrial power distribution and safety requirements.
Yes. The connector carries a NEMA 3R rating, indicating suitability for outdoor or semi-exposed environments in ordinary/non-hazardous locations. It should not be used in hazardous locations, and installations should comply with NEC/CEC guidance and local codes.
The Cam-Lok J Series uses a double-set-screw termination and brass contacts, enabling secure, repeatable connections that resist loosening under vibration. Quick mating with compatible Cam-Lok accessories reduces disconnect/reconnect time, simplifies field servicing, and lowers maintenance costs by minimizing re-termination and exposure to faults.
Plan to match E1017-375 with compatible Cam-Lok J Series receptacles and mating components sized for 350-500 kcmil conductors. Ensure enclosure rating, voltage, and current ratings align with system requirements, and confirm the assembly resides in ordinary/non-hazardous locations per NEC/CEC practices to maintain compliance and reliability.
