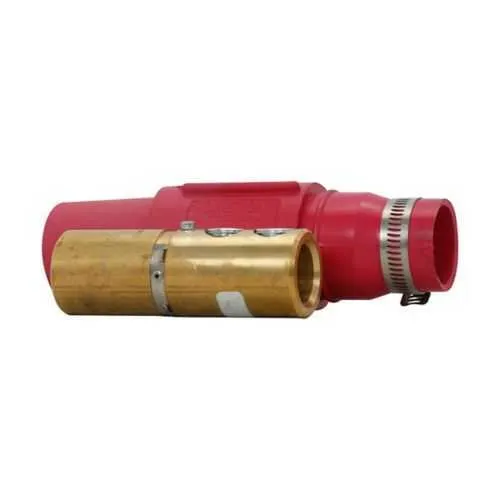

Eaton Crouse-Hinds E1017-376 Plug - Up to 545A, 600 Vac/dc
Part Number: E1017-376
Quick Summary
The Eaton Crouse-Hinds E1017-376 Plug is a Cam-Lok connector designed for high-current power delivery in industrial facilities. Wiring in harsh environments often suffers from unreliable connections and prolonged downtime; this plug offers a robust, double-set-screw termination for secure, quick mating. It complies with NEC/CEC standards and features a NEMA 3R rating for outdoor or rugged locations, while its Ordinary/Non-Hazardous classification supports non-hazardous installations. With a 350–500 kcmil cable range and up to 545A continuous rating at 600 Vac/dc, it delivers serious power-handling capability. Businesses benefit from reduced installation time, improved reliability, and streamlined spares for Cam-Lok J Series, brass-contact, yellow connectors in industrial wiring systems.
Product Information
Extended Description
E1017-376 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Yellow, Double set screw, Brass contacts, Female, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-376
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275862655
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Yellow
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-376
High-current capability and robust contact design: The E1017-376 supports up to 545A continuous with a 600 Vac/dc rating, enabling direct connection of heavy equipment without paralleling. This reduces installation complexity and improves system reliability, especially for feeders and motors using 350–500 kcmil cable alongside brass contacts and a double-set-screw termination. Application: plant power feeds, outdoor equipment, and high-demand machinery. Cable compatibility and robust assembly: The 350–500 kcmil range matches large-diameter power cables, minimizing rework and ensuring consistent torque through dual-set screws. Application: rapid field terminations for Cam-Lok J Series in mining or process automation. Safety and compliance: NEMA 3R-rated enclosure compatibility with NEC/CEC standards and Ordinary/Non-Hazardous locations provides a compliant, weather-resistant solution for outdoor installations. Application: outdoor panels and equipment bays; Color-coded yellow plastics improve visibility during installation. Durability and materials: Rubber non-vulcanized body with brass contacts delivers durable mating and resistance to vibrational wear. Application: long-term service in demanding environments. Documentation and compatibility: Catalog pages and installation sheets from Eaton support quick procurement and accurate field replacements. Application: project planning and maintenance dependability.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-376
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-376?
Enquire Now
FAQs
The E1017-376 supports 350–500 kcmil cables, suitable for large-diameter power conductors. It provides a continuous rating up to 545 A at 600 Vac/dc, enabling direct connections for high‑current loads like motors and feeders without resorting to parallel assemblies. The brass contacts and double-set-screw termination ensure secure, vibration-resistant connections in demanding environments.
Yes. The plug features a NEMA 3R rating and is intended for Ordinary/Non-Hazardous Locations, making it appropriate for outdoor installations and rugged industrial environments where weather-resistant performance is required.
Work with the Cam-Lok J Series mating pair, align components, and tighten the double-set screws to the recommended torque. The yellow color aids identification, and brass contacts provide reliable conductivity. Follow Eaton's installation sheets to ensure proper seating, strain relief, and protection against contaminants.
The E1017-376 adheres to NEC/CEC standards and carries a NEMA 3R rating. Its area classification is Ordinary/Non-Hazardous Locations, supporting compliant installations in non-hazardous industrial settings.
The robust rubber body and brass contacts, combined with double-set-screw termination, reduce mating failures and maintenance downtime. This translates to faster installation, fewer spare parts, and improved uptime for critical processes such as manufacturing lines and outdoor power distribution.
