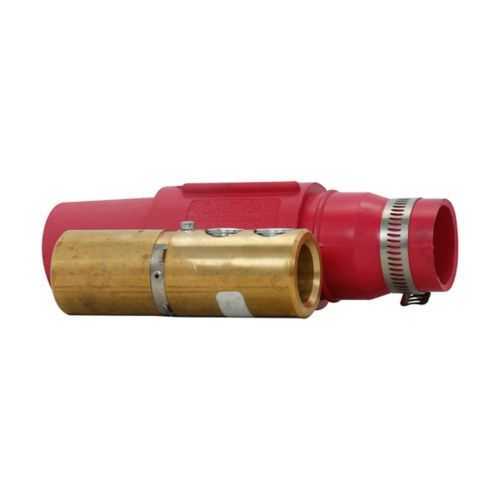

Eaton Crouse-Hinds E1017-382 Cam-Lok J Series Plug - 600 Vac/dc
Part Number: E1017-382
Quick Summary
Eaton Crouse-Hinds Cam-Lok J Series E1017 plug provides high-current power connections for use in industrial equipment. Procurement teams often wrestle with finding durable, code-compliant connectors that won’t fail under vibration or large-kcmil cables. This plug carries NEC/CEC compliance and a NEMA 3R rating for ordinary/non-hazardous locations, making it a practical choice for harsh industrial settings. In practice, the combo of 350–500 kcmil compatibility and up to 545A continuous rating reduces on-site assembly time and improves uptime for OEMs and service teams.
Product Information
Extended Description
E1017-382 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 350-500 kcmil, Brown, Double set screw, Brass contacts, Female, Rubber, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-382
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275862648
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
350-500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Brown
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-382
Feature: High amperage rating up to 545A continuous. Benefit: Enables reliable power delivery for heavy machinery, reducing system bottlenecks and downtime. Application: Large motors and feeders in manufacturing lines where uninterrupted current is critical and downtime is costly. Feature: Cable size compatibility 350-500 kcmil. Benefit: Supports large-diameter conductors without multiple terminations, lowering labor and material cost. Application: Sub-panels, switchgear, and distribution blocks in heavy electrical installations. Feature: 600 Vac/dc voltage rating. Benefit: Broad compatibility with AC and DC systems, simplifying engineering and stocking. Application: Industrial facilities with mixed-voltage equipment and motor drive systems. Feature: Double set screw connection. Benefit: Secure, vibration-resistant mating that maintains contact integrity in dynamic environments. Application: Equipment subjected to vibration, impact, or flexing cables. Feature: Rubber, non-vulcanized body with brass contacts. Benefit: Robust electrical performance with reliable contact material and resistance to environmental ingress. Application: Outdoor or harsh indoor environments where long-term contact stability matters. Feature: Female gender and brown color coding. Benefit: Clear mating compatibility and reduced mis-wiring risk. Application: Cam-Lok J Series assemblies in control panels and field terminations.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-382
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-382?
Enquire Now
FAQs
Begin by ensuring the enclosure is suitable for ordinary/non-hazardous locations and that the cable is within the 350-500 kcmil range. Remove the plug cap, route the cable into the rubber body, insert into the receptacle, and tighten both set screws securely to achieve a vibration-resistant, double-set-screw connection that maintains conductor integrity over time.
The E1017-382 is rated up to 545A continuous with 350-500 kcmil cables and supports 600 Vac/dc. It uses brass contacts in a female configuration with a rubber, non-vulcanized housing designed for durable, high-current mating in industrial installations.
Yes. The connector carries a NEMA 3R rating and is specified for Ordinary/Non-Hazardous Locations, making it suitable for outdoor use or damp indoor environments when paired with appropriate enclosure protection and standard safety practices.
The E1017-382 complies with NEC/CEC standards and the NEMA 3R enclosure rating, aligning with common industrial safety and performance requirements. This helps ensure regulatory compliance and consistent performance in non-hazardous industrial settings.
The combination of a robust brass contact system, double set screws, and a non-vulcanized rubber body minimizes wear and loosening under vibration, reducing rework and maintenance costs. Its compatibility with large-kcmil cables also lowers termination labor and inventory complexity, improving uptime and lifecycle value for heavy equipment operators.
