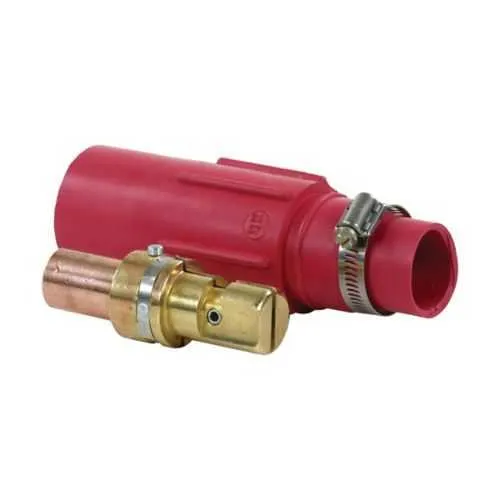

Eaton Crouse-Hinds E1017-4 Plug - NEMA 4
Part Number: E1017-4
Quick Summary
Eaton Cam-Lok E1017-4 plug provides reliable high-current power connections for heavy machinery and process equipment. A common challenge is maintaining secure, vibration-resistant connections in harsh industrial environments. This plug meets NEC/CEC standards and carries a NEMA 4 rating for outdoor or damp locations, while supporting up to 445A continuous at 600 VAC/DC. With crimp termination and a vulcanized rubber body, it delivers robust service life, and its bright orange color aids quick identification, enhancing safety in busy facilities. For designers and procurement teams, the E1017-4 blends reliability with install efficiency within Wiring & Connectivity applications.
Product Information
Extended Description
E1017-4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Orange, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-4
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275901637
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Orange
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-4
Feature: High current capability up to 445A continuous. Business Impact: Supports heavy equipment and rapid power transfer without paralleling multiple connectors, reducing footprint and wiring complexity. Application: Heavy-duty presses, conveyors, and large motors in mining and metalworking. Feature: Cable size compatibility up to 350 kcmil. Business Impact: Enables direct use of large feeders, lowering installation time and potential mismatch errors. Application: Feeders for large machines and distribution panels. Feature: Crimp connection. Business Impact: Fast, consistent terminations with repeatable performance, minimizing field labor and rework. Application: Field-mounted panels and modular systems. Feature: Vulcanized rubber housing and orange color. Business Impact: Superior environmental sealing, wear resistance, and high visibility for safety. Application: Outdoor installations and damp environments. Feature: NEMA 4 rating and brass contacts. Business Impact: Enhanced ingress protection and conductive reliability, reducing maintenance cycles. Application: Weatherproof power distribution in ordinary locations. Feature: 7 in length, 2.69 in width/height, 4.16 lb weight. Business Impact: Manageable footprint with straightforward mounting and handling in restricted spaces. Application: On-the-floor installations and equipment retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-4?
Enquire Now
FAQs
Installation requires the official crimp contacts compatible with 350 kcmil conductors and the Cam-Lok J Series housing. Prepare the cable by stripping to the correct length, fit the brass contacts, and use the recommended crimp tooling to ensure a gas-tight, vibration-resistant connection. Verify insulation integrity and perform a continuity check after assembly to prevent stray resistance.
The E1017-4 is rated for up to 445A continuous current and supports 600 VAC or DC, with a crimp connection to 350 kcmil cables. It uses brass contacts and a vulcanized rubber housing for durability in harsh environments. The assembly complies with NEC/CEC standards and is suitable for ordinary/non-hazardous locations.
Yes. The E1017-4 carries a NEMA 4 rating, providing protection against rain, dust, and splashing water. Its vulcanized rubber body and robust contact design make it well-suited for outdoor installations and non-hazardous locations, helping to maintain performance and reduce maintenance in exposed settings.
The connector supports 350 kcmil conductors via crimp termination with brass contacts. This combination delivers a reliable, low-impedance path suitable for heavy loads. For best results, follow Eaton’s installation instructions and use compatible crimp tools and accessory kits specified in the Cam-Lok documentation.
The E1017-4 adheres to NEC/CEC standards and carries an Ordinarily/Non-Hazardous area classification. Its NEMA 4 rating ensures weatherproof performance, making it a compliant choice for industrial power distribution in non-hazardous outdoor applications.
