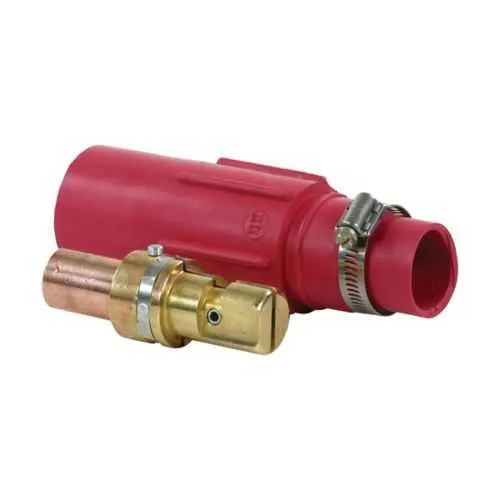

Eaton Crouse-Hinds E1017-5 Cam-Lok J Series Plug - 600 Vac/dc
Part Number: E1017-5
Quick Summary
The Eaton Crouse-Hinds E1017-5 Cam-Lok J Series Plug provides high-current, secure power connections for industrial equipment. Engineers often struggle with reliable mating under vibration, harsh environments, and frequent connect/disconnect cycles. This connector aligns with NEC/CEC standards, carries a NEMA 4 rating for rugged outdoor or harsh indoor use, and is suitable for ordinary/non-hazardous locations. By combining a 350 kcmil cable compatibility with up to 445A continuous amperage and a 600 Vac/dc rating, it delivers dependable performance while streamlining installation and reducing downtime. This translates to lower lifecycle costs and faster serviceability in control panels, motor drives, and portable power applications.
Product Information
Extended Description
E1017-5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Green, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-5
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133120
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Green
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-5
Feature: High amperage rating up to 445A continuous. Business Impact: Supports demanding motor and welding feeds without frequent reconfigurations. Application: Heavy machinery, CNCs, and power distribution panels. Feature: Cable compatibility with 350 kcmil conductors. Business Impact: Enables large-gauge feeders for compact, fewer-connector assemblies. Application: Main power feeds and panel interconnects. Feature: Vulcanized rubber housing with brass contacts. Business Impact: Superior abrasion, oil, and vibration resistance for challenging environments. Application: Outdoor installations, relocatable power carts, and plant floors. Feature: Crimp connection with gender Male. Business Impact: Faster, vibration-resistant terminations and reduced field failure risk. Application: On-site field terminations and service loops. Feature: 7 in length, 2.69 in by 2.69 in footprint, 4.16 lb weight. Business Impact: Manageable size and weight for installation in tight spaces and tight tolerances. Application: Compact power centers and panel assemblies. Feature: 600 Vac/dc rating and NEMA 4 protection. Business Impact: Safe operation in both AC and DC systems with reliable enclosure protection. Application: Harsh environments, ordinary locations, and non-hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-5?
Enquire Now
FAQs
E1017-5 is designed for Cam-Lok J Series mating receptacles and uses brass contacts in a vulcanized rubber housing with crimp termination. For best results, use the compatible Cam-Lok crimp tooling specified by the connector catalog and ensure the 350 kcmil conductor is terminated with the correct crimp ferrule size. Verify mating alignment before full engagement to minimize wear and ensure a secure, vibration-resistant connection.
The E1017-5 delivers up to 445A continuous current and a 600 Vac/dc rating, suitable for AC and DC power in industrial environments. Its vulcanized rubber housing combined with brass contacts provides robust resistance to vibration and mechanical shock, while the crimp termination offers a secure, high-integrity connection to 350 kcmil conductors, reducing intermittent contact issues in demanding applications.
Industries such as machine tooling, motor control centers, welding operations, and portable power applications benefit from the E1017-5. Its NEMA 4 rating and suitability for Ordinary/Non-Hazardous Locations make it ideal for indoor plant environments and outdoor setups where reliable high-current connections are critical, minimizing downtime in power feeds and control circuits.
E1017-5 is compatible with NEC/CEC standards and carries a NEMA 4 rating, suitable for ordinary/non-hazardous locations. This combination ensures safe operation in both wet and dry industrial environments, providing a consistent baseline for compliance in electrical design and field installations.
The vulcanized rubber housing and brass contacts are designed for durability under vibration and exposure to industrial conditions, reducing maintenance cycles. The crimp connection simplifies field service, lowers the risk of loose or corroded connections, and extends service life, contributing to lower total cost of ownership and improved uptime in critical power paths.
