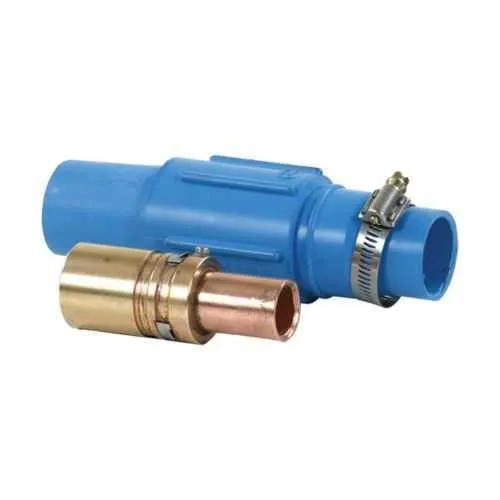

Eaton E1017-50 Cam-Lok J Series Plug - NEMA 4
Part Number: E1017-50
Quick Summary
The Eaton E1017-50 Cam-Lok J Series plug enables quick, reliable 445A connections for industrial power distribution. Users often face downtime from incompatible connectors or difficult field terminations, which this plug mitigates with robust crimp contacts and vulcanized rubber housing. It meets NEC/CEC standards and carries a NEMA 4 rating for protection in ordinary and non-hazardous locations. With a 350 kcmil cable capacity and a 600 Vac/dc rating, this connector supports scalable power for demanding applications, while helping reduce maintenance costs. As a trusted Cam-Lok solution, it complements wiring and connectivity strategies and supports fast, safe equipment changes.
Product Information
Extended Description
E1017-50 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Black, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-50
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133137
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Black
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-50
Feature: Up to 445A continuous amperage rating. Business Impact: Enables high-current power transfer without multiple interconnects, reducing overall footprint and installation time. Application: Heavy machinery, plant power distribution, and industrial robotics where single-connector reliability matters. Feature: 350 kcmil cable compatibility with brass contacts and crimp connection. Business Impact: Improves conductive efficiency and reduces contact resistance, lowering heat buildup and maintenance needs. Application: Large-diameter power cables in mining, steel, and chemical plants. Feature: Vulcanized rubber housing and female gender with black color. Business Impact: Provides environmental resilience, wear resistance, and safer visibility in cluttered electrical rooms. Application: Outdoor or damp locations, complex enclosures, and weather-exposed installations. Feature: 600 Vac/dc rating and NEC/CEC compliance. Business Impact: Ensures safe operation across AC and DC systems while meeting regulatory requirements. Application: Control panels, feeders, and process lines in accordance with NEC/CEC. Feature: NEMA 4 enclosure compatibility and Ordinary/Non-Hazardous location rating. Business Impact: Protects against dust, water ingress, and incidental splashes, reducing downtime. Application: Indoor/outdoor industrial facilities with moderate environmental exposure. Feature: Crimp connection with brass contacts. Business Impact: Fast field installation with durable electrical performance and reduced termination errors. Application: On-site plug assemblies and field service tasks. Feature: Detailed specifications and installation resources. Business Impact: Streamlines procurement, reduces misconfiguration, and supports compliant installations. Application: Projects requiring BOM accuracy and readily accessible installation sheets.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-50?
Enquire Now
FAQs
Yes. The E1017-50 is designed for up to 350 kcmil cables and uses a crimp connection with brass contacts. It is part of the Cam-Lok J Series and aligns with industrial installation practices, with available EB 94 installation sheets to guide field termination and ensure compliant, repeatable connections.
The plug supports up to 445A continuous current and a voltage rating of 600 Vac/dc. This combination enables reliable power transfer for demanding loads while maintaining safe operation in ordinary/non-hazardous environments, per NEC/CEC standards and the NEMA 4 enclosure requirements.
Ideal for heavy manufacturing, process plants, and outdoor equipment where large-diameter cables and high-current connections are needed. Its NEMA 4 rating and ordinary location classification make it suitable for indoor facilities with occasional exposure to dust or splashes and for general wiring and connectivity needs in industrial settings.
The E1017-50 complies with NEC/CEC standards and carries a NEMA 4 rating. It is suitable for Ordinary/Non-Hazardous locations, providing regulatory alignment for safe operation in typical industrial facilities.
Field-installable with a reliable crimp method and durable vulcanized rubber housing, it minimizes termination errors and maintenance frequency. Availability of specification sheets and catalog pages accelerates procurement, while its high current rating and robust construction translate to lower replacement costs and fewer unplanned outages.
