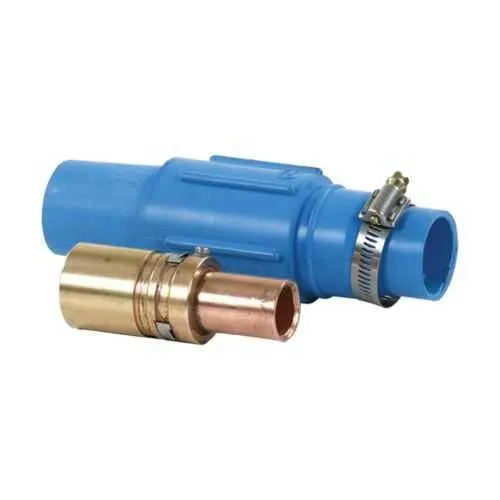

Eaton Crouse-Hinds E1017-55 Cam-Lok J Series Plug - 600V
Part Number: E1017-55
Quick Summary
The Eaton Crouse-Hinds E1017-55 Cam-Lok J Series plug delivers high-current power connections for industrial equipment. This design addresses the need for safe, reliable, and straightforward field installations in demanding manufacturing environments. It carries NEC/CEC compliance, a NEMA 4 rating, and ordinary/non-hazardous location suitability to support robust plant operations. By leveraging a vulcanized rubber body, brass contacts, and a crimp termination, the E1017-55 delivers dependable performance while reducing maintenance and lifecycle costs. This solution aligns with the Cam-Lok ecosystem, enabling scalable, repeatable connectivity for heavy-duty conveyors, pumps, and motor drives across facilities.
Product Information
Extended Description
E1017-55 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, White, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-55
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133175
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-55
Feature: Up to 445A continuous amperage rating with 350 kcmil cable compatibility. Business Impact: Provides headroom for high-load equipment without over-sizing connectors, reducing junction losses and the need for multiple connectors. Application: Ideal for heavy motors and feeders in packaging lines and processing plants. Feature: 600 Vac/dc voltage rating. Business Impact: Supports both AC and DC systems, offering design flexibility and safer, standardized power distribution. Application: Suitable for mixed electrical infrastructures in industrial automation. Feature: Vulcanized rubber housing with NEMA 4 protection. Business Impact: Delivers weather and environmental resistance, extending service life in ordinary non-hazardous locations. Application: Outdoor or damp plant areas and wash-down zones. Feature: Brass contact material with crimp termination. Business Impact: Ensures low contact resistance and secure, repeatable terminations, reducing downtime during maintenance. Application: Field installations requiring rapid, reliable crimp connections. Feature: Cam-Lok J-Series compatibility with female connectors. Business Impact: Enables standardized mating with existing receptacles and scalable panel layouts, improving project timelines. Application: Integration into existing Cam-Lok portfolios in control panels and feeder networks. Feature: Dimensions and weight (7.38 in length, 2.69 in height/width, 4.16 lb). Business Impact: Facilitates hands-on handling and installation planning in confined spaces. Application: Assembly in control enclosures and equipment housings. Feature: NEC/CEC compliance and area classification Ordinary/Non-Hazardous Locations with NEMA 4 rating. Business Impact: Ensures regulatory alignment, safer installations, and reduced risk of non-compliance penalties. Application: Suitable for standard industrial facilities and non-hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-55
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-55?
Enquire Now
FAQs
The E1017-55 uses a crimp termination with brass contacts for reliable, low-resistance connections. Use proper crimp tooling sized for 350 kcmil conductors and follow Eaton installation sheets (EB 94) to ensure proper seating, strain relief, and insulation. This approach minimizes field failure risks and simplifies future maintenance while preserving NEMA 4 integrity in ordinary locations.
Yes, the E1017-55 is rated for 600 Vac/dc and accepts up to 350 kcmil cables. This combination supports high-current, mixed-voltage applications typical in heavy industrial drives and feeders. When wiring, ensure correct crimp tooling for 350 kcmil and verify compatible receptacles within the Cam-Lok J-Series family to maintain secure, compliant connections.
The connector complies with NEC/CEC standards and carries a NEMA 4 rating for weather resistance. It is rated for Ordinary/Non-Hazardous Locations, making it suitable for standard industrial facilities and indoor/outdoor installations not classified as hazardous, provided standard safety practices are followed and local codes are observed.
The E1017-55 offers up to 445A continuous amperage with brass contacts. The brass contact material provides good conductivity and durability, while the crimp termination ensures a secure, vibration-resistant connection. This combination supports dependable power transfer for heavy-duty equipment and minimizes maintenance-related outages.
E1017-55 is designed to mate with existing Cam-Lok J-Series single-pole receptacles, enabling scalable, modular power distribution. For maintenance, inspect crimp integrity and rubber housing for wear, clean mating surfaces, and replace worn components promptly. Refer to the EB 94 instruction sheet for replacement guidance and to preserve NEMA 4 protection during service life.
