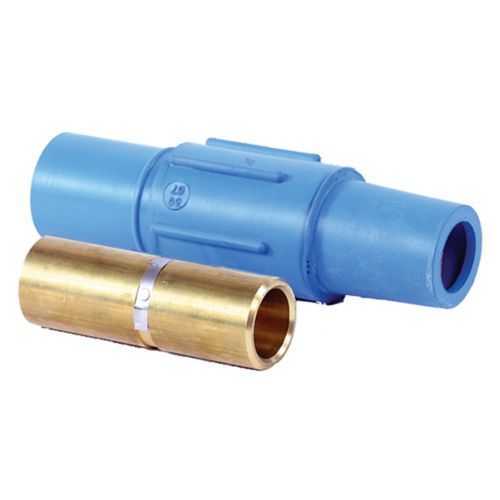

Eaton Crouse-Hinds E1017-67 plug - NEMA 4, 690A
Part Number: E1017-67
Quick Summary
The Eaton Crouse-Hinds E1017-67 plug provides fast, secure Cam-Lok power connections for industrial electrical distribution. Engineers often struggle with reliable high-current terminations in harsh environments and limited space. This E1017-67 delivers up to 690A continuous, 750 kcmil cable, 600 Vac/dc, and NEMA 4 suitability. Rated for ordinary/non-hazardous locations, it combines rubber vulcanized body, brass contacts, and crimp connection for robust, repeatable assemblies. Secondary benefits include NEC/CEC compliance support, faster installation, and reduced maintenance costs. With certified documentation and catalog resources, field teams can verify compatibility, reduce misapplication, and streamline replacements. Applications span heavy machinery, power distribution panels, and process lines where reliable Cam-Lok j-series connectors minimize downtime.
Product Information
Extended Description
E1017-67 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 750 kcmil, White, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-67
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133281
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
750 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-67
High-current capability and large-cable support → Enables simplified, single-connector power terminations for heavy equipment, reducing assembly time and potential fault points in the field. This translates to measurable improvements in uptime and a lower total cost of ownership, especially on large motors and feeders using 750 kcmil cables with up to 690A continuous rating. Application: industrial plants with demanding power loads benefit from fewer crimp connections and faster panel integration, while maintaining voltage integrity across 600 Vac/dc systems. Rubber vulcanized housing with brass contacts → Delivers durable, vibration-resistant terminations that resist environmental wear, lowering maintenance intervals and replacement costs. Application: outdoor or factory-floor installations where moisture, dust, and temperature swings are common. Crimp connection design → Provides repeatable, secure terminations that meet NEC/CEC expectations, minimizing field rework and ensuring reliable current transfer during peak loads. Application: assembly lines and packaging machinery where downtime is costly. NEMA 4 enclosure suitability and ordinary-location rating → Supports safe operation in non-hazardous environments with weather and ingress resistance, helping facilities stay compliant while avoiding unnecessary enclosure upgrades. Application: outdoor control cabinets and non-hazardous process areas. Comprehensive documentation and compatibility resources → Shortens procurement cycles, reduces misapplication risk, and accelerates maintenance planning. Application: maintenance teams rely on EB 94 instructions and diagnostic sheets to ensure correct installation and spare parts alignment.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-67
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-67?
Enquire Now
FAQs
Use 750 kcmil cable with the correct crimp tool and brass contact set specified for Cam-Lok J Series. Verify cable prep length, clean conductor surfaces, and inspect the vulcanized rubber body for damage before crimping. Follow the EB94 installation guidelines to confirm correct mating with receptacles and to ensure a repeatable, vibration-resistant connection that withstands 690A continuous operation.
The E1017-67 is rated up to 690A continuous and supports 750 kcmil cables with a voltage rating of 600 Vac/dc. This makes it suitable for high-current motor feeds and largeわ load lines common in processing and manufacturing environments, while aligning with NEC/CEC standards. For motor starting or high inrush scenarios, ensure conductors and terminations are sized accordingly and that enclosure and protection schemes accommodate the current rating.
Yes. It is rated for Ordinary/Non-Hazardous Locations and features a NEMA 4 enclosure rating, providing moisture and dust resistance in non-hazardous environments. The rubber vulcanized body and brass contacts further support reliability in outdoor or factory-floor installations, reducing the need for additional weatherproofing in suitable areas.
The E1017-67 adheres to NEC/CEC standards and is rated for NEMA 4, suitable for ordinary locations. This combination supports compliant, safe high-current installations across industrial facilities, enabling procurement and installation teams to align with regulatory requirements without custom solutions.
The product includes brochures, catalog pages, EB 94 installation instructions, and a dedicated Eaton specification sheet. These resources enable quick verification of compatibility with Cam-Lok J Series receptacles, accurate part identification, and streamlined maintenance planning, reducing downtime and driving a faster return on investment.
