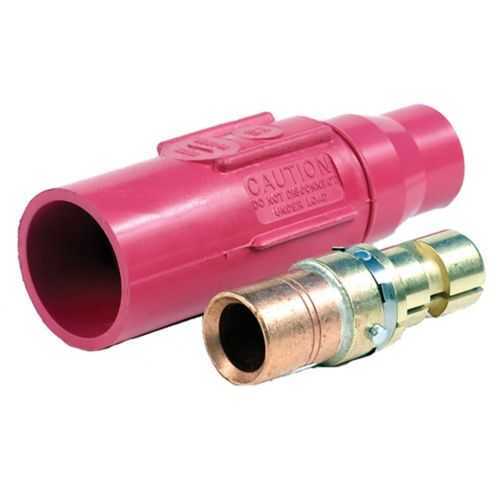

Eaton Crouse-Hinds E1017-7 Cam-Lok Plug - NEMA 4, 600V
Part Number: E1017-7
Quick Summary
Eaton Cam-Lok E1017-7 plug is a high-capacity power connector designed for rugged industrial equipment connections. Engineers often struggle with reliable, safe connections for large-diameter cables up to 500 kcmil and 545A continuous. This plug complies with NEC/CEC standards and features a NEMA 4 rating, making it suitable for both indoor and outdoor use in ordinary locations. The combination of rubber vulcanized construction and brass contacts delivers durable performance, while crimp termination supports fast, repeatable installations. For system integrators and maintenance teams, this translates to reduced downtime, consistent electrical performance, and lower lifecycle costs for high-current power distribution in demanding environments.
Product Information
Extended Description
E1017-7 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 500 kcmil, Black, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-7
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133298
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Black
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-7
Feature: High current capability up to 545A continuous. Business Impact: Enables reliable power delivery for large motors and feeders without frequent replacements. Application: Heavy manufacturing, mining, and large-scale processing plants. The robust rating supports compliance with industrial codes while minimizing transition points and heat buildup. Feature: 600 Vac/dc rating. Business Impact: Lets you support mixed AC/DC applications with a single connector family, reducing stocking and training needs. Application: Facility distribution, test benches, and equipment hookups in mixed-voltage environments. Feature: Vulcanized rubber body. Business Impact: Superior resistance to environmental conditions, reducing connector failures in harsh plants. Application: Outdoor equipment, washdown zones, and rain-prone locations. Feature: Crimp connection with brass contacts. Business Impact: Faster terminations, repeatable performance, and lower labor costs. Application: Field installations where hot-work alternatives are restricted. Feature: J Series compatibility and male plug form. Business Impact: Streamlined spares strategy and quick mating with corresponding receptacles. Application: Modular power distribution systems and temporary supply setups. Feature: NEMA 4 protection and ordinary/non-hazardous classification. Business Impact: Safe operation in rugged environments with ingress protection, lowering risk of water and dust intrusion. Application: Plant floor, outdoor enclosures, and service entrances. Insight: The E1017-7 is commonly selected for high-current, large-diameter cable applications requiring reliable, durable terminations and straightforward maintenance, aligning with industry best practices for power distribution in challenging settings.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-7?
Enquire Now
FAQs
The E1017-7 is designed to mate with Cam-Lok J Series receptacles that accept 500 kcmil cables and offer crimp termination. It is ideal for large motor feeders, distribution panels, and outdoor equipment connections in ordinary locations. Always verify receptacle pairing and ensure the mating components share the same cable size, contact material, and rating for safe, code-compliant operation.
Crimp termination for the E1017-7 uses the specified brass contact and appropriate crimp tool designed for 500 kcmil conductors. Begin by preparing the conductor, insulate correctly, and position the conductor into the contact cavity. Apply the crimp with the correct die set to ensure a secure, gas-tight connection. Verify continuity and pull strength after termination and inspect for signs of deformation or insufficient crimping.
Yes. The E1017-7 carries a NEMA 4 rating and is built with vulcanized rubber insulation, offering protection against water and dust ingress in ordinary/non-hazardous locations. This makes it suitable for outdoor installations, indoor enclosures exposed to moisture, and environments where robust ingress protection is required, helping reduce maintenance intervals.
The E1017-7 adheres to NEC/CEC standards and is rated for ordinary/non-hazardous locations. Its NEMA 4 protection level supports safe operation in various industrial environments, including those with exposure to moisture or dirt. This combination helps ensure compliance during audits and supports reliable performance in routine industrial applications.
Choosing the E1017-7 can lower total cost of ownership through faster installation via crimp terminations, reduced downtime due to reliable connections, and durable rubber vulcanized construction that resists wear in harsh environments. Its high current rating (up to 545A) and 600V capability also reduce the need for multiple connectors in large-scale systems, improving spare parts efficiency and maintenance planning.
