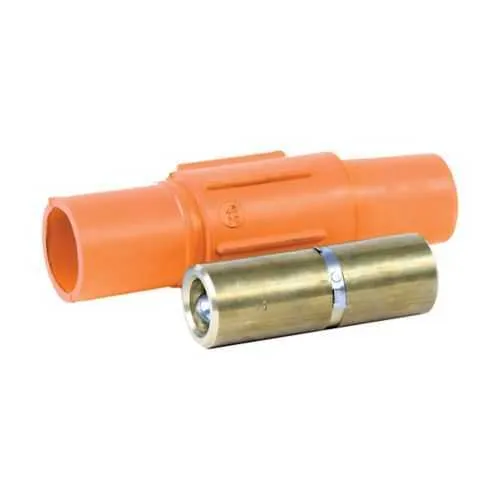

Eaton Crouse-Hinds E1017-73 Cam-Lok J Series Plug - NEMA 4
Part Number: E1017-73
Quick Summary
Cam-Lok E1017-73 plug by Eaton Crouse-Hinds provides rugged, high-capacity power connections for heavy industrial equipment in demanding environments. This design addresses downtime and mis-wiring risk by delivering a reliable, quick-mating connection that stays secure under vibration. It supports up to 690A continuous and accepts up to 800 kcmil cables, rated for 600 Vac/dc, with brass contacts and vulcanized rubber construction for long service life. Certified for NEC/CEC compliance and suitable for Ordinary/Non-Hazardous locations per NEMA 4 protection, it supports compliant installations in a wide range of facilities. For procurement teams, the combination of robust performance and standardized fittings reduces spare-part variety while improving maintenance planning and system uptime. It is a strong fit for power distribution, motor control, and plant-floor connectivity solutions.
Product Information
Extended Description
E1017-73 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 800 kcmil, White, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-73
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275925893
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
800 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-73
The E1017-73 delivers up to 690A continuous through a compact Cam-Lok J Series plug. This high-current capability reduces the number of terminations and minimizes contact resistance, yielding lower heat rise and improved overall efficiency in power distribution. Suitable for large motors, feeders, and heavy-duty equipment in plant environments. The design supports 800 kcmil cables, allowing direct heavy-gauge terminations with fewer splices and a cleaner, safer installation. A crimp connection with brass contacts provides low electrical resistance and reliable mating, which translates to reduced maintenance and longer interval between replacements in demanding facilities. Rubber, vulcanized housing adds environmental resilience, delivering superior vibration resistance and moisture protection in factory floors and outdoor equipment enclosures. NEMA 4 enclosure protection and NEC/CEC compliance ensure safe operation in Ordinary/Non-Hazardous locations, simplifying regulatory alignment and reducing risk during audits. Compatibility with other Cam-Lok components and access to Eaton literature, including EB 94 instructions, supports rapid procurement, standardization, and scalable power distribution. These attributes collectively reduce downtime, improve installation speed, and lower total cost of ownership in motor control and plant power networks.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-73
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-73?
Enquire Now
FAQs
Install the E1017-73 using the Crimp connection method specified for Cam-Lok J Series. Use an 800 kcmil-compatible crimp tool and brass contact crimp ferrules rated for the cable size. Ensure mating receptacles are the corresponding J Series, and follow the EB 94 instruction sheet for correct assembly, strain relief, and test procedures before energizing.
Key performance factors include a brass contact material for low resistance, vulcanized rubber housing for environmental protection, and a 600 Vac/dc rating that supports high-power AC or DC systems. The plug is designed to handle up to 800 kcmil cables and a crimp connection, providing reliable, vibration-resistant mating essential for motor feeders and plant distributions.
With NEMA 4 protection and an Ordinary/Non-Hazardous area classification, the E1017-73 is well-suited for industrial facilities, manufacturing floors, warehouses, and outdoor equipment enclosures where moisture and dust are present but hazardous locations are not a concern. It integrates with the Cam-Lok J Series ecosystem for standardized, quick-connect power distribution.
The E1017-73 meets NEC/CEC standards and carries a NEMA 4 rating for weather resistance. It is intended for Ordinary/Non-Hazardous Locations and uses a standard Crimp connection with Brass contacts and vulcanized rubber components. These features support compliant installations in commercial or industrial environments.
Durability comes from vulcanized rubber, brass contacts, and robust construction, reducing wear from vibration and frequent connect-disconnect cycles. Prolonged service and fewer spare parts lower maintenance costs, while standardized Cam-Lok components simplify stocking and training. For ROI, expect reduced downtime, faster motor changes, and improved safety through consistent, color-coded white components and reliable crimp connections.
