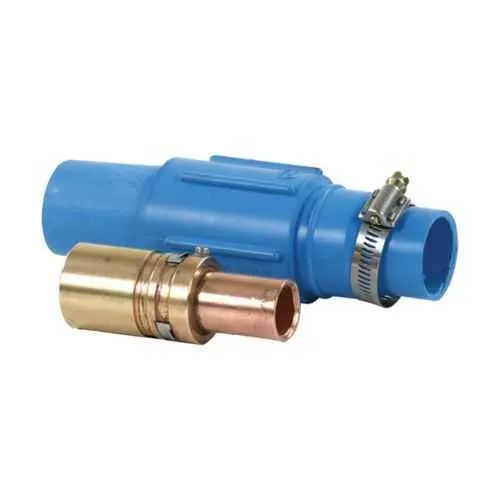

Eaton E1017-74 Cam-Lok Plug - 600 Vac
Part Number: E1017-74
Quick Summary
Eaton E1017-74 Cam-Lok plug enables high‑current power connections for industrial equipment. It delivers reliable performance in demanding electrical assemblies, reducing downtime and maintenance needs. This Cam-Lok J Series component carries NEC/CEC compliance, a NEMA 4 enclosure rating, and ordinary/non-hazardous location suitability, ensuring durable operation in rugged environments. Built for fast crimp installations with brass contacts and a blue rubber vulcanized housing, it integrates seamlessly with Cam-Lok systems while delivering long-term value and cost savings. For OEMs and maintenance teams, the plug offers consistent mating performance and ease of replacement, supporting uptime, safety, and total cost of ownership goals.
Product Information
Extended Description
E1017-74 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 445A continuous, 350 kcmil, Blue, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-74
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275133304
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
350 kcmil
Amperage Rating
Up to 445A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-74
The E1017-74 supports a 350 kcmil conductor and is rated up to 445A continuous, enabling large loads with fewer connectors, which translates to reduced assembly time and lower installation costs. The brass contacts provide low electrical resistance and durable mating cycles, while the vulcanized rubber housing delivers resistance to environmental conditions, minimizing maintenance and replacement needs in harsh plants. As a Crimp configuration, it ensures a secure, vibration-resistant connection that stays intact under equipment vibration and thermal cycling typical in manufacturing floors. Compatibility with Cam-Lok J Series systems means faster field upgrades and standardized spare parts, reducing downtime during maintenance windows. The NEMA 4 enclosure rating and ordinary/non-hazardous location suitability support safe operation in a wide range of facilities, from OEM assembly lines to process plants. These features collectively enhance reliability, compliance, and total cost of ownership while enabling scalable power distribution architecture.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-74
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-74?
Enquire Now
FAQs
Installation begins with preparing the 350 kcmil conductor and selecting the correct brass crimp contact for the cable. Crimp the contact securely, then insert it into the E1017-74 plug housing until fully seated. Verify mating with the Cam-Lok J Series receptacle, ensure the housing is clean and seated, and confirm 600 Vac/dc rating is maintained under load conditions.
Yes. The E1017-74 is a Cam-Lok J Series plug configured as female and designed for crimp connections with 350 kcmil conductors. It mates with the corresponding J Series receptacles for quick, secure power distribution in industrial settings, delivering up to 445A continuous at 600 Vac/dc.
The E1017-74 supports NEC/CEC standards, is rated NEMA 4 for rugged environments, and is suitable for Ordinary/Non-Hazardous Location applications. These certifications ensure code compliance and safe installation across typical manufacturing floors, water treatment plants, and material handling operations.
This plug is ideal for heavy-load power distribution tasks such as manufacturing lines, bulk material handling, and process equipment where 350 kcmil conductors, up to 445A continuous, and a 600 Vac/dc rating are required. Its blue vulcanized rubber housing and brass contacts withstand factory conditions while maintaining reliable performance.
The E1017-74 provides durable mating cycles with brass contacts and a vulcanized rubber housing, reducing loosening risks and maintenance calls. Its robust 600 Vac/dc rating and NEMA 4 protection minimize downtime in adverse environments, contributing to lower maintenance costs and extended service life for Cam-Lok power distribution systems.
