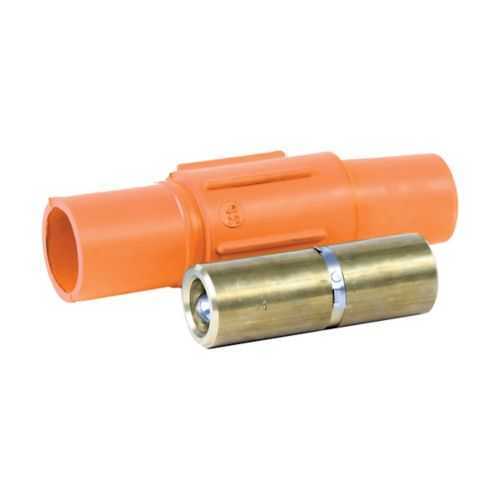

Eaton Crouse-Hinds E1017-77 Cam-Lok J Plug - NEMA 4
Part Number: E1017-77
Quick Summary
Eaton Crouse-Hinds Cam-Lok J plug delivers high-current, reliable power connections for industrial distribution in manufacturing, mining, and large equipment installations. Engineers often face downtime when connectors are not compatible with large feeders or rugged environments, leading to delays and spare-part challenges. This E1017-77 carries NEC/CEC compliance, a NEMA 4 enclosure rating, and suitability for ordinary, non-hazardous locations, ensuring predictable performance in typical plant settings. The blue, vulcanized rubber body and brass crimp contacts help minimize field failures and maintenance costs. With up to 690A continuous and 600 Vac/dc rating, it supports high-power applications while enabling fast, dependable field termination.
Product Information
Extended Description
E1017-77 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 690A continuous, 800 kcmil, Blue, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-77
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275925855
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
800 kcmil
Amperage Rating
Up to 690A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Blue
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-77
Feature: High-current capability and oversized cable support. The E1017-77 is rated up to 690A continuous and accepts 800 kcmil conductors with a 600V AC/DC rating, enabling direct field terminations. Business impact: This reduces splices and connector complexity, shortening installation time and lowering total cost of ownership. Application: Ideal for motor feeders, main distribution panels, and rugged power drops in manufacturing and heavy industries. Feature: Robust crimp contact system using brass contacts for a secure, vibration-resistant connection. Business impact: Minimizes maintenance and re-termination costs by resisting wear from vibration and frequent mating cycles. Application: Suitable for Cam-Lok J Series assemblies in equipment exposed to outdoor or high-vibration environments. Feature: Durable blue rubber vulcanized housing providing moisture resistance and abrasion tolerance. Business impact: Extends service life and reduces replacement costs, with easier identification in panels. Application: Washdown and ordinary/non-hazardous locations per NEC/CEC guidelines. Feature: Compliance framework with NEC/CEC and a NEMA 4 enclosure rating. Business impact: Simplifies regulatory compliance and procurement across sites. Application: Use with Cam-Lok J Series receptacles for scalable power distribution in control cabinets and field installs. Feature: Installation and compatibility advantages with field-termination crimp tooling. Business impact: Reduces on-site complexity and inventory while accelerating commissioning. Application: Standardize on E1017-77 across fleets for faster upgrades. Feature: Physical metrics and identifiers. Business impact: Enables accurate planning and fit verification during installation. Application: 7.38 in length, 2.69 in height, 2.69 in width, 4.16 lb weight; blue color; 800 kcmil cables; UPC 662275925855.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-77
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-77?
Enquire Now
FAQs
The E1017-77 Cam-Lok J plug is designed for high-current power connections in non-hazardous industrial environments. It supports up to 690A continuous and accepts up to 800 kcmil cables, with a 600 V AC/DC rating. Use cases include motor feeders, large drive systems, and rugged power panels where quick, reliable terminations improve uptime in manufacturing, mining, and processing facilities.
For crimp termination, employ the correct 800 kcmil crimp tooling and follow Cam-Lok assembly guidelines. The E1017-77 uses brass contacts in a crimp configuration for vibration resistance. Ensure proper cable stripping length, connector alignment, and post-crimp inspection to verify contact compression and continuity; consult the EB 94 instruction sheet for detailed steps.
Yes. The E1017-77 is a Cam-Lok J Series plug designed to mate with standard Cam-Lok J Series receptacles and other J-Series plugs that share the same connector family. When pairing, verify cable size, contact type, and color coding; proper mating halves ensure secure, watertight, and vibration-resistant connections in industrial panels.
The E1017-77 carries NEC/CEC standards with a NEMA 4 rating, supporting Ordinary/Non-Hazardous Locations. It is designed for 600 Vac/dc and supports up to 690A continuous with 800 kcmil cables. This combination ensures regulatory compliance, safety, and reliability for industrial power distribution in non-hazardous environments.
The E1017-77 plug measures 7.38 inches in length, 2.69 inches in height, and 2.69 inches in width, with a weight of 4.16 pounds. It features a blue vulcanized rubber body, brass contacts, and a crimp connection. Cable size supported is up to 800 kcmil, with UPC 662275925855 identifying this part.
