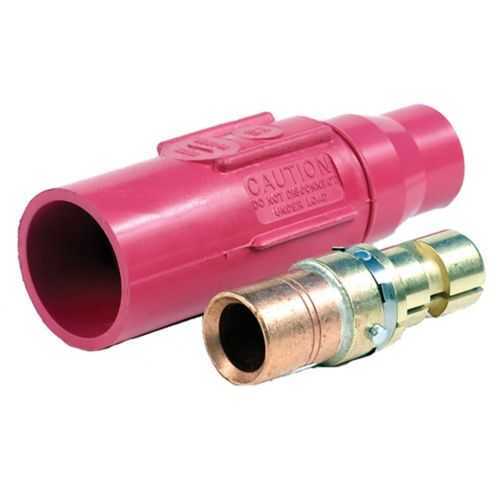

Eaton E1017-8 Cam-Lok J Series Plug - 600 Vac/DC
Part Number: E1017-8
Quick Summary
Eaton Cam-Lok J Series E1017-8 plug provides fast, secure power connections for heavy machinery and panel assemblies. When connectors fail or slow down production due to bulky, unreliable gear, downtime and safety risk rise. NEC/CEC compliance, NEMA 4 protection, and Ordinary/Non-Hazardous area classification ensure operation across a broad range of facilities. With a crimp connection, vulcanized rubber housing, and brass contacts, this plug delivers durable, low-maintenance power distribution that supports uptime and maintenance programs.
Product Information
Extended Description
E1017-8 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 500 kcmil, Yellow, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-8
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275876959
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
500 kcmil
Amperage Rating
Up to 545A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
Yellow
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-8
High current rating up to 545A continuous enables feeding large motors and feeders with a single plug, reducing wiring complexity and potential failure points in motor control centers and outdoor equipment enclosures. This translates to lowered maintenance costs and faster service in plant distribution networks. The ability to accept up to 500 kcmil conductors means you can run larger wires with fewer terminations, improving efficiency and reducing voltage drop on long runs in heavy-duty feeders and service entrances. A 600 Vac/dc rating covers both AC and DC applications, supporting versatile motor drives and power supplies while delivering consistent performance across multiple assets. The crimp connection streamlines field installation, cutting installation time and minimizing insulation damage, while brass contacts provide reliable conductivity for high-current paths. Rubber vulcanized housing adds oil, water, and abrasion resistance for ordinary locations, complemented by NEMA 4 protection to withstand washdown environments. The distinctive yellow housing improves visibility in crowded enclosures, aiding safe handling and fast identification. Overall, Cam-Lok J Series E1017-8 compatibility with Eaton literature and catalog pages ensures easy sourcing, parts availability, and standardized maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-8?
Enquire Now
FAQs
Installation uses a crimp connection to secure 500 kcmil conductors into brass contacts inside the vulcanized rubber housing. Ensure proper crimp tooling, inspect the seal after crimp, and verify continuity with a test ohm check. Follow OEM instructions in EB 94 and the Cam-Lok installation sheets for best results.
The E1017-8 is rated up to 545A continuous and supports 500 kcmil conductors with a voltage rating of 600 Vac/DC. It is designed for rubberized, vulcanized housings and crimp connections to deliver reliable, high-current performance.
Yes. The plug adheres to NEC/CEC standards and carries a NEMA 4 rating, making it appropriate for ordinary/non-hazardous locations and environments that require enclosure protection against moisture and dust.
Absolutely. The E1017-8 is a Cam-Lok J Series plug designed to mate with corresponding Cam-Lok J Series receptacles, enabling quick, secure connections in motor feeds, panel power distribution, and equipment hookups.
Eaton provides several resources: Cam-Lok catalogs, J Series catalog page, EB 94 installation sheets for E1017, E1019, E1023 connectors, and the E1017-8 specification sheet. These documents cover installation, compatibility, and performance data for reliable sourcing and field support.
