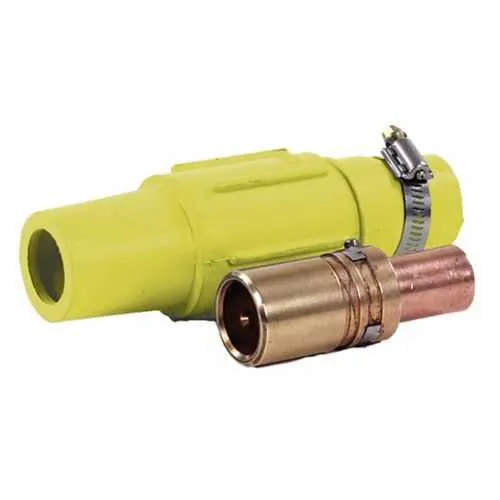

Eaton Crouse-Hinds E1017-89 Cam-Lok J Series Plug - NEMA 4
Part Number: E1017-89
Quick Summary
Eaton Crouse-Hinds E1017-89 Cam-Lok J Series plug provides high-current power connections for heavy-duty industrial equipment. In the field, engineers struggle with unreliable mating under vibration, moisture ingress, and cumbersome wiring practices that drive downtime. The connector complies with NEC/CEC standards, carries a NEMA 4 rating for non-hazardous or wet environments, and supports 600 Vac/dc, delivering safe, durable operation. Designed for 250 kcmil cables with crimp brass contacts and a vulcanized rubber housing, it handles up to 340A continuous, enabling scalable, cost-effective power distribution while simplifying installation in control panels and process lines.
Product Information
Extended Description
E1017-89 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, Green, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-89
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275842350
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
Green
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-89
Feature: High-current capability up to 340A continuous with 250 kcmil cable. Business impact: Enables reliable power delivery for large motors and feeders, reducing overheating risk and downtime. Application: Factory floors and process lines requiring robust, long-life connections. Feature: Brass contacts in a vulcanized rubber housing with Crimp connection. Business impact: Improves electrical reliability and corrosion resistance while speeding field terminations. Application: Harsh industrial environments where vibration and moisture are present. Feature: 600 Vac/dc voltage rating. Business impact: Supports both AC and DC systems, ensuring cross-platform compatibility and safer switching. Application: Mixed voltage systems in automation cabinets and external equipment. Feature: NEMA 4 rating and NEC/CEC compliance. Business impact: Weather-resistant performance and regulatory alignment, lowering risk and inspection friction. Application: Outdoor installations, non-hazardous locations, and damp locations. Feature: Compact dimensions and weight (7.38 in length, 2.69 in width/height, 4.16 lb). Business impact: Easier panel integration and faster installation without compromising clearance. Application: Enclosures and junction assemblies where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-89
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-89?
Enquire Now
FAQs
Yes. The E1017-89 is designed for 250 kcmil conductors and uses a crimp connection with brass contacts. When terminating, ensure proper crimp tooling and follow Eaton’s installation instructions to achieve a secure, low-resistance joint that maintains the 600 Vac/dc rating and 340A continuous capability.
The E1017-89 carries a continuous amperage rating up to 340A and a voltage rating of 600 Vac/dc. This enables safe operation across AC and DC systems in industrial environments, reducing the need for multiple connector types and simplifying inventory.
Yes. The E1017-89 is built for non-hazardous locations with a NEMA 4 rating, offering weather-resistant performance suitable for outdoor or damp environments. It aligns with NEC/CEC standards, supporting reliable performance in non-hazardous industrial settings.
The connector adheres to NEC/CEC standards and features a NEMA 4 enclosure rating, ensuring weather resistance and regulatory alignment. This reduces risk during inspections and helps streamline approvals for facilities handling outdoor equipment, wet locations, or splash-prone areas.
The E1017-89 delivers a robust, field-terminable Crimp connection with brass contacts and vulcanized rubber housing, offering quick terminations and strong vibration resistance. Its high current capacity reduces cabling runs and downtime, while the standardized NEC/CEC compliance and NEMA 4 rating minimize risk and rework in ongoing maintenance, contributing to a faster time-to-value for automation projects.
