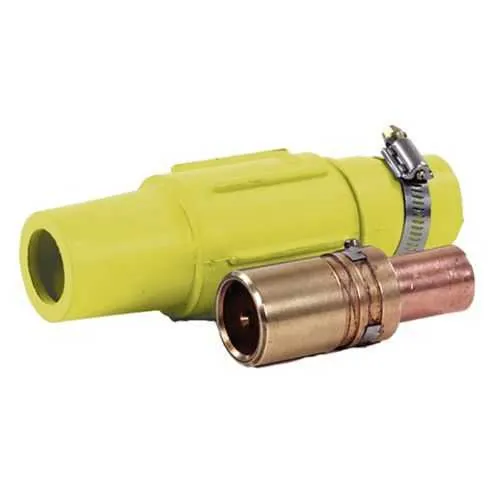

Eaton Crouse-Hinds E1017-91 Cam-Lok J Series Plug - NEMA 4
Part Number: E1017-91
Quick Summary
Eaton Crouse-Hinds E1017-91 Cam-Lok plug is a high-current power connector designed for industrial equipment wiring. In harsh environments, unreliable terminations and repeated downtime from loose connections drive maintenance costs. The unit complies with NEC/CEC standards, carries a NEMA 4 enclosure rating, and supports ordinary/non-hazardous locations, guaranteeing weather resistance and safety. With a 250 kcmil cable size and a continuous rating up to 340A at 600 Vac/dc, it delivers strong electrical performance for heavy loads. Designed for robust plant-floor power distribution, the Cam-Lok J series uses crimp brass contacts and vulcanized rubber housing to speed installation while improving durability and long-term total cost of ownership.
Product Information
Extended Description
E1017-91 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, White, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-91
Product Length/Depth
7.38 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275842336
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Female
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-91
Up to 340A continuous rating with 250 kcmil cable compatibility enables feeding large motors with fewer terminations, reducing junction heat and failure risk in crane and conveyor circuits. The 600 Vac/dc rating paired with a NEMA 4 enclosure rating ensures code-compliant, weatherproof operation in outdoor or damp spaces, minimizing enclosure alterations and header costs. Crimp connections with brass contacts deliver low-resistance, repeatable contacts and fast field assembly, cutting installation time and improving vibration resistance for moving equipment. The vulcanized rubber housing offers chemical and heat resistance, extending service life on oily shop floors and outdoor environments while maintaining a tight seal against dust and moisture. With a compact 7.38 in length and 2.69 in width/height and 4.16 lb weight, it supports straightforward space planning and mating with Cam-Lok J Series receptacles for quick upgrades and replacements. Compliance with NEC/CEC standards and ordinary/non-hazardous area classification reduces risk and simplifies procurement for dependable, standards-aligned hardware.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-91
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-91?
Enquire Now
FAQs
The E1017-91 uses a crimp connection with brass contacts designed for field assembly. Use the correct Cam-Lok crimp tooling and dies, and follow the EB 94 instruction sheets for mating E1017 with E1019 or E1023 connectors. Inspect the vulcanized rubber housing for tears or contaminants after installation, and ensure proper mating with compatible receptacles to avoid arcing.
E1017-91 supports up to 340A continuous current and accepts 250 kcmil conductors. It is rated for 600 Vac/dc and uses crimp brass contacts in a female configuration. When selecting mating components, ensure compatibility with Cam-Lok J Series single-pole plugs and receptacles and verify NEC/CEC compliance for the intended installation.
Yes. It carries a NEMA 4 enclosure rating and an Ordinary/Non-Hazardous area classification, making it suitable for outdoor and damp indoor installations. The rugged vulcanized rubber housing and brass contacts resist moisture, dust, and some chemical exposure, supporting reliable operation in industrial plants, yards, and loading docks.
The E1017-91 complies with NEC/CEC standards and carries a NEMA 4 rating. It is specified for Ordinary/Non-Hazardous locations, helping streamline procurement and compliance for facilities requiring weather-resistant, code-aligned power connections in industrial settings.
Maintenance is reduced due to durable brass contacts, vulcanized rubber housing, and straightforward crimp assembly, which lowers field labor time and downtime. Reliable vibration resistance and sealed construction extend service life, yielding lower replacement costs and improved uptime for high-usage feeders in conveyors, cranes, and heavy machinery.
