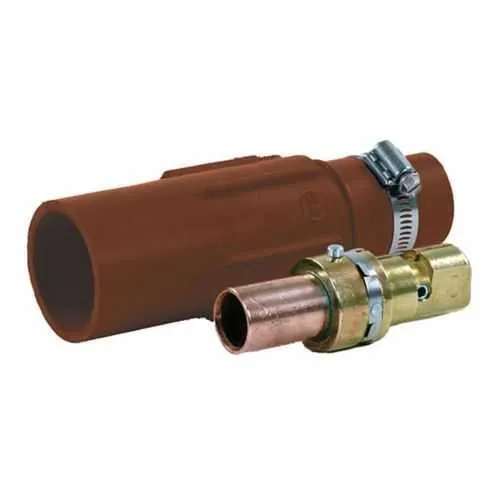

Eaton Crouse-Hinds E1017-95 Cam-Lok Plug - 600 Vac/dc
Part Number: E1017-95
Quick Summary
Eaton Crouse-Hinds Cam-Lok E1017-95 plug provides quick, secure high-current connections for power distribution in industrial equipment. Engineers often struggle with reliable mating under vibration, moisture ingress, and time-consuming field terminations. This NEC/CEC compliant plug features a NEMA 4 enclosure rating and is suitable for ordinary/non-hazardous locations, enhancing safety and uptime. With up to 340 A continuous rating and 250 kcmil capability, it supports large feeder circuits while offering straightforward crimp termination. For panel builders and maintenance teams, the rugged Cam-Lok solution reduces downtime, improves regulatory compliance, and speeds installations in automation and motor control applications.
Product Information
Extended Description
E1017-95 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 340A continuous, 250 kcmil, White, Crimp, Brass contacts, Male, Rubber, Vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug
Catalog Number
E1017-95
Product Length/Depth
7 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
4.16 lb
UPC
662275842299
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Cable size
250 kcmil
Amperage Rating
Up to 340A Continuous
Voltage rating
600 Vac/dc
Material
Rubber
Type
Vulcanized
Connection type
Crimp
Gender
Male
Color
White
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 94 - Cam-Lok E1017, E1019 and E1023 Connectors
Eaton Specification Sheet - E1017-95
High current rating up to 340 A continuous with 250 kcmil conductors enables larger feeders and reduces the number of interconnects required. This minimizes potential failure points and reduces installation time. Ideal for motor control centers, pumps, and heavy automation lines in manufacturing environments. Durable vulcanized rubber housing and brass contacts provide reliable performance in washdown and harsh environments, improving ingress protection and reducing maintenance cycles. The crimp termination with brass contacts offers low-resistance, repeatable connections, delivering faster on-site terminations and consistent electrical performance for field service and panel building. The 600 Vac/dc rating paired with NEC/CEC compliance supports cross-system use while maintaining safety in industrial power networks. Compatibility with Cam-Lok J Series and single-pole plugs enables quick, safe mating and disconnection, reducing downtime during equipment changes and service events. This combination of robust construction and proven interconnect design helps control panel builders meet customer SLAs and industry standards in diverse automation applications.
Get a Quick Quote for a Eaton Crouse-Hinds E1017-95
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1017-95?
Enquire Now
FAQs
The E1017-95 uses a crimp termination with brass contacts and is designed for Cam-Lok J Series receptacles. It is a male plug in white vulcanized rubber, compatible with 250 kcmil conductors up to 340 A continuous. Follow the installation guidance in EB 94 and use proper crimp tooling to ensure repeatable, high-integrity terminations in panel assemblies.
The E1017-95 supports up to 340 A continuous and 250 kcmil cables. It is rated for 600 Vac/dc, making it suitable for both AC and DC power distribution in industrial environments. Brass contacts and crimp termination provide low-resistance connections essential for reliable high-current operation.
Best suited for motor control centers, heavy automation lines, pumps, conveyors, and other high-current feeder circuits in manufacturing and processing plants. Its NEMA 4 rating and ordinary/non-hazardous area classification make it appropriate for washdown zones and non-hazardous locations, while maintaining compatibility with Cam-Lok J Series components.
The E1017-95 adheres to NEC/CEC standards and carries a NEMA 4 enclosure rating, providing weather and moisture resistance. It is certified for ordinary/non-hazardous locations, facilitating compliance in typical industrial environments and simplifying procurement for regulated projects.
Crimp brass contact terminations deliver reliable, low-resistance connections with repeatable performance, reducing maintenance calls due to loose or corroded terminations. The rugged vulcanized rubber housing withstands washdown and harsh environments, decreasing replacement cycles and downtime, while enabling faster field service and installation for a favorable total cost of ownership.
