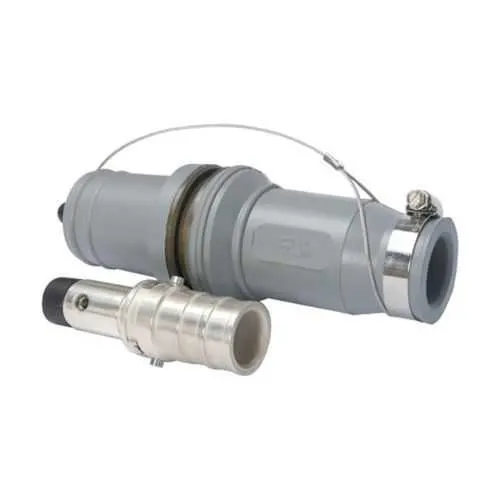

Eaton Crouse-Hinds E1049-1 Roughneck Plug - 1000 Vac
Part Number: E1049-1
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug is a high-amperage power connector for rugged industrial wiring applications. Operators often struggle with reliable, high-current terminations in vibration-prone or harsh environments; this plug is designed to address those challenges with durable rubber housing and copper contacts. It meets NEC/CEC standards and carries a NEMA Rating of 3 for outdoor or non-hazardous locations, providing dependable performance across plant floors and outdoor installations. With support for large-diameter cables and a straightforward field termination option, this connector delivers measurable business value through reduced downtime, improved safety, and scalable power distribution for motor feeders and other heavy-load equipment.
Product Information
Extended Description
E1049-1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Black, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-1
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275135766
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-1
Feature: Amperage rating up to 898 A continuous. Business Impact: Supports large motors and feeders without frequent re-termination, driving lower fuse counts and reduced panel space. Application: Motor control centers and heavy-load feeders in manufacturing lines. Feature: Cable size up to 535 kcmil. Business Impact: Enables bulk conductor runs with fewer terminations, improving reliability and simplifying installation planning. Application: Primary feeders and high-current power distribution. Feature: Copper contacts in a rugged rubber housing. Business Impact: Delivers secure, low-resistance connections resistant to corrosion and dirt, reducing contact resistance and heat buildup. Application: Harsh plant environments with moisture and dust exposure. Feature: Connection options hexagon crimp or solder. Business Impact: Flexible field termination supports tight spaces and on-site adaptations, lowering installation time. Application: On-site wiring where crimp tools or soldering capabilities vary. Feature: Compliance and protection (NEC/CEC, NEMA 3, Ordinary/Non-Hazardous). Business Impact: Ensures regulatory alignment and outdoor durability, minimizing compliance risk and maintenance costs. Application: Plant-wide deployment in non-hazardous areas with outdoor exposure. Additional details: Product length 8.5 in, width 2.16 in, height 2.16 in, weight 5.5 lb, compatibility with Roughneck family, and copper-contact construction support long-term reliability and ease of integration into new or refurbished power systems.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-1?
Enquire Now
FAQs
The E1049-1 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It uses a rubber housing with copper contacts and supports hexagon crimp or solder terminations, making it compatible with standard motor feeders and large-diameter cables up to 535 kcmil.
This plug supports up to 898 A continuous and accepts cables up to 535 kcmil. This combination enables direct, high-current connections to large motors and feeders, reducing the need for multiple splices and terminations.
Yes. It carries a NEMA 3 rating for weather resistance and is compatible with NEC/CEC standards. The area classification is Ordinary/Non-Hazardous Locations, making it suitable for many plant environments without special hazardous-location restrictions.
Hexagon crimp or solder terminations provide flexibility in the field, allowing technicians to adapt to space constraints and tool availability. Copper contacts ensure reliable current flow, while the rubber housing protects against moisture and contamination.
The Roughneck E1049-1 delivers reliable, high-current terminations that reduce downtime from failed connections and minimize maintenance due to corrosion or vibration. Its robust construction supports longer service life and faster installations in motor feeders and high-capacity distribution networks.
