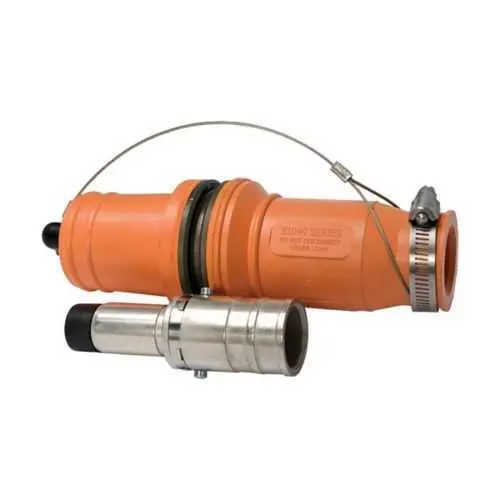

Eaton E1049-11 Roughneck plug - 1000 Vac/dc
Part Number: E1049-11
Quick Summary
The Eaton E1049-11 Roughneck plug is a high-amperage connector for heavy-duty electrical assemblies in power distribution. Engineers often struggle with reliable, field-terminable connections at large conductor sizes, where vibration and space constraints complicate maintenance. It meets NEC/CEC standards, carries a NEMA 3 rating, and is suitable for Ordinary/Non-Hazardous Locations, supporting rugged industrial use. The design accommodates up to 646 kcmil copper conductors with hexagon crimp or solder termination, delivering durable, field-serviceable connections. This combination of performance and reliability translates into reduced downtime, streamlined installation, and long-term cost savings for facilities and panel builders.
Product Information
Extended Description
E1049-11 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Black, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-11
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275135773
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-11
High-current capability enables direct connections to large motors and feeders, reducing splice points and contact resistance, which translates into improved efficiency and reduced maintenance in motor control and power distribution applications. The E1049-11 accepts up to 646 kcmil copper conductors, allowing heavier feeders to be connected without multiple parallel runs, decreasing enclosure footprint and material costs in industrial plants. The hexagon crimp or solder termination provides field-installable flexibility, supporting quick replacements or upgrades in crowded control panels and remote installations while maintaining a robust electrical path. With a rubber housing and copper contacts, the plug offers superior durability and low resistance under vibration, moisture, and temperature variations common in manufacturing floors. Rated for 1000 Vac/dc and built to Ordinary/Non-Hazardous Locations, it delivers reliable performance in non-hazardous environments, reducing total cost of ownership for rugged power connections.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-11
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-11?
Enquire Now
FAQs
The E1049-11 is rated for up to 1009A continuous, enabling direct high-current connections to large motors and feeders. This reduces the need for multiple splices, lowers contact resistance, and simplifies panel design in motor control centers and heavy power distribution applications.
It supports up to 646 kcmil copper conductors, allowing large feeders to be connected with a single, robust termination. This capability minimizes parallel runs and simplifies installation in demanding industrial environments.
No. The device is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC requirements. It should not be used in environments classified as hazardous where additional safety ratings are required.
Termination can be performed via hexagon crimp or solder methods, providing field-installable flexibility. This enables rapid replacements or upgrades in crowded control panels while maintaining a solid electrical connection.
The E1049-11 adheres to NEC/CEC standards, carries a NEMA 3 rating, and is appropriate for Ordinary/Non-Hazardous Locations. These certifications support compliance in general industrial facilities and non-hazardous environments.
