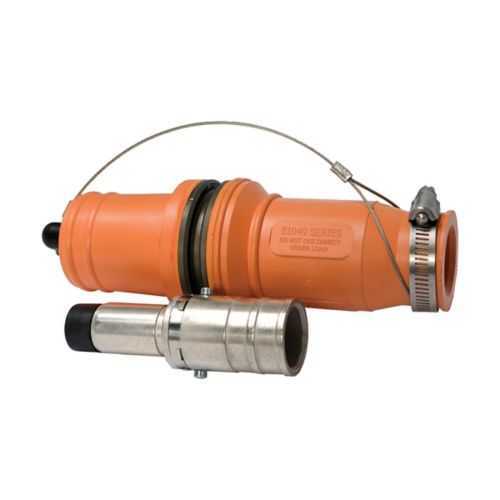

Eaton Crouse-Hinds E1049-13 Plug - NEMA 3 / 1000 Vac
Part Number: E1049-13
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug is a high-amperage connector designed for rugged, industrial power distribution in harsh environments. Installers often face reliability challenges when terminating large cables under vibration or exposure to moisture, risking downtime and rework. This plug is engineered to NEC/CEC compliant practices with a NEMA 3 rating for ordinary/non-hazardous locations, delivering robust performance in demanding settings. Built with copper contacts in a rubber housing and offering hexagon crimp or solder termination, it supports up to 646 kcmil cables and continuous current up to 1009 A, while preserving quick, secure assemblies and long-term reliability for critical equipment fleets. In practice, it enables safer, faster installs with predictable electrical performance across heavy-duty applications.
Product Information
Extended Description
E1049-13 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Red, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-13
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275135797
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Red
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-13
High amperage, large-cable capability → Enables up to 1009 A continuous service, reducing cabinet penetrations and improving overall system reliability in heavy-load tools and machines. This translates to fewer field failures and lower maintenance costs, particularly in mining, steel, and process industries. 646 kcmil copper contacts → Ensures low contact resistance and durable conductivity, improving voltage drop control and efficiency on long runs. Hexagon crimp or solder connection → Provides flexible field termination options, speeding up installation and enabling on-site adjustments without specialized tooling, which minimizes downtime. Rubber housing with red color → Delivers rugged environmental resistance and high-visibility identification for quick diagnostics in busy facilities, supporting safer maintenance and faster fault isolation. 1000 Vac/dc rating → Supports mixed AC/DC applications with a single connector family, simplifying spare part inventories and reducing the risk of mis-match during panel wiring. Ordinary/Non-Hazardous area classification and NEMA 3 rating → Guarantees suitability for standard industrial environments, helping procurement and compliance teams meet NEC/CEC requirements without over-specifying for hazardous locations. Overall, the Roughneck E1049-13 integrates robust electrical performance with straightforward installation, enabling more reliable power distribution in demanding industrial settings.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-13?
Enquire Now
FAQs
Installers should follow the IF 1777 and IF 1778 instruction sheets for Roughneck E1049 series connectors. Use hexagon crimp tooling for copper conductors up to 646 kcmil, or opt for solder terminations where field conditions limit crimping equipment. Verify proper sealing and tensile relief, then test continuity and insulation resistance per NEC guidelines to ensure a safer, compliant connection.
The E1049-13 is designed for 646 kcmil copper conductors and supports a continuous current rating up to 1009 A. This makes it suitable for high-load feeders and large-diameter power conductors in heavy equipment, while maintaining robust contact integrity and low resistance in demanding industrial environments.
No. The E1049-13 is rated for Ordinary/Non-Hazardous Locations with a NEMA 3 enclosure rating. It is designed to meet NEC/CEC standards for standard industrial facilities and should not be used in classified hazardous areas unless a different, certified product is specified.
The E1049-13 adheres to NEC/CEC standards and carries a NEMA Rating of 3 for enclosure protection. It is designed for use in ordinary locations, aligning with common industrial codes and ensuring safe, compliant operation within typical plant environments.
The E1049-13 combines a copper contact design with hex crimp or solder options, reducing installation time and rework while delivering reliable, long-lasting terminations. Its up-to-date rating (up to 1009 A, 646 kcmil, 1000 Vac/dc) means fewer spares and maintenance interruptions, contributing to improved uptime and lower total cost of ownership for heavy electrical distribution networks.
