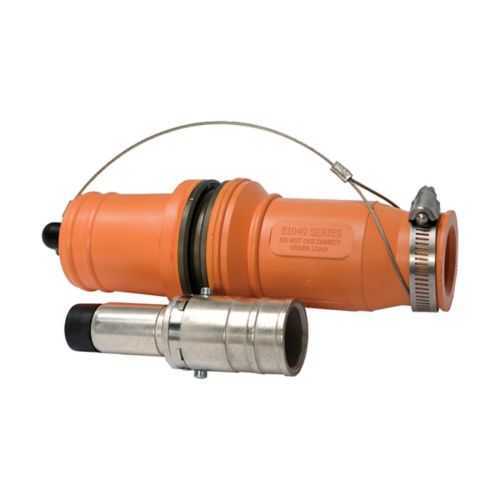

Eaton Crouse-Hinds E1049-15 plug - NEC/CEC rating
Part Number: E1049-15
Quick Summary
The Eaton Crouse-Hinds E1049-15 plug enables rugged, high-current connections for Roughneck power distribution in industrial facilities. Field technicians often contend with slow terminations, overheating, and unreliable seals under heavy loads; this plug’s durable rubber housing and flexible termination reduce downtime and rework. It carries NEC/CEC compliance and a NEMA 3 rating, and is approved for Ordinary/Non-Hazardous Locations, ensuring safe, compliant operation in typical plant spaces. Together with 646 kcmil wire compatibility and up to 1009 A continuous rating, the E1049-15 supports faster installations and lower long-term maintenance costs. Its green, rubber construction resists moisture ingress in challenging environments.
Product Information
Extended Description
E1049-15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Green, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-15
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275135810
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-15
High amperage capability up to 1009A continuous enables users to consolidate multiple splices into a single connector, reducing panel space and installation steps. This translates to faster energizations, lower labor costs, and improved equipment reliability in heavy-load feeders such as motors and presses. The 646 kcmil cable size compatibility supports large power feeders, minimizing the need for auxiliary adapters and improving wiring density in control rooms and junction boxes. With a 1000 Vac/dc rating, the plug supports both AC and DC applications while maintaining regulatory compliance for industrial plants. Hexagon crimp or solder termination options provide installation flexibility, reducing tool requirements and enabling field terminations in constrained environments. The rubber housing and copper contacts deliver durable performance, corrosion resistance, and low contact resistance, supporting long service life in Roughneck-grade connectors. Compliance with NEC/CEC and NEMA 3, plus Ordinary/Non-Hazardous area classification, eases procurement and ensures safe operation across typical plant spaces. These features make Roughneck high-amperage plugs ideal for heavy-load power distribution with fewer parts and faster commissioning. Compatible with Roughneck series, they streamline design reviews and spare-part inventories, improving overall project ROI.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-15?
Enquire Now
FAQs
The E1049-15 supports hexagon crimp or solder terminations and uses a rubber housing with copper contacts, designed for quick, secure field terminations. Use appropriate crimp tooling for 646 kcmil conductors and follow IF 1777 installation sheets to ensure compliant, leak-tight connections and robust mechanical integrity.
The plug is rated up to 1009A continuous and supports 1000 Vac/dc. It accepts 646 kcmil conductors, providing high-current capability suitable for large feeders and heavy machinery in non-hazardous locations.
Yes. The E1049-15 is designed for NEC/CEC compliance with a NEMA 3 rating and is intended for Ordinary/Non-Hazardous Locations. This makes it appropriate for standard industrial environments where reliable high-current connectors are required.
The E1049-15 supports 646 kcmil cable, enabling large-diameter feeder connections. This reduces the number of splices and connectors required in power distribution runs, improving reliability and simplifying wiring schematics.
Yes, the E1049-15 is part of the Roughneck family of high-amperage plugs and connectors. It uses hexagon crimp or solder termination for robust field connections and is designed for easy field servicing in green rubber housing to aid identification and maintenance.
