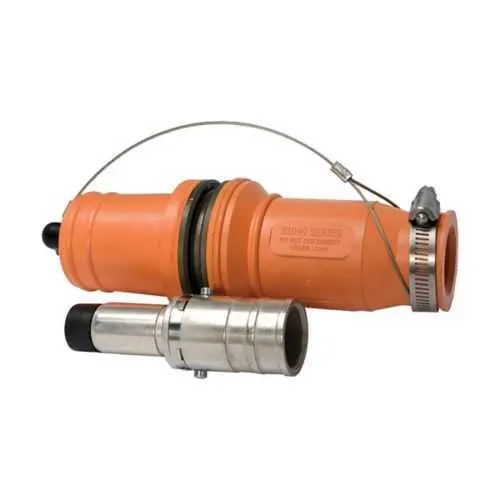

Eaton Crouse-Hinds E1049-17 Plug NEMA 3, 1000 Vac
Part Number: E1049-17
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug is a high-current electrical connector designed for rugged industrial power distribution. Maintenance teams often struggle with durable, reliable plugs that can terminate large conductors and withstand harsh environments. It meets NEC/CEC standards, carries a NEMA 3 rating for outdoor protection, and is suitable for ordinary/non-hazardous locations. With rubber housing, copper contacts, and hexagon crimp or solder termination, it delivers dependable performance and longer service life. Designed for up to 646 kcmil copper conductors and up to 1009 A continuous, it supports fast installation, regulatory compliance, and lower lifecycle costs in industrial facilities, helping projects stay on schedule and within budget.
Product Information
Extended Description
E1049-17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-17
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275135834
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-17
High amperage capability: The E1049-17 is rated for up to 1009A continuous, enabling single connections for large drives and feeders. This reduces the need for multiple terminations and minimizes potential points of failure, improving overall plant reliability and speeding up commissioning. Application-wise, it’s well-suited for heavy motors and power feeders in manufacturing environments. Large conductor compatibility: It accepts 646 kcmil copper conductors with copper contacts, providing robust current transfer and low resistance at high currents. The result is reduced voltage drop and better thermal performance in demanding installations, such as hoisting systems or high-load conveyors. Application contexts include motor control centers and ship-bottom power distribution where space and performance matter. Voltage resilience: Rated for 1000 Vac/dc, this plug supports mixed AC/DC systems without needing adapters, streamlining inventory and maintenance planning. The business impact is safer operation and fewer part substitutions across mixed-application sites. It’s particularly beneficial in process lines and outdoor controls that run on both AC and DC feeds. Versatile termination: Hexagon crimp or solder terminations offer field-friendly assembly with standard tooling, which cuts training time and accelerates startup. This reduces downtime during upgrades or relocations and improves technician productivity. Application scenarios include field-installable spares and retrofit projects where fast, reliable joins are critical. Rugged housing and protective features: Rubber housing with a blue finish provides oil resistance, abrasion protection, and quick visual identification, enhancing uptime in harsh environments. The NEMA 3 rating and ordinary/non-hazardous location suitability further ensure dependable outdoor performance and easier regulatory compliance. These attributes support long service life, predictable maintenance cycles, and lower total cost of ownership in industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-17?
Enquire Now
FAQs
For field installs, verify cable preparation is clean and free of insulation damage. Use the hexagon crimp or solder termination per the IF1778 instruction sheets. Ensure mating components are aligned and engage securely to achieve full current rating. Follow the manufacturer’s installation guidelines to maintain the NEMA 3 enclosure protection and ensure a reliable, code-compliant connection.
The E1049-17 supports up to 1009A continuous and 1000 Vac/dc, with copper contacts and rubber housing designed for durable operation in ordinary/non-hazardous locations. In such environments, it delivers dependable current transfer with reduced heating and voltage drop, minimizing maintenance needs and enhancing system reliability.
Yes. The connector carries a NEMA 3 rating for outdoor protection and is specified for ordinary/non-hazardous locations, making it appropriate for outdoor power distribution and non-hazardous industrial areas where weather resistance and rugged construction are required.
The E1049-17 aligns with NEC/CEC standards and features a NEMA 3 enclosure rating. This combination supports compliant installation in non-hazardous areas and provides confidence for projects requiring recognized electrical codes and outdoor protection.
The rugged rubber housing, copper contacts, and 646 kcmil conductor compatibility enable robust, long-lasting connections with fewer maintenance events. The option for hex crimp or solder terminations simplifies field servicing, reduces downtime during upgrades, and lowers total cost of ownership by reducing rework and part substitutions.
