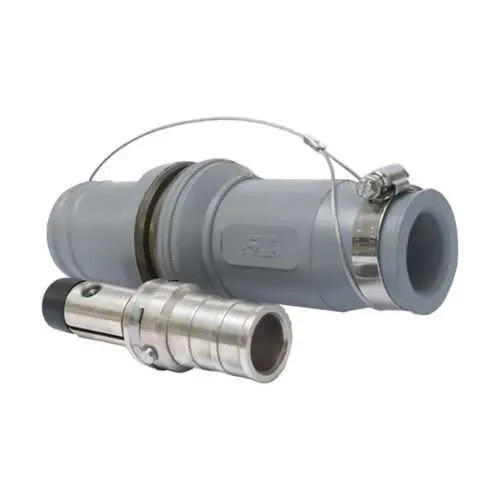

Eaton Crouse-Hinds E1049-206 Plug - 1000 Vac/dc
Part Number: E1049-206
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049-206 plug is a high-amperage connector for rugged industrial power distribution. Engineers often battle unreliable high-current connections in harsh environments, leading to downtime and maintenance costs. It carries NEC/CEC compliance, NEMA Rating 3 protection, and ordinary/non-hazardous area classification, supporting safe, code-compliant installations. With up to 796 A continuous and 444 kcmil cable, plus hex-crimp or solder terminations, this plug boosts uptime and simplifies field service while aligning with industry safety and reliability requirements for heavy equipment and power feeders.
Product Information
Extended Description
E1049-206 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, White, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-206
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275913654
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-206
High amperage rating up to 796 A continuous reduces the number of connections needed and minimizes resistance across long runs, translating to lower maintenance costs and improved motor efficiency in demanding applications such as mining or heavy manufacturing. This capability enables you to deploy large conductors (444 kcmil) without compromising performance, cutting material costs and simplifying wiring schematics on power feeders. The 1000 Vac/dc rating provides versatility for both AC and DC systems, enabling broader deployment in equipment drives and control panels while preserving safety margins in high‑voltage environments. Hexagon crimp or solder termination offers installers flexible field options, reducing downtime and the need for specialty tooling. Rubber housing and copper contacts enhance durability and conductive reliability in ordinary locations, supporting consistent performance in everyday industrial operations. Compliance with NEC/CEC and NEMA 3 ratings reinforces safe, code‑compliant installations across non-hazardous spaces, helping maintenance teams meet strict regulatory requirements while delivering long‑term ROI.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-206
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-206?
Enquire Now
FAQs
Installation begins with selecting 444 kcmil conductors and preparing the copper ends for termination. Choose hexagon crimp or solder termination per on-site requirements, then secure the conductors into the plug housing. Ensure the rubber body is clean and seated properly to maintain a tight seal. Follow the IF1777/IF1778 instructions for step‑by‑step guidelines and verify polarity and fit before energizing the circuit.
The E1049-206 supports up to 796 A continuous and a voltage rating of 1000 Vac/dc. It uses copper contacts and is designed for 444 kcmil conductors, accommodating high‑current, dual‑voltage applications in industrial environments.
Yes. The product is rated for Ordinary/Non-Hazardous Locations (area classification) and complies with NEC/CEC standards, with a NEMA 3 rating for outdoor or partly protected installations, making it appropriate for non-hazardous industrial spaces such as standard motor feeders and equipment enclosures.
Industry resources include the Roughneck brochure, catalog page, and installation instructions IF 1777 (IF 1777 and IF 1778 sheets). A dedicated specification sheet is also available to guide selection, wiring, and termination procedures for reliable field use.
By enabling up to 796 A with large 444 kcmil conductors and flexible hex crimp or solder terminations, the E1049-206 reduces connector count, lowers resistance losses, and minimizes downtime. Its rugged rubber housing and copper contacts improve reliability in ordinary locations, supporting safer, code‑compliant installations and a stronger return on investment over equipment life cycles.
