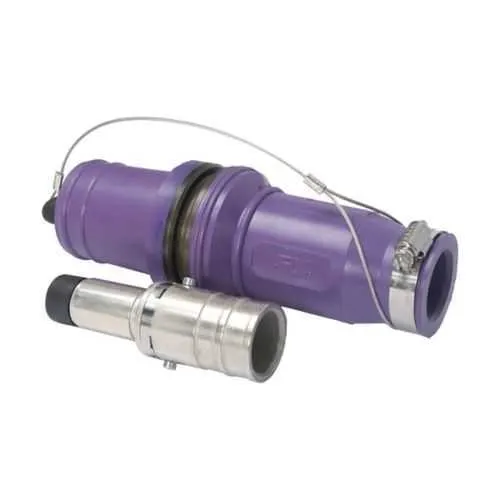

Eaton Crouse-Hinds Roughneck E1049 plug - 1000 Vac/dc
Part Number: E1049-22
Quick Summary
Roughneck E1049 plug provides high-current connection for industrial power distribution and motor control applications. Engineers face reliability and safety challenges when terminating large conductor runs in harsh environments; this plug is designed to deliver robust field terminations with fewer reworks. The solution aligns with NEC/CEC standards, NEMA 3 protection, and Ordinary/Non-Hazardous Locations classifications, ensuring compliance across typical industrial sites. By combining a rugged rubber housing, copper contacts, and a clear termination path, it supports quick installations and longer service life. This makes it a practical choice for power feeders and high-amperage connections in manufacturing, processing, and utility environments, while also streamlining procurement with a single, versatile solution for roughneck applications.
Product Information
Extended Description
E1049-22 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-22
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136244
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-22
Feature: High amperage capability up to 1135A continuous with a 777 kcmil cable size. Business impact: Supports large-diameter feeders without paralleling components, reducing enclosure crowding and labor costs during installation. Application: Ideal for main power feeds to large motors in metalworking or plastics processing facilities. Feature: Voltage rating of 1000 Vac/dc with copper contacts. Business impact: Improves conductivity and mitigates voltage drop, enhancing overall system efficiency and safety. Application: Used in high-demand distribution panels and control cabinets where reliable power delivery is critical. Feature: Rubber housing in yellow with a male gender configuration. Business impact: Durable weather and chemical resistance with high visibility for quick identification during maintenance. Application: Suitable for outdoor or facility-floor installations in ordinary locations. Feature: Connection type supports hexagon crimp or solder terminations. Business impact: Offers flexible field termination options, reducing downtime and training needs for technicians. Application: Installation teams can choose the most efficient method on site. Feature: Compact physical footprint—8.5 in length, 2.16 in width and height, 5.5 lb weight. Business impact: Easier routing through crowded panels and favorable weight for handling during installation. Application: Deployable in control rooms and equipment housings with restricted space. Feature: Compliance and standards alignment NEC/CEC, NEMA Rating 3, and Ordinary/Non-Hazardous Locations classification. Business impact: Streamlines approvals and reduces compliance risk for your project. Application: Peace of mind for industrial facilities requiring standard-compliant, rugged connectors. Feature: Documentation and resources available—IF 1777/IF 1778 installation sheets, catalogs, and specification sheets. Business impact: Accelerates onboarding and reduces misinterpretation of installation procedures. Application: Procurement and maintenance teams can rely on official guidance for reliable installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-22?
Enquire Now
FAQs
The E1049-22 supports hexagon crimp or solder terminations for 777 kcmil copper conductors, providing a robust and reliable field termination. This versatility helps technicians choose the fastest, most durable method on site while maintaining electrical integrity under heavy loads.
The connector is rated up to 1135A continuous and 1000 Vac/dc. This enables it to power large feeders and motor circuits without paralleling multiple connectors, reducing assembly time and potential points of failure.
It is designed for Ordinary/Non-Hazardous Locations, complies with NEC/CEC standards, has a NEMA Rating of 3, and features a rubber housing for environmental resilience, making it suitable for general industrial facilities and outdoor applications where splash and dust exposure occur.
Yes. Official resources include IF 1777/IF 1778 installation sheets, brochures, a catalog page, and Eaton specification sheets. These documents provide step-by-step termination guidance, wiring diagrams, and compatibility notes to minimize commissioning time and errors.
Plan for an 8.5 in length, 2.16 in width and height, and 5.5 lb weight. Ensure cable routing accommodates 777 kcmil conductors, and stock hexagon crimp or solder tooling compatible with copper contacts. Review the installation sheets for torque and termination details to avoid over-tightening or insufficient crimps.
