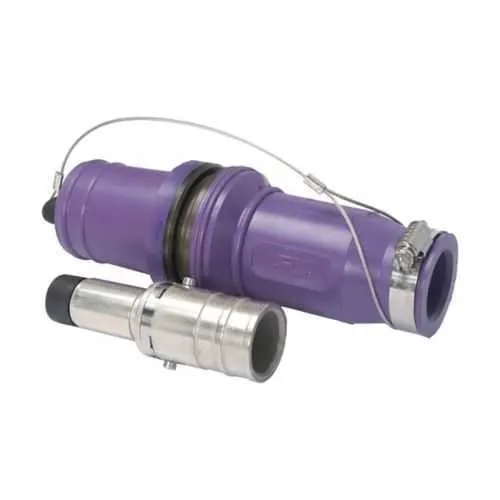

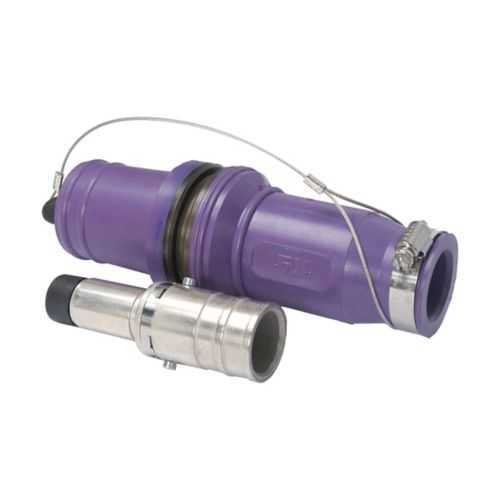

Eaton Crouse-Hinds E1049-25 Plug - 1000 Vac/dc
Part Number: E1049-25
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049-25 plug provides rugged high-amperage electrical connections for heavy-duty power distribution. Engineers and procurement teams often struggle with reliability and field-maintainability in harsh environments, and this plug delivers secure hex-crimp or solder connections housed in a durable rubber body. It is designed for ordinary/non-hazardous locations, supports NEC/CEC standards, and carries a NEMA 3 rating for outdoor service. By standardizing on this high-amperage connector, OEMs can reduce spare parts inventories, simplify training, and speed maintenance across demanding industries such as mining, steel production, and large-motor applications.
Product Information
Extended Description
E1049-25 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Green, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-25
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136275
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-25
Feature → High current capacity up to 1135 A continuous, with 777 kcmil cable size. Business Impact → Enables fewer parallel connections and smaller footprint in heavy current circuits, reducing overall wiring complexity and installation time. Application → Ideal for large motors, feeders, and rough-service power distribution where space and reliability matter. Feature → Copper contact material with rubber housing for durability. Business Impact → Improves contact reliability in vibratory or wet environments, lowering failure rates and maintenance costs. Application → Suitable for outdoor or damp locations in harsh industrial settings. Feature → Hexagon crimp or solder connection method. Business Impact → Provides flexible field assembly options, accelerating installation and facilitating field servicing. Application → Useful in retrofit projects and OEM assemblies requiring adaptable termination methods. Feature → Green color coding and robust NEMA 3 rated enclosure. Business Impact → Quick identification and compliant outdoor use, aiding safety and regulatory adherence. Application → Environments with exposure to weather, dust, and routine washdowns. Feature → 1000 Vac/dc voltage rating with rugged rubber body. Business Impact → Supports versatile power systems and reduces voltage-related failures. Application → Heavy-duty power distribution panels and industrial machinery.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-25?
Enquire Now
FAQs
Installing the E1049-25 involves selecting the appropriate 777 kcmil cable, preparing the conductor ends, and choosing either hexagon crimp or solder termination. For crimping, use a compatible hex crimp tool and standard crimping dies to achieve a secure, per‑system electrical connection. For solder, ensure proper heat application without damaging the rubber housing. Follow the installation sheet to prevent misalignment and ensure proper sealing, which preserves the NEMA 3 outdoor rating.
The E1049-25 is rated up to 1135 A continuous current and supports a voltage rating of 1000 Vac/dc. This combination enables reliable high‑current distribution for large motors and feeders while maintaining safe insulation and connector integrity in demanding industrial environments.
Yes. The connector supports Ordinary/Non-Hazardous Locations per its area classification and carries a NEMA 3 rating, making it appropriate for outdoor installations and environments where exposure to dust or moisture is possible. This helps ensure dependable operation in standard industrial settings without specialized hazardous-location compliance.
The E1049-25 adheres to NEC/CEC standards and is built for non-hazardous, ordinary locations. Its NEMA 3 rating and rugged construction align with typical industrial electrical practices, supporting safe and compliant operation in a broad range of machinery and power-distribution applications.
The plug’s copper contacts, rubber housing, and choice of hex-crimp or solder terminations offer durable, repair-friendly field connections with reduced corrosion risk. Its robust enclosure and outdoor-rated design minimize ingress-related failures, lowering downtime and maintenance costs while enabling faster replacements and standardized spares across facilities.
